Body Compartment

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

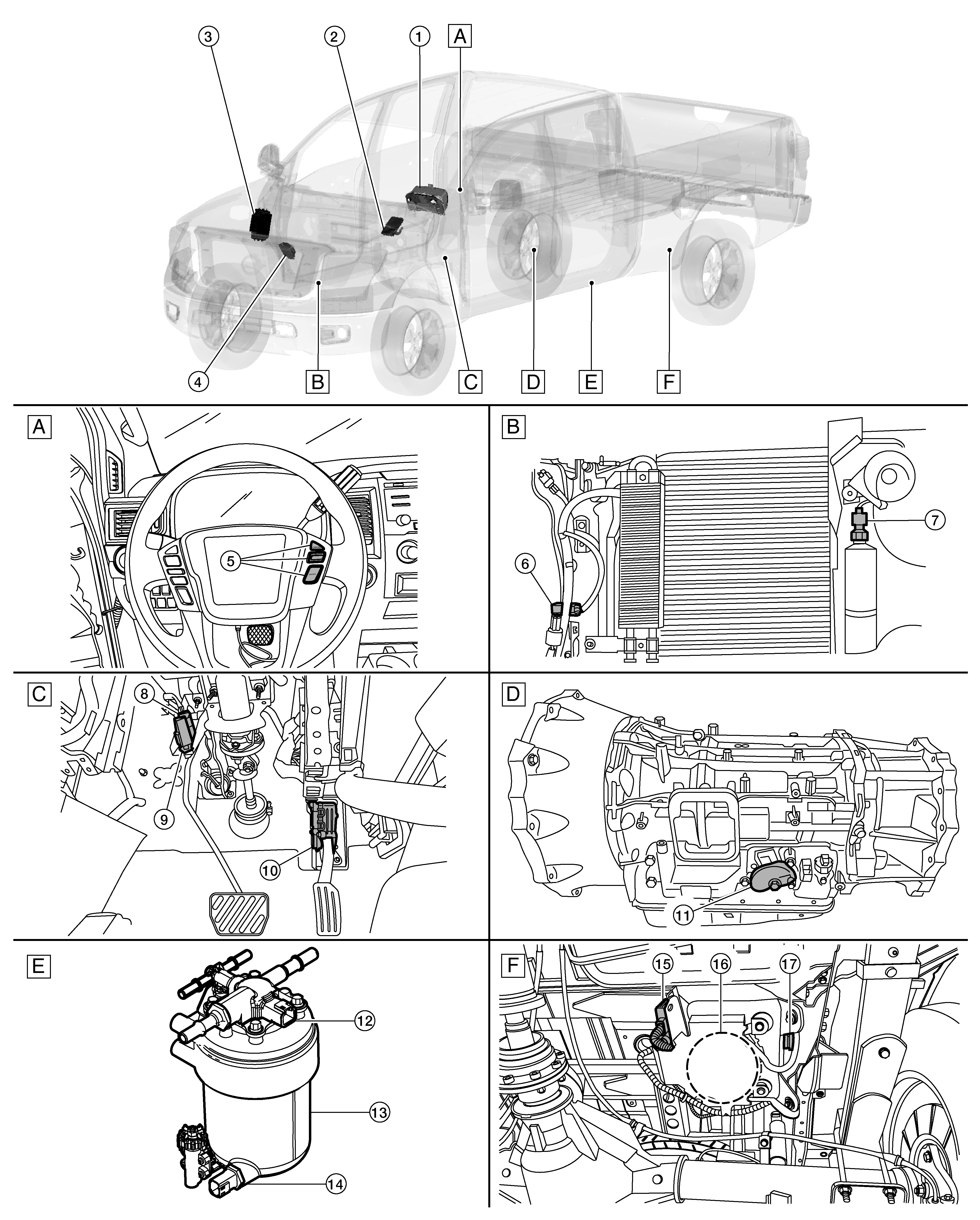

	Steering wheel		Behind front grille		Pedal periphery
	Transmission		Behind fuel tank		Left rear side under carriage

No.	Component	Function
	Combination meter	Mainly transmits the following signals to ECM via CAN communication. Vehicle speed A/C ON signal Blower fan ON signal Refer to Combination Meter (Type A) or Combination Meter (Type B) for detailed installation location.
	BCM	Mainly transmits the following signals to ECM via CAN communication. A/C ON signal Blower fan ON signal Refer to Removal and Installation .
	ECM	ECM
	TCM	Mainly transmits the following signal to ECM via electrical signal. Park/neutral signal Mainly transmits the following signal to ECM via CAN communication: Powertrain revolution Refer to TCM for detailed installation location.
	ASCD steering switch	ASCD Steering Switch
	Ambient air temperature sensor	Ambient Sensor
	Refrigerant pressure sensor	Refrigerant Pressure Sensor
	Stop lamp switch	Stop Lamp Switch/ASCD Cancel Switch
	Brake pedal position switch	Stop Lamp Switch/ASCD Cancel Switch
	Accelerator pedal position switch	Accelerator Pedal Position Sensor
	Transmission range switch	Transmission Range Switch
	Fuel pump	Fuel Pump Actuator
	Stage 1 filter assembly	Removal and Installation
	Water in fuel sensor	Water In Fuel Sensor
	DEF (diesel exhaust fluid) control module	DEF Control Module
	DEF (diesel exhaust fluid) dosing control module	DEF Supply Pump Assembly
	DEF (diesel exhaust fluid) quality sensor	DEF Quality Sensor
