Checking Reservoir Level

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

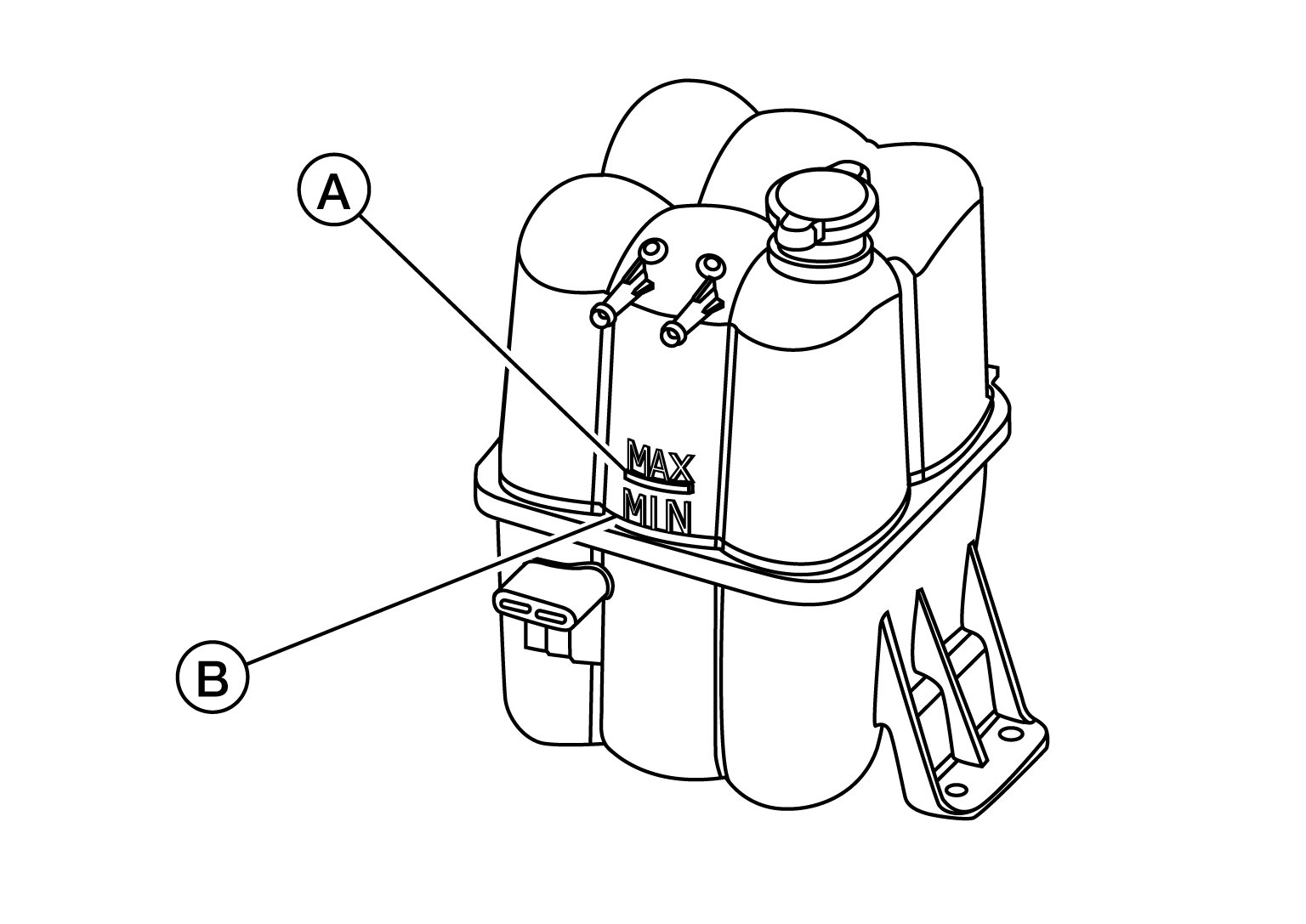

Check if the reservoir tank coolant level is within MIN to MAX when the engine is cool.

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	: MAX
(B)	: MIN

Adjust coolant level (if necessary), to ensure that the engine coolant level is within the MIN to MAX range.

CAUTION: Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality mixed with water (distilled or demineralized). Refer to Cummins 5.0L Engine : Fluids and Lubricants
