Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

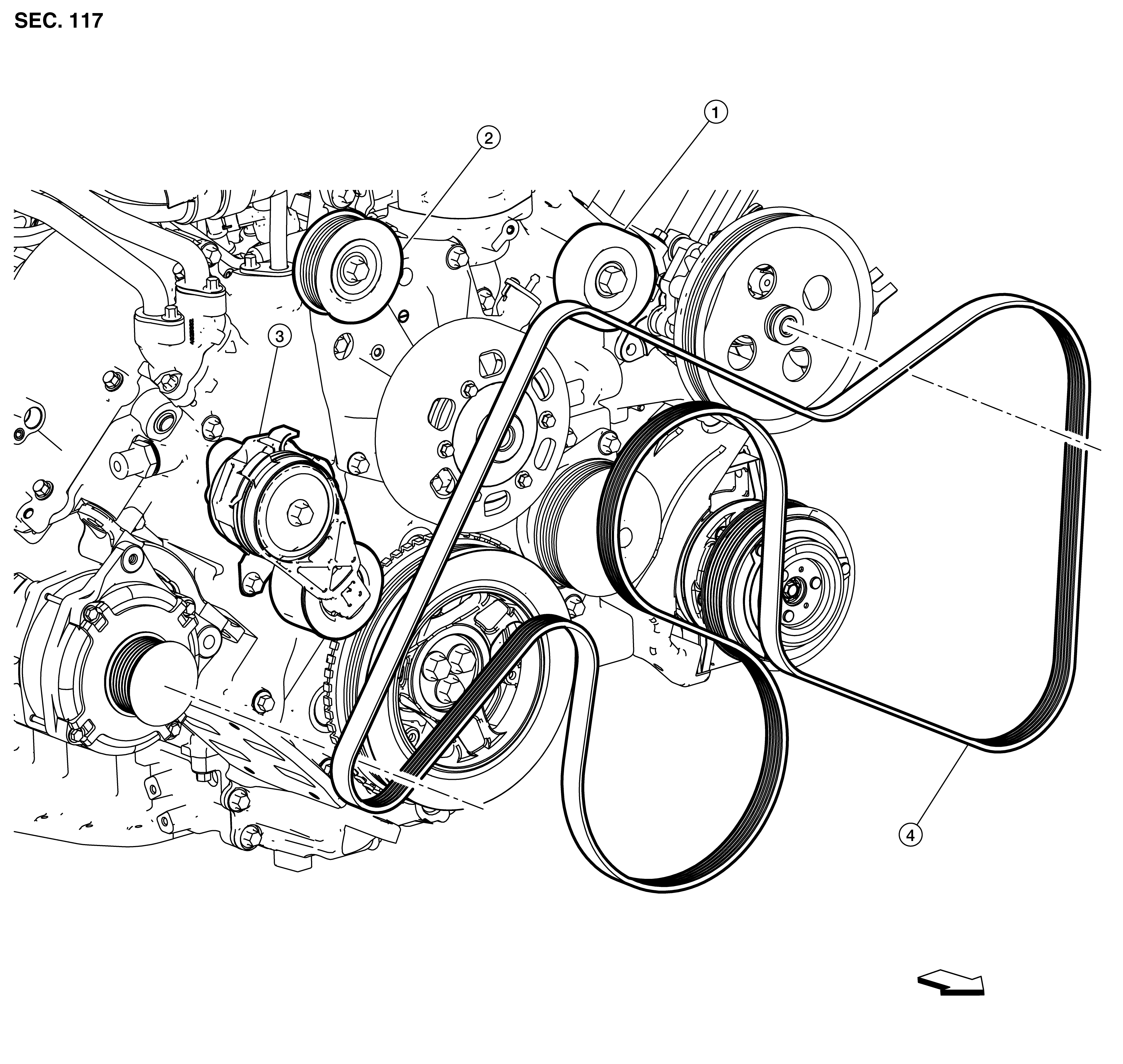

GNSALBIA2833Z-833Courtesy of NISSAN NORTH AMERICA, INC.

1.

Idler pulley

2.

Idler pulley

3.

Drive belt auto-tensioner

4.

Drive belt

SYMBOL

Front
