Fluid Level

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

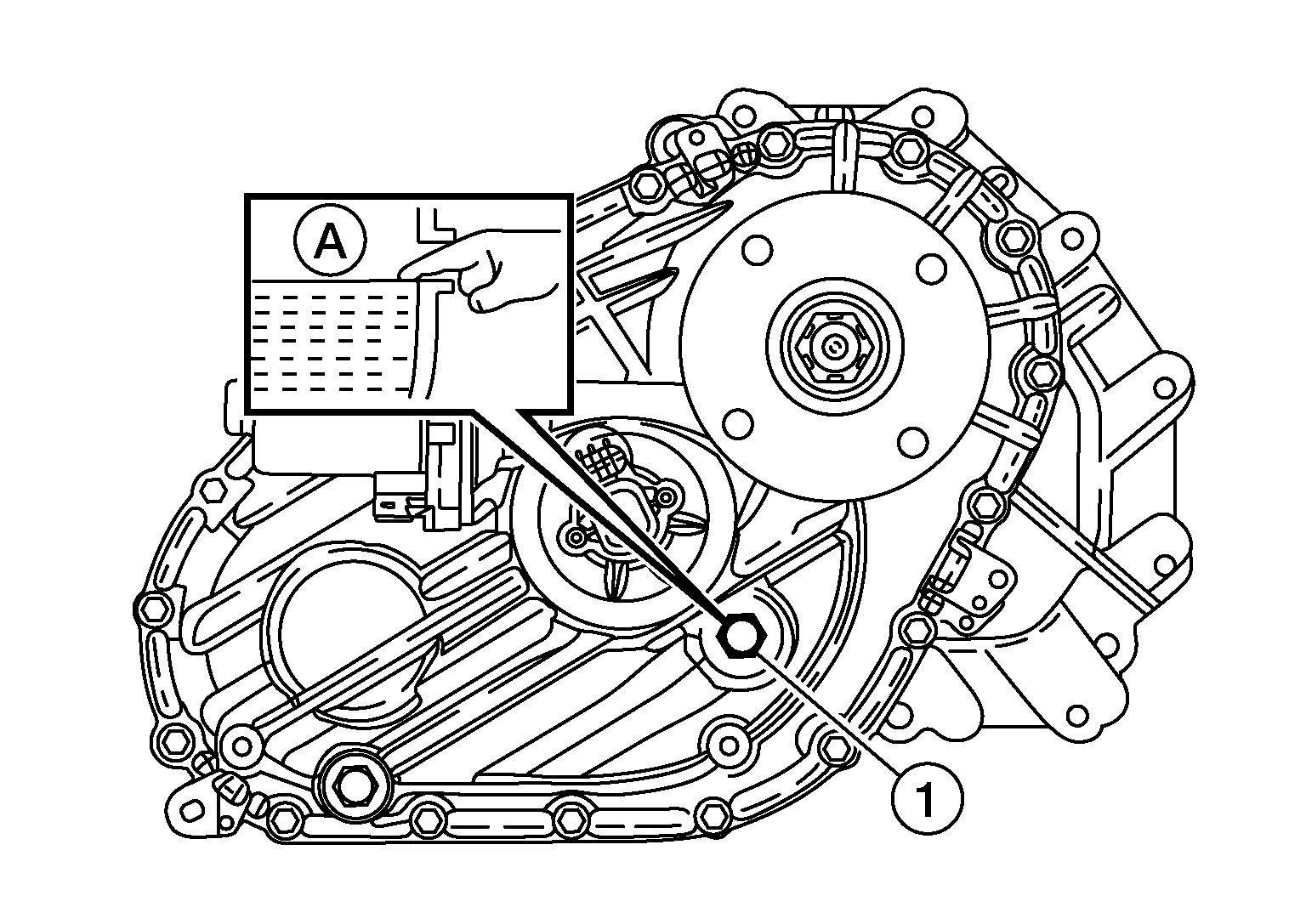

  1. Remove filler plug (1). Then check that fluid is filled from hole for the filler plug.
    GNSDB118186Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not start engine while checking fluid level.
  2. Transfer oil level (A) should be level with bottom of filler plug hole.
  3. Apply sealant to thread of filler plug (1), and install it on transfer and then tighten to the specified torque.
    CAUTION: Remove old sealant from thread of filler plug.

    Specified torque

    : 20.5 N.m (2.1 kg-m, 15 ft-lb)

    Sealant

    : Hylomar 102 silicone or equivalent
