Total Toe-In Inspection
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Measure the total toe-in using the following procedure:
WARNING:
- Always perform the following procedure on a flat surface.
- Make sure that no person is in front of vehicle before pushing it.
- Bounce the front of vehicle up and down to stabilize the vehicle height (posture).
- Push on the rear wheel to move the vehicle straight ahead about 5 m (16 ft).

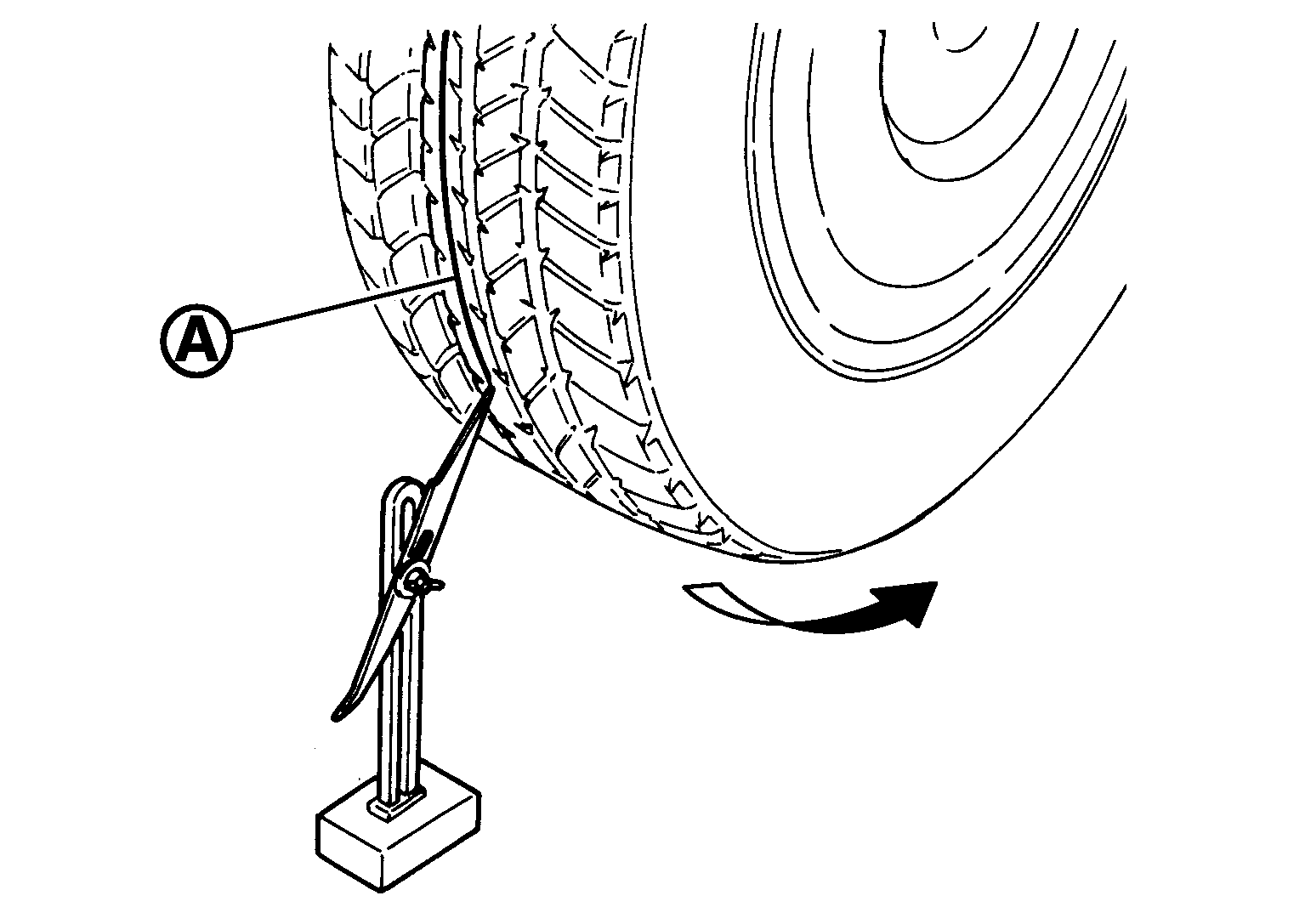

- Put a mark on the base line of the tread (rear side) of both tires at the same height of hub center. These are measuring points.

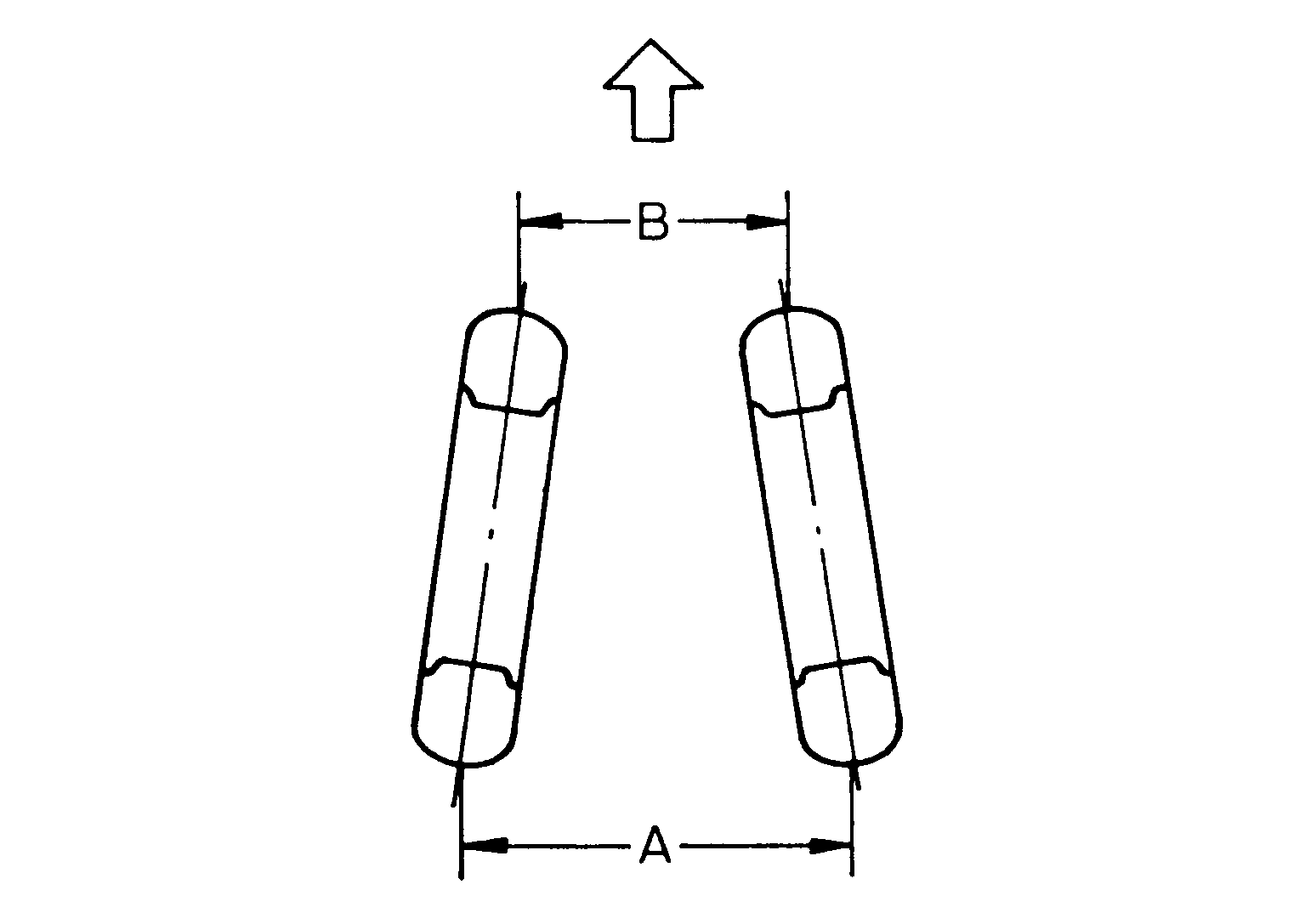

- Measure the distance (A) from the rear side.
: Front
- Push on the rear wheel to move the vehicle slowly ahead and to rotate the wheels 180 degrees (1/2 turn).CAUTION: If the wheels have rotated more than 180 degrees (1/2 turn), try the above procedure again from the beginning. Do not push vehicle backward.
- Measure the distance (B) from the front side.
- Use the formula below to calculate total toe-in.
Total toe-in formula
: A - B
Total toe-in specification
: Refer to Wheel Alignment (Unladen*1) .
- If the total toe-in is outside the specification, adjust the total toe-in. Refer to Adjustment .
