Brake Fluid Level

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

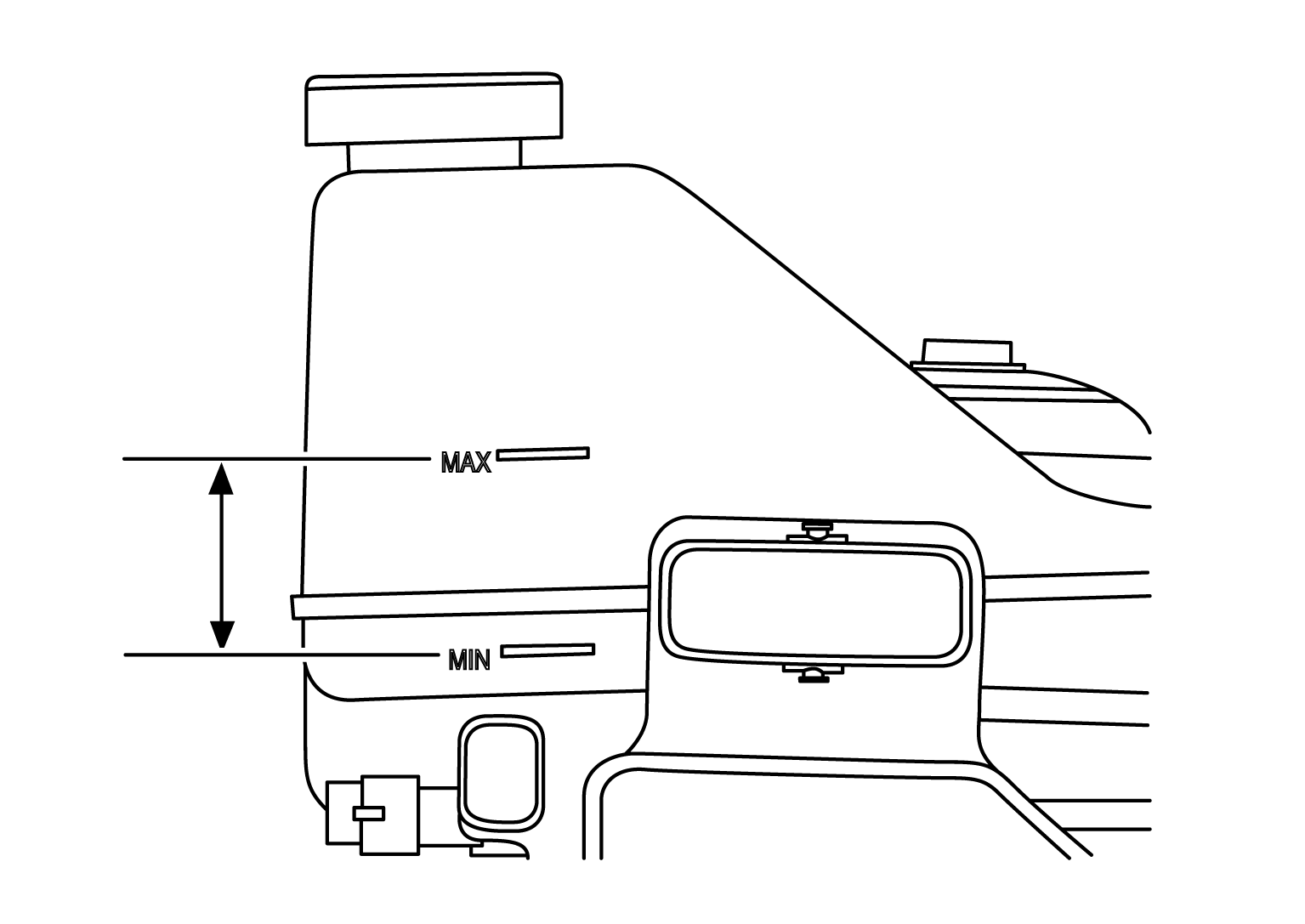

Make sure that the brake fluid level in the reservoir tank is between the MAX and MIN lines.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Since brake fluid is in the accumulator in pressurized condition, the reservoir tank brake fluid level should be lower than the MAX line.
Visually check around the reservoir tank for brake fluid leaks.
If the brake fluid level is excessively low, check the brake system for leaks.
If brake warning lamp remains illuminated after parking brake pedal is released, check the brake system for brake fluid leaks.
Check the reservoir tank for the mixing of foreign matter (e.g. dust) and oils other than brake fluid.
