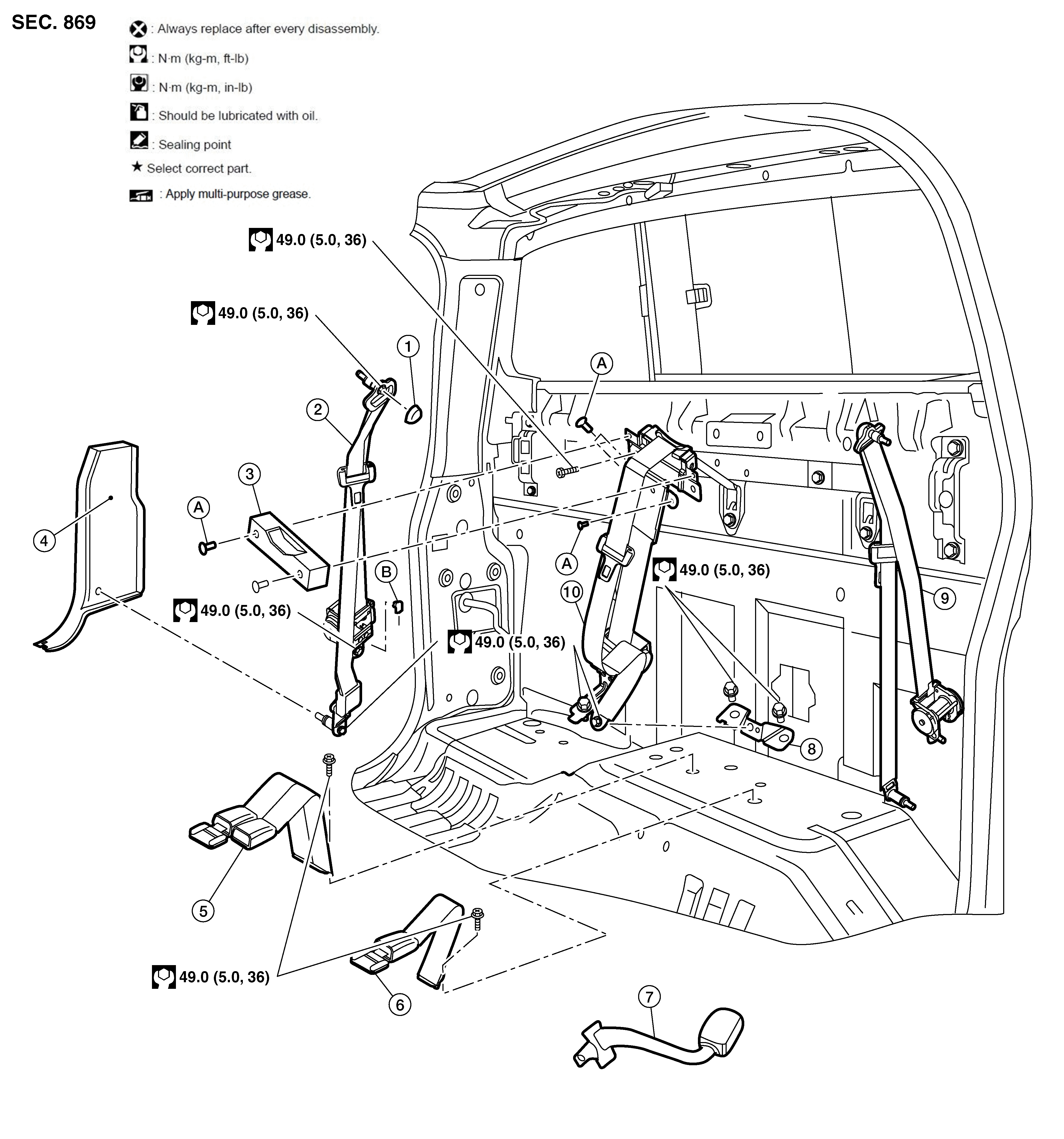

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
D-ring anchor bolt cover |
2. |
Seat belt retractor (RH) |
3. |
Center anchor bracket cover |
|
4. |
Rear pillar lower finisher |
5. |
Seat belt buckles (RH/center) |
6. |
Seat belt buckle (LH) |
|
7. |
Seat belt extender |
8. |
Center seat belt anchor bracket |
9. |
Seat belt retractor (LH) |
|
10. |
Center seat belt retractor |
A. |
Clip |
B. |
Seat belt retractor harness |
