Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

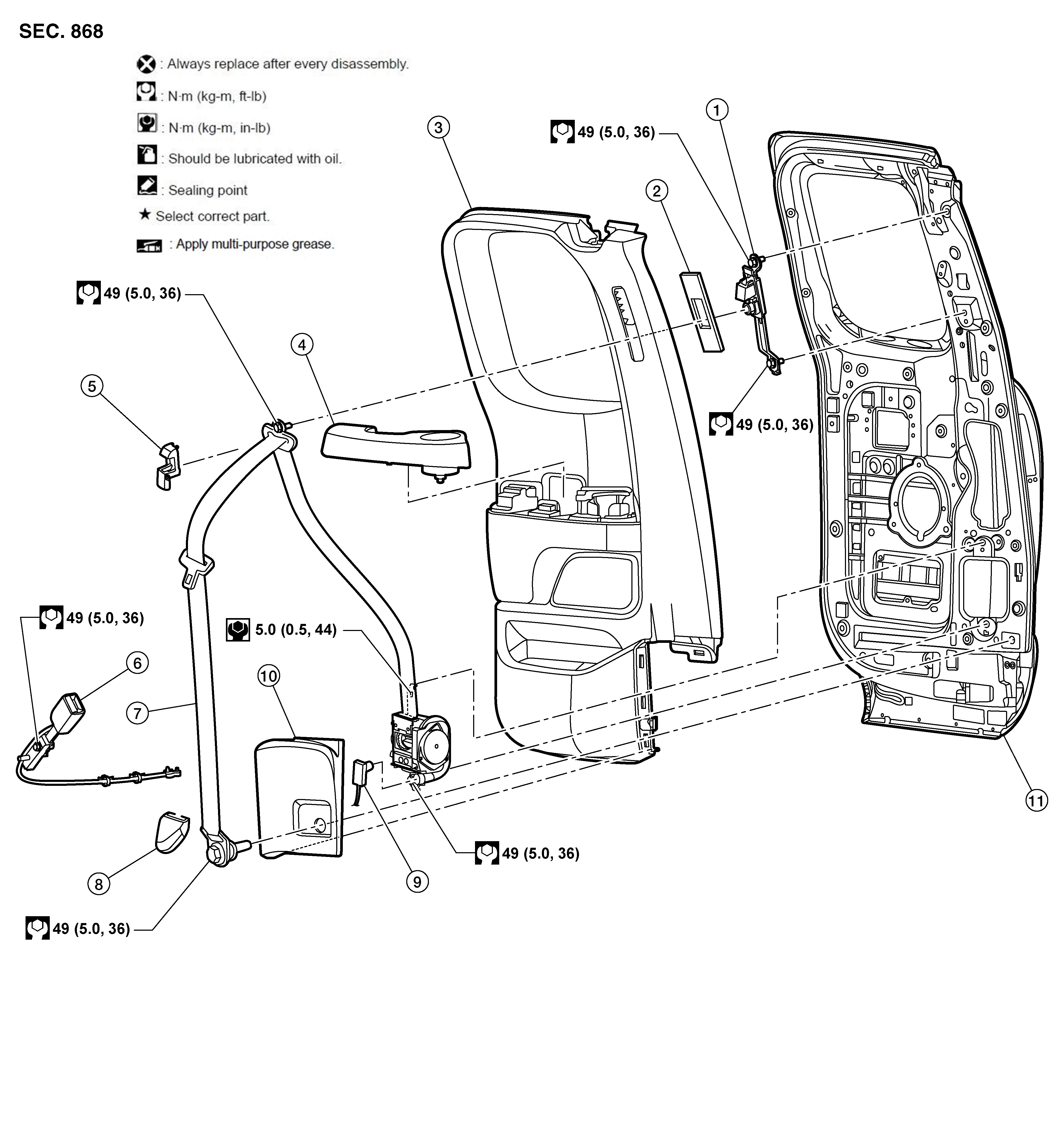

Fig 1: Front Seat Belt Without Center Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt height adjuster	2.	Seat belt height adjuster finisher	3.	Rear door finisher
4.	Armrest	5.	D-ring anchor bolt cover	6.	Seat belt buckle
7.	Seat belt retractor and belt assembly (LH)	8.	Anchor cover	9.	Seat belt pre-tensioner connector
10.	Seat belt retractor cover	11.	Rear door panel

Fig 2: Front Seat Belt With Center Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt guide	2.	Front seat (RH)	3.	D-ring anchor bolt cover (RH)
4.	Seat belt height adjuster (RH)	5.	Seat belt retractor (RH)	6.	Seat belt anchor bracket (RH)
7.	Seat belt buckle (RH)	8.	Seat belt retractor (center)	9.	Front seat (center)
10.	Seat belt extender	11.	Seat belt buckle (center)	12.	Seat hinge finisher (LH)
13.	Seat belt buckle (LH)	14.	Front seat (LH)	15.	Seat belt anchor bracket (LH)
16.	Seat belt retractor (LH)	17.	D-ring anchor bolt cover (LH)	18.	Seat belt height adjuster (LH)
