Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear pillar upper finisher. Refer to Removal and Installation .

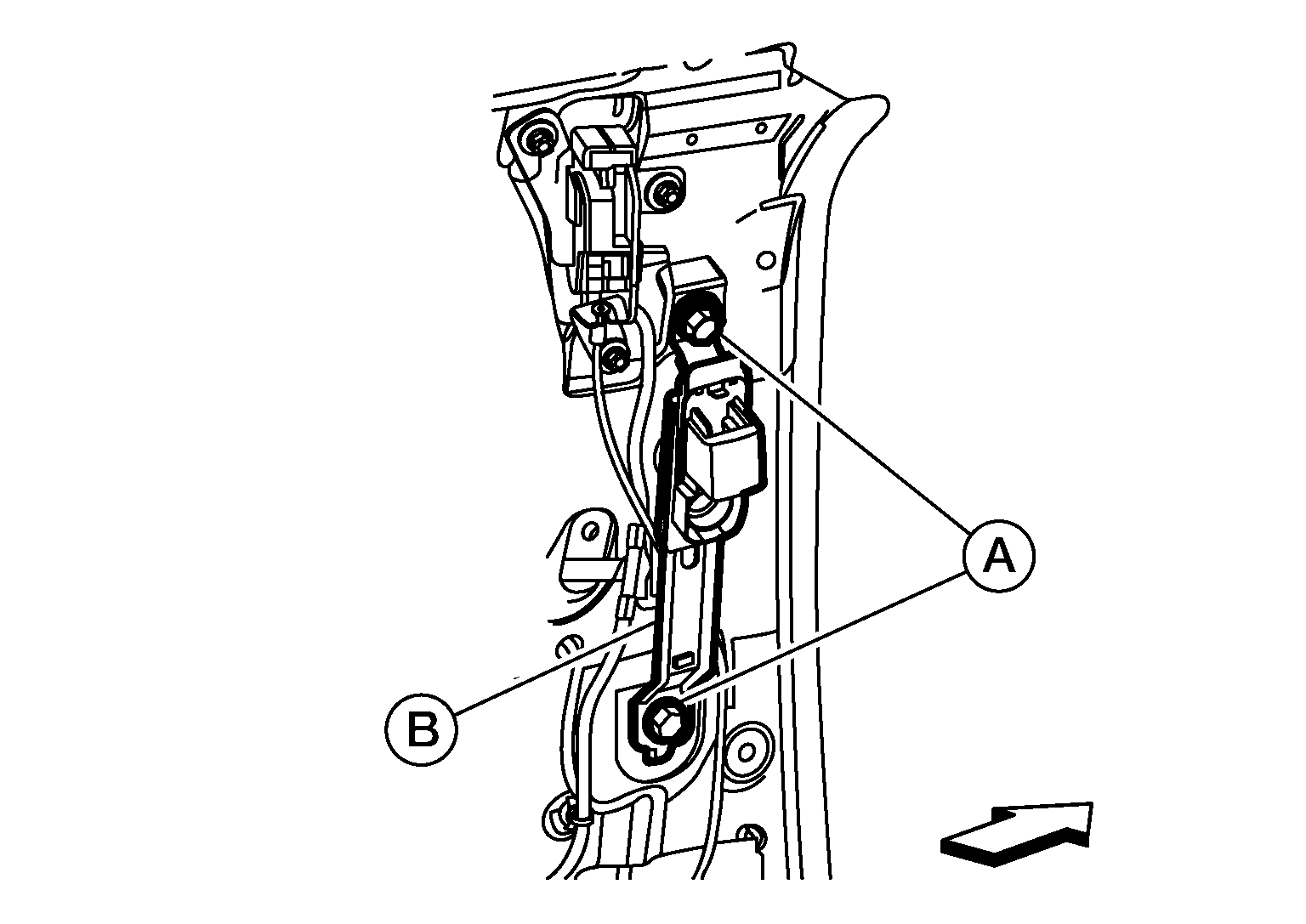

  2. Remove bolts (A) and seat belt height adjuster (B).
    GNSAWJIA2431Z-431Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
