Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|

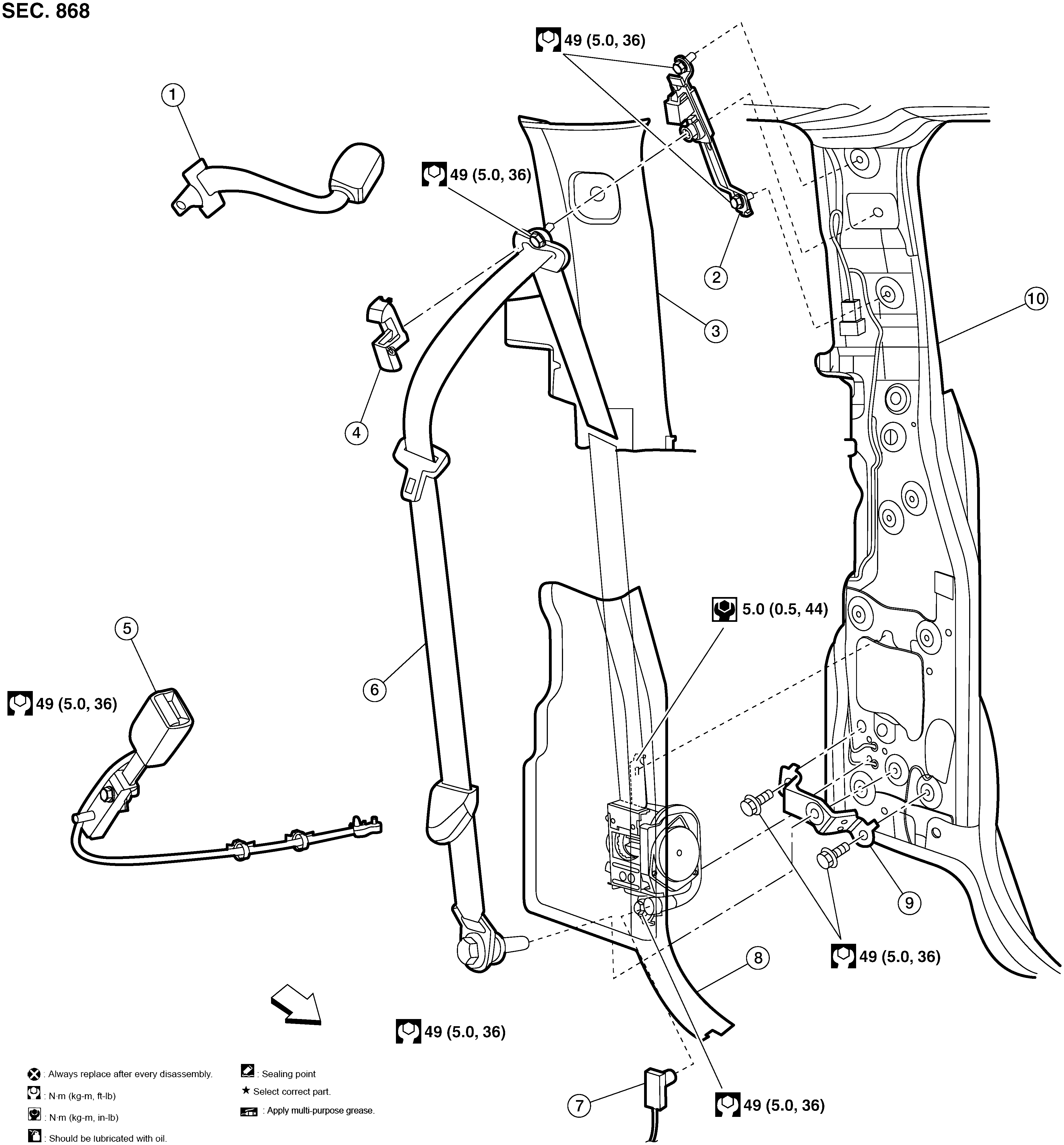

1. |
Seat belt extender |
2. |
Seat belt height adjuster |
3. |
Rear pillar upper finisher |
|
4. |
D-ring anchor bolt cover |
5. |
Seat belt buckle |
6. |
Seat belt retractor and belt assembly (LH) |
|
7. |
Seat belt pre-tensioner harness |
8. |
Rear pillar lower finisher |
9. |
Seat belt anchor bracket |
|
10. |
Rear pillar |
|

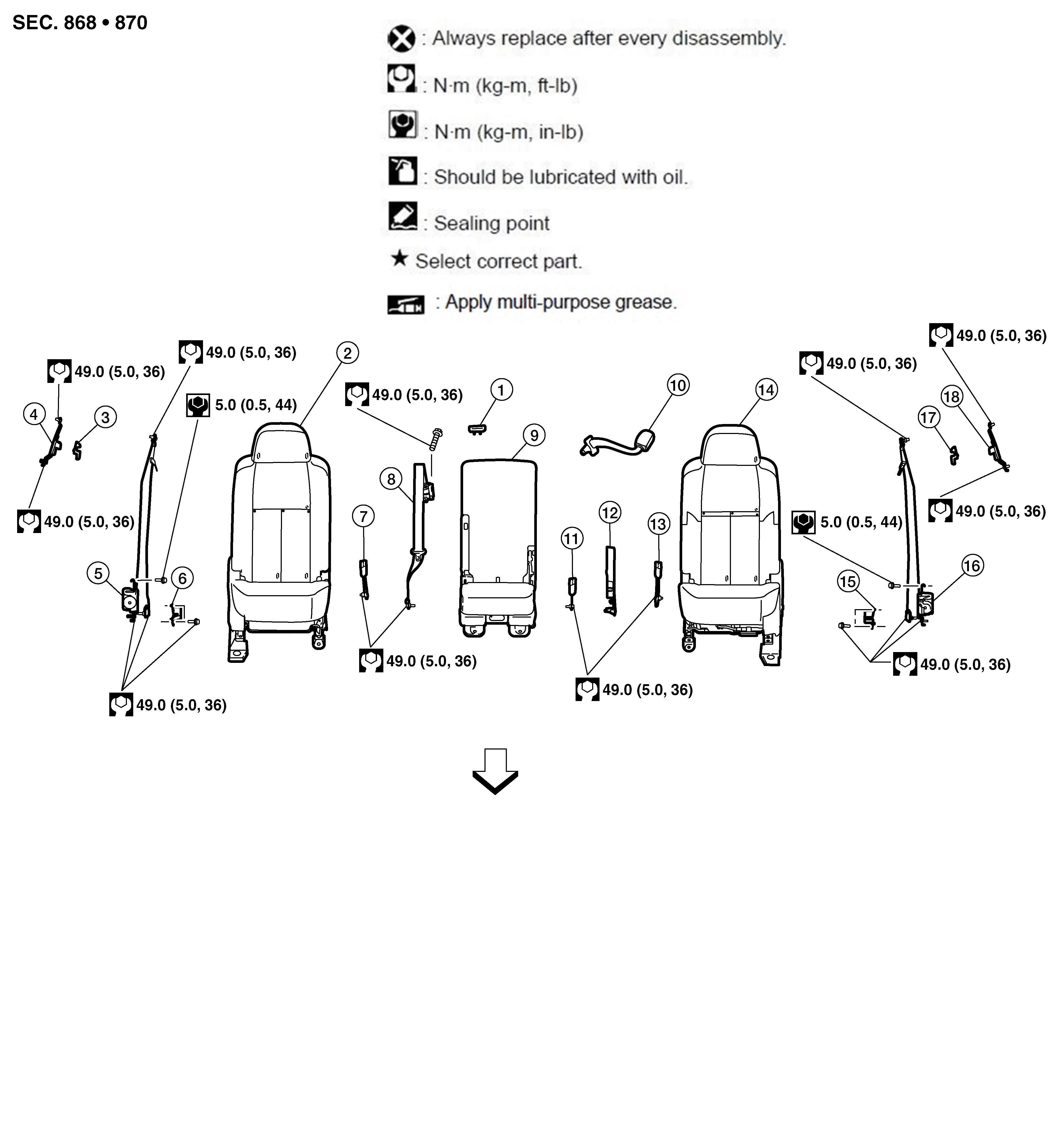

Front |
|
1. |
Seat belt guide |
2. |
Front seat (RH) |
3. |
D-ring anchor bolt cover (RH) |
|
4. |
Seat belt height adjuster (RH) |
5. |
Seat belt retractor (RH) |
6. |
Seat belt anchor bracket (RH) |
|
7. |
Seat belt buckle (RH) |
8. |
Seat belt retractor (center) |
9. |
Front seat (center) |
|
10. |
Seat belt extender |
11. |
Seat belt buckle (center) |
12. |
Seat hinge finisher (LH) |
|
13. |
Seat belt buckle (LH) |
14. |
Front seat (LH) |
15. |
Seat belt anchor bracket (LH) |
|
16. |
Seat belt retractor (LH) |
17. |
D-ring anchor bolt cover (LH) |
18. |
Seat belt height adjuster (LH) |
|
|
Front |
