Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver seat. Refer to Removal and Installation .

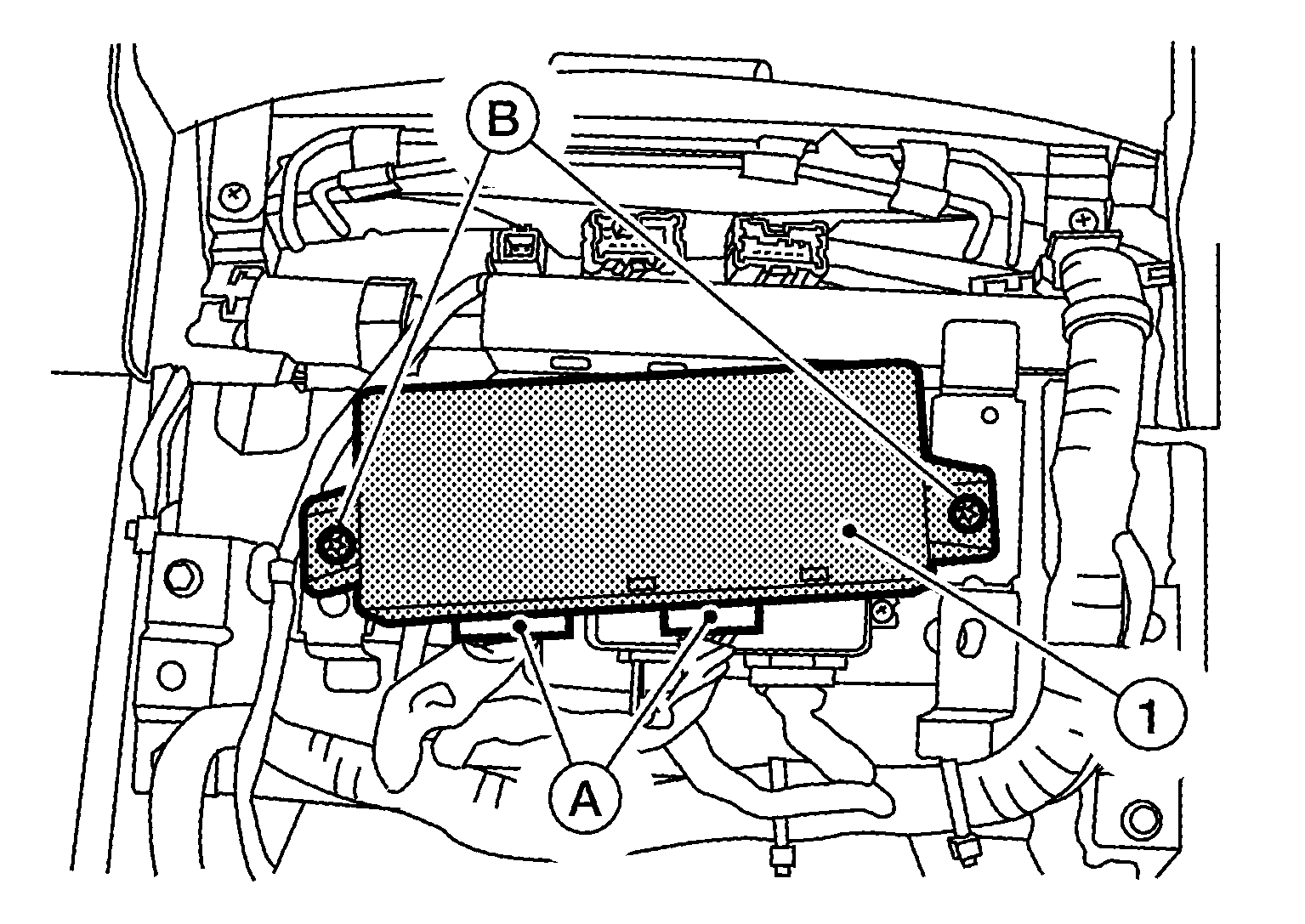

  2. Disconnect harness connectors (A) from driver seat control unit (1).
    GNSAWJIA1855Z-855Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screws (B) and driver seat control unit.
