Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove AV control unit. Refer to Removal and Installation (MULTI AV [WITH BOSE]),Removal and Installation (MULTI AV [NAVI WITHOUT BOSE]), orRemoval and Installation (TELEMATICS SYSTEM).

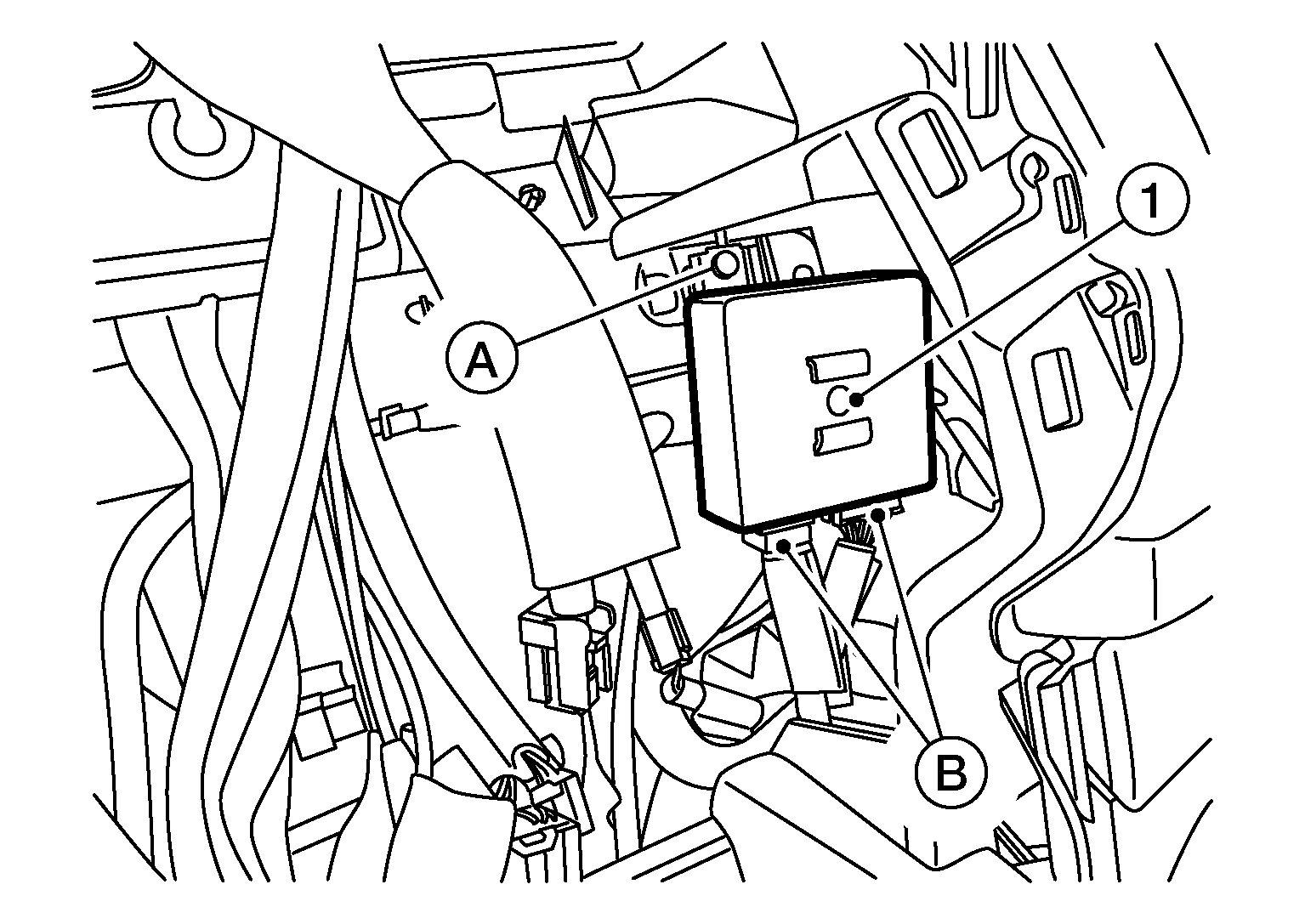

  2. Disconnect harness connectors (B).
    GNSALJIA1765Z-765Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove automatic drive positioner control unit screw (A) and automatic drive positioner control unit (1).
