Rear Seat Belt Buckle (LH)

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Route seat belt buckle (LH) through the seat cushion (LH).
Fold the seat cushion (LH) into the upright and locked position.

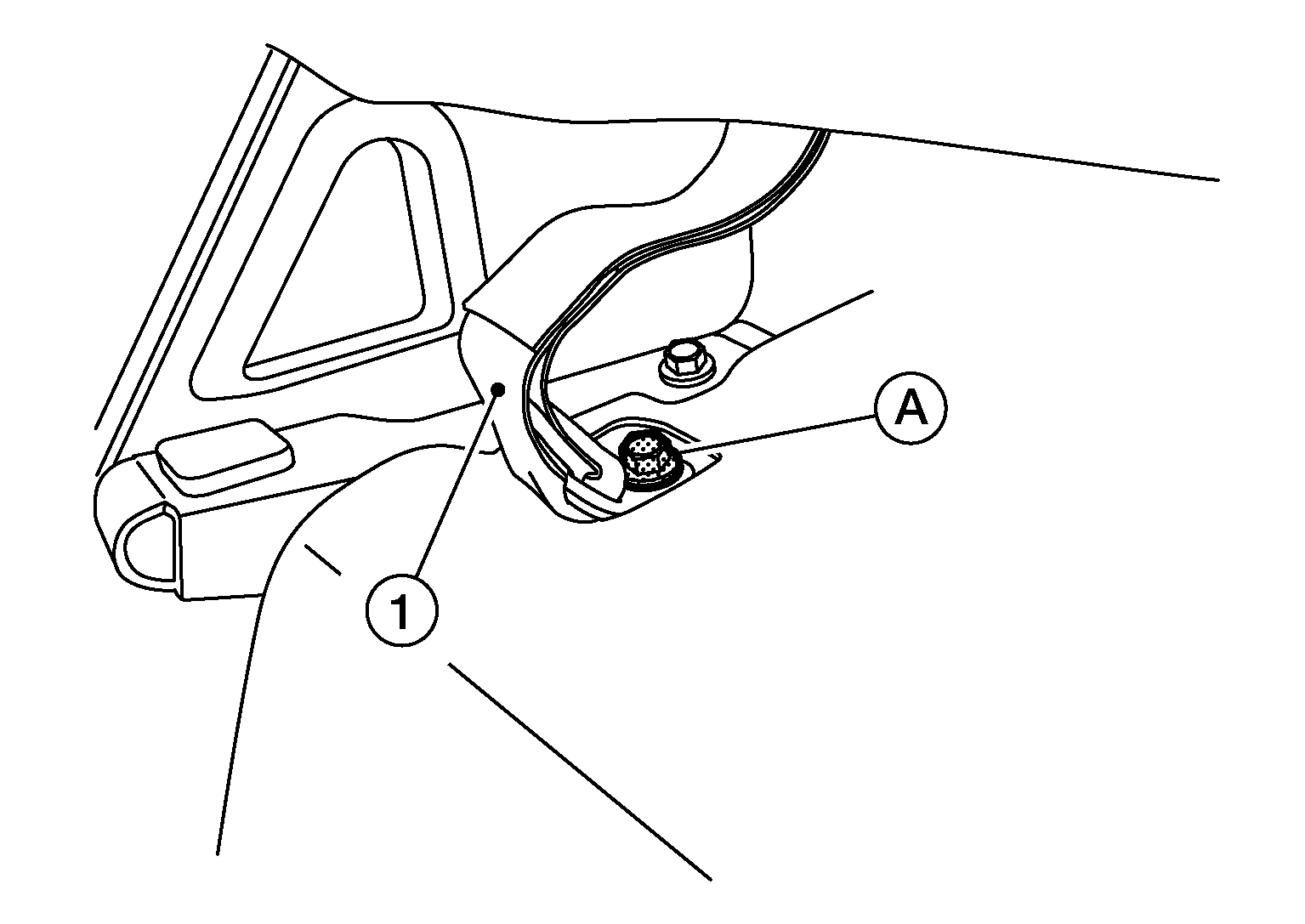

Remove anchor bolt (A) and seat belt buckle [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten anchor bolts to specification. Refer to Exploded View .
Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection .
