Seat Belt Buckle (LH/RH)

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Removal

NOTE: LH shown, RH similar.

Remove front seat. Refer to Removal and Installation - Captain Seats .

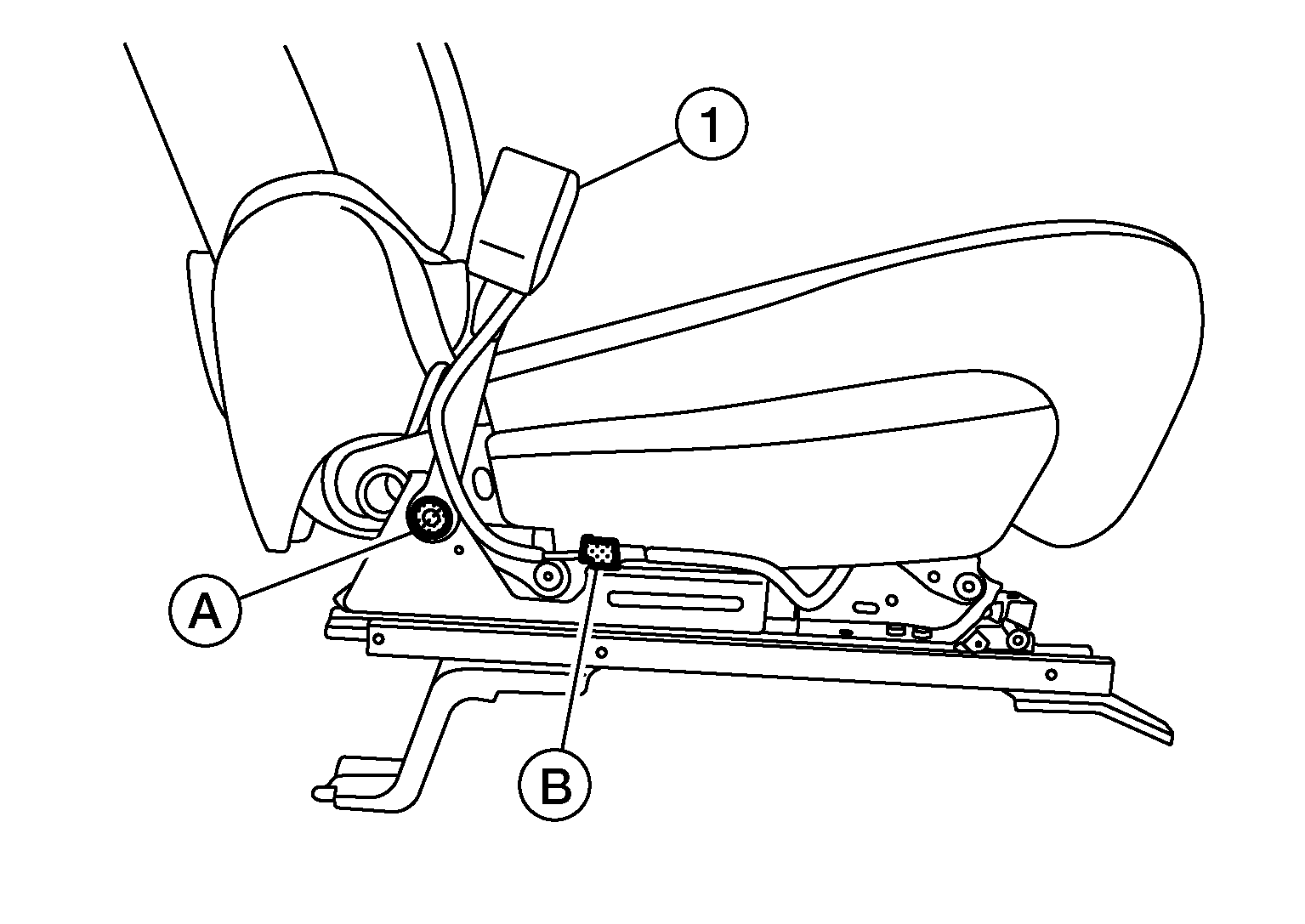

Remove seat belt buckle anchor bolt (A), then disconnect harness connector (B) from seat belt buckle (1).

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten seat belt buckle anchor bolt to specification. Refer to Exploded View .
Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection .
