Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH side shown; LH side similar.
- Release pawls on side defroster grille (RH).
- Remove side defroster grille (RH).

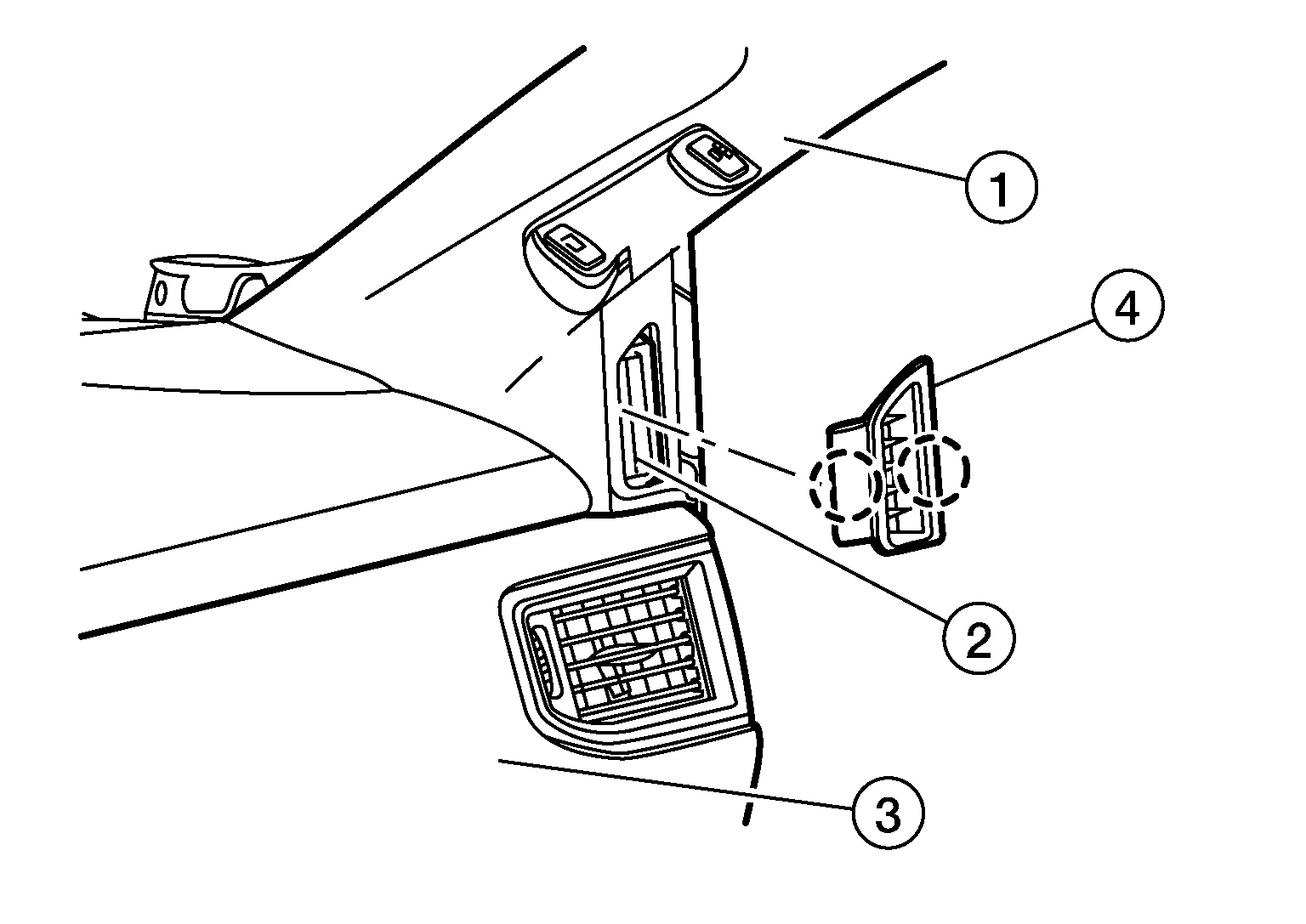

 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
(1)
|
: Front pillar (RH)
|
|
(2)
|
: Side defroster duct (RH)
|
|
(3)
|
: Instrument upper panel
|
|
(4)
|
: Side defroster grille (RH)
|
