Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown; RH similar.
  1. Remove center ventilator duct. Refer to Removal and Installation .

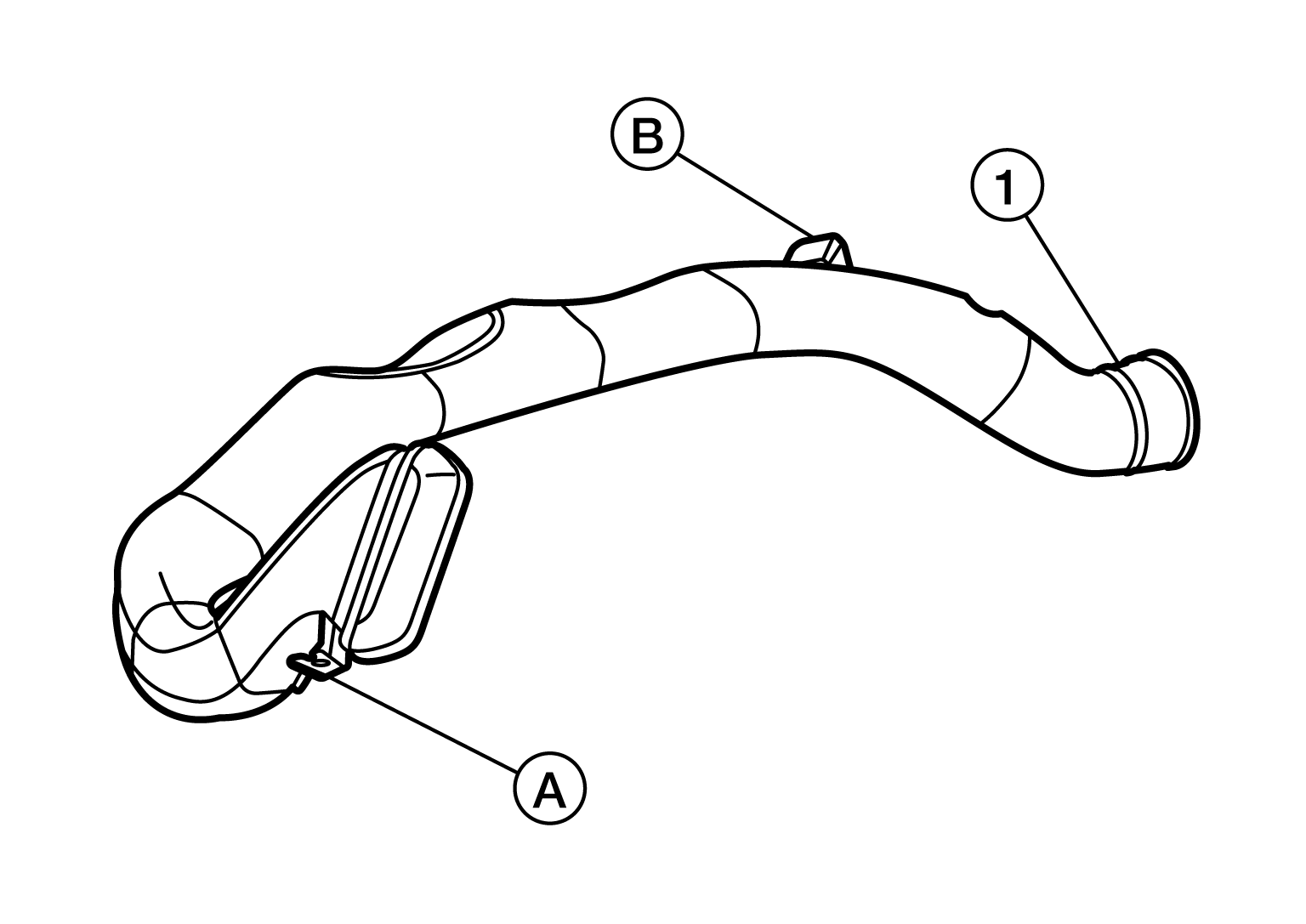

  2. Remove screw (A) and clip (B), then remove side defroster duct [(LH) (1)].
    GNSAWLIA2741Z-741Courtesy of NISSAN NORTH AMERICA, INC.
