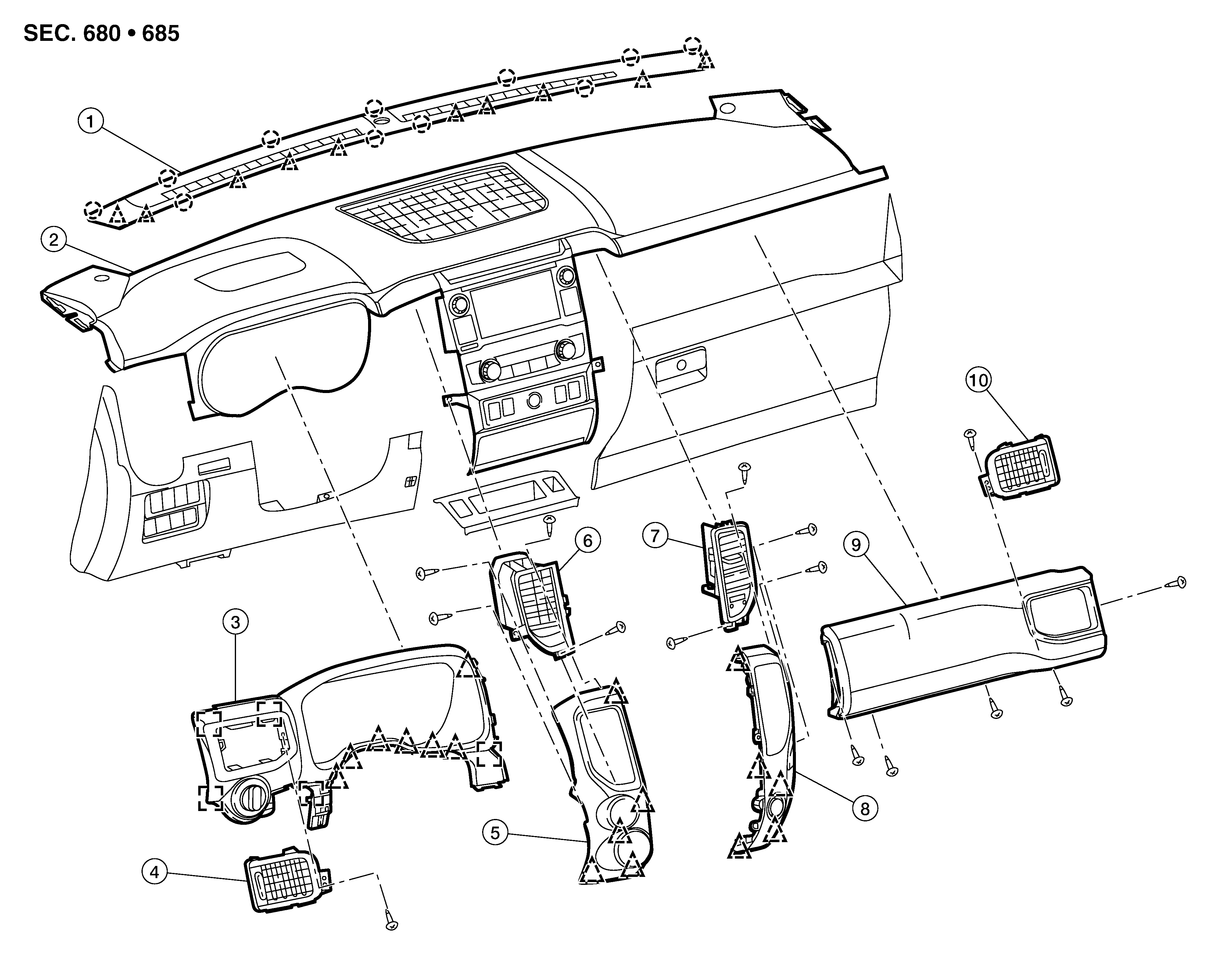

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front defroster grille |
2. |
Instrument panel assembly |
3. |
Cluster lid A |
|
4. |
Side ventilator grille (LH) |
5. |
Cluster lid C finisher (LH) |
6. |
Center ventilator grille (LH) |
|
7. |
Center ventilator grille (RH) |
8. |
Cluster lid C finisher (RH) |
9. |
Instrument upper panel |
|
10. |
Side ventilator grille (RH) |
|
Clip |
|
Metal Clip |
|
|
Pawl |
