Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heating and cooling unit assembly. Refer to Removal and Installation .

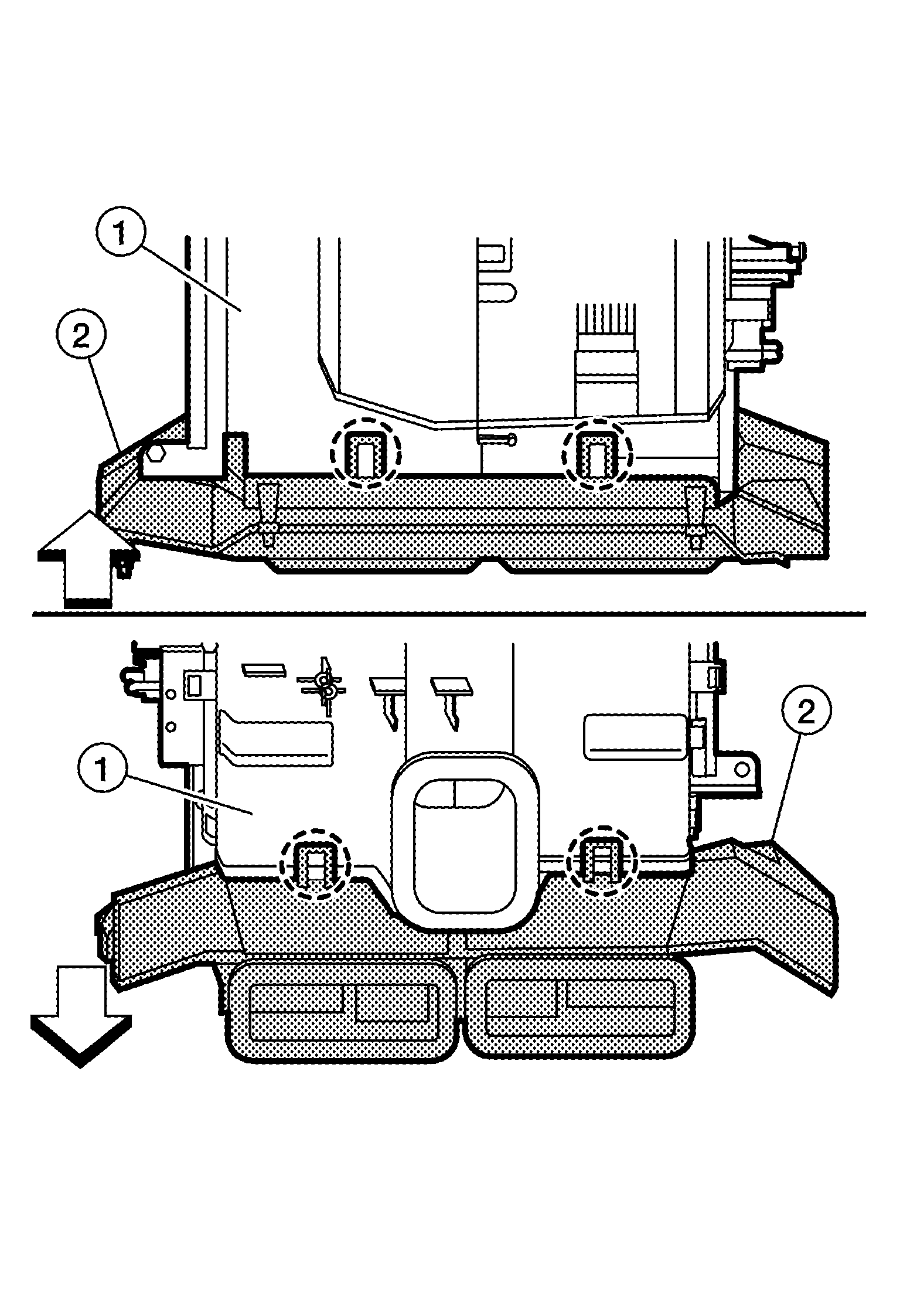

  2. Release pawls and remove foot duct (2) from heating and cooling unit assembly (1).
    GNSALIIA1178Z-178Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Front
