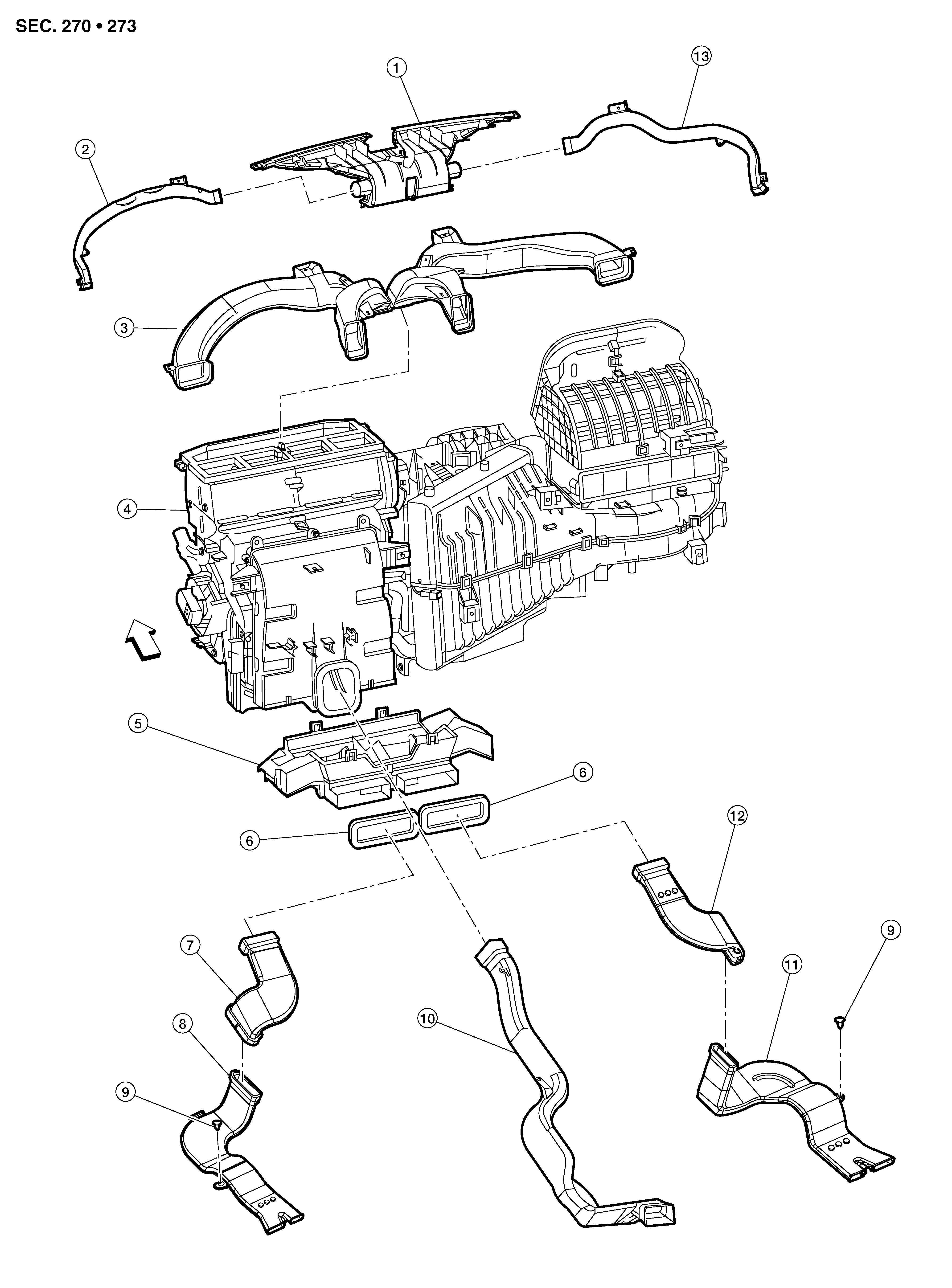

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Defroster nozzle |
2. |
Side defroster duct (LH) |
3. |
Center ventilator duct |
|
4. |
Heating and cooling unit assembly |
5. |
Foot duct |
6. |
Duct seal [RH/LH (if equipped)] |
|
7. |
Front floor connecting duct [LH (if equipped)] |
8. |
Front floor duct [LH (if equipped)] |
9. |
Clip (if equipped) |
|
10. |
Rear center ventilator duct (if equipped) |
11. |
Front floor duct [RH (if equipped)] |
12. |
Front floor connecting duct [RH (if equipped)] |
|
13. |
Side defroster duct (RH) |
|
Front |
