Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side defroster ducts (LH/RH). Refer to Removal and Installation .

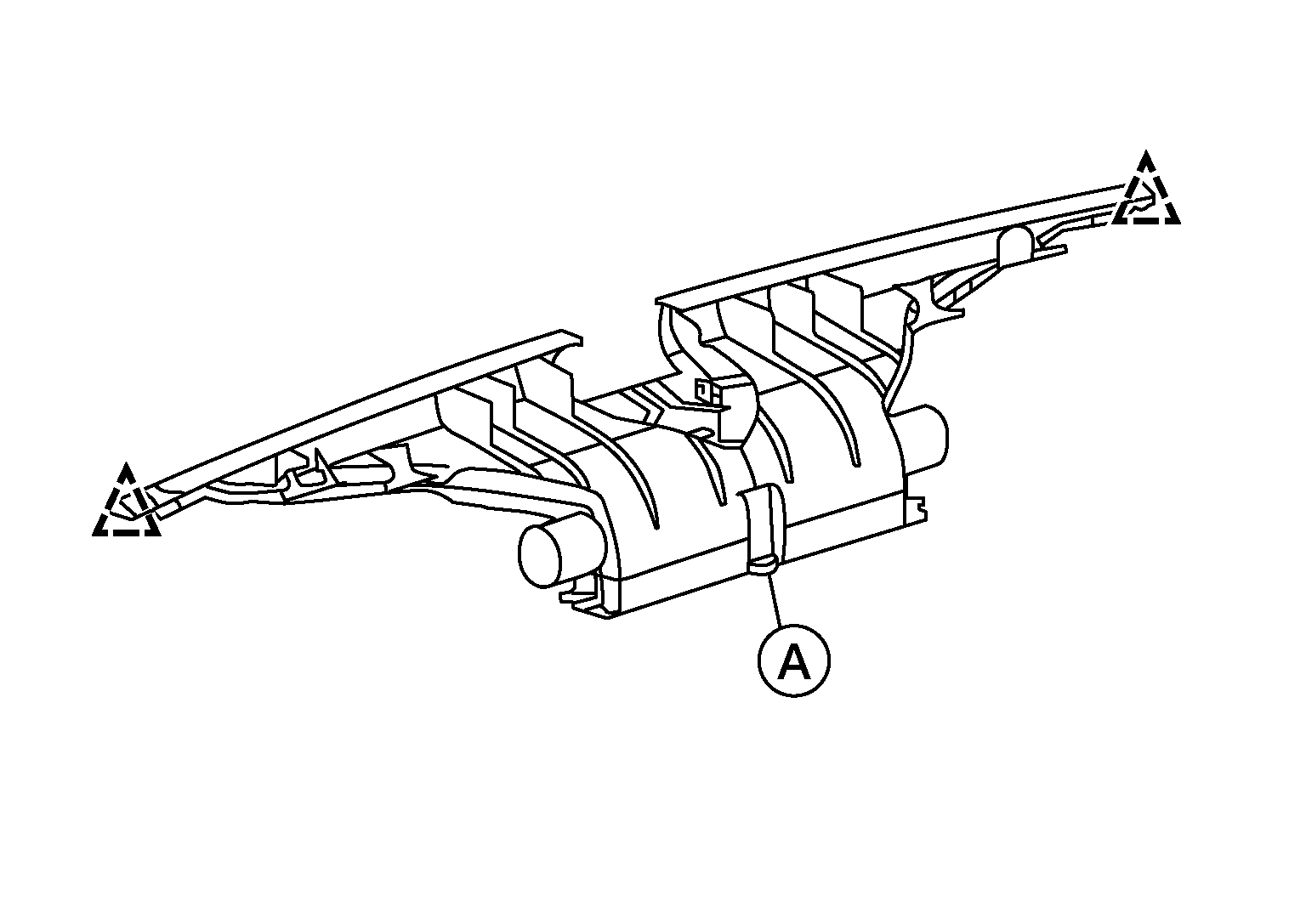

  2. Remove screws (A) from defroster nozzle.
    GNSAWIIA0012Z-012Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release defroster nozzle clips using a suitable tool and remove defroster nozzle.

    SYMBOL

    :Clip
  4. Remove defroster nozzle.
