Example Of Air Bag Warning Lamp Operation In The Diagnosis Mode

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

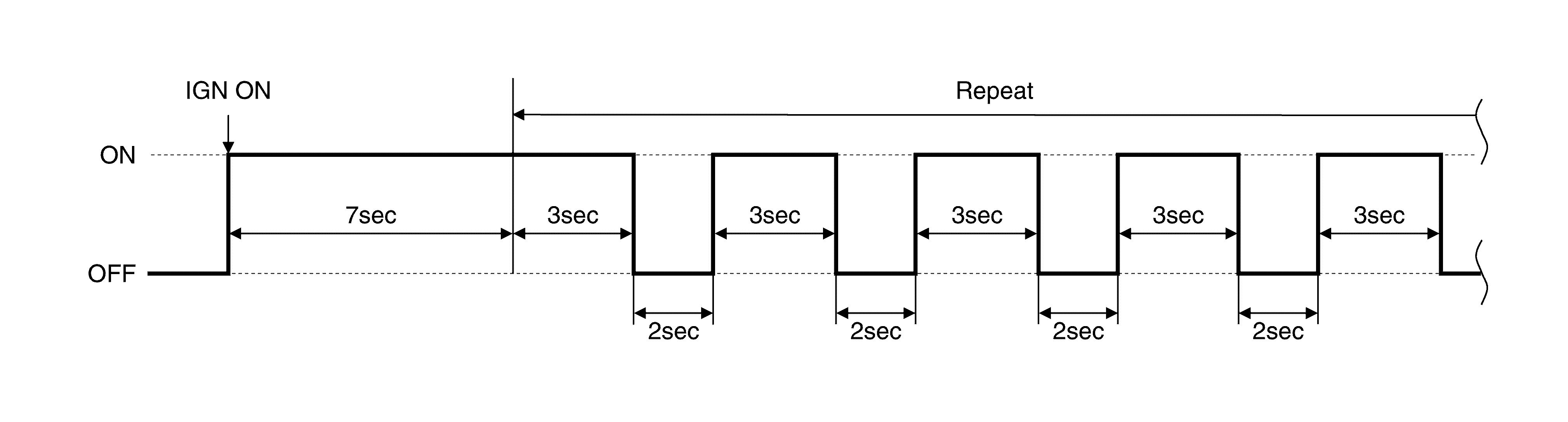

System Normal

When the system is normal and "PAST" displayed in "Self Diagnostic Result".

Courtesy of NISSAN NORTH AMERICA, INC.

Single System Malfunction

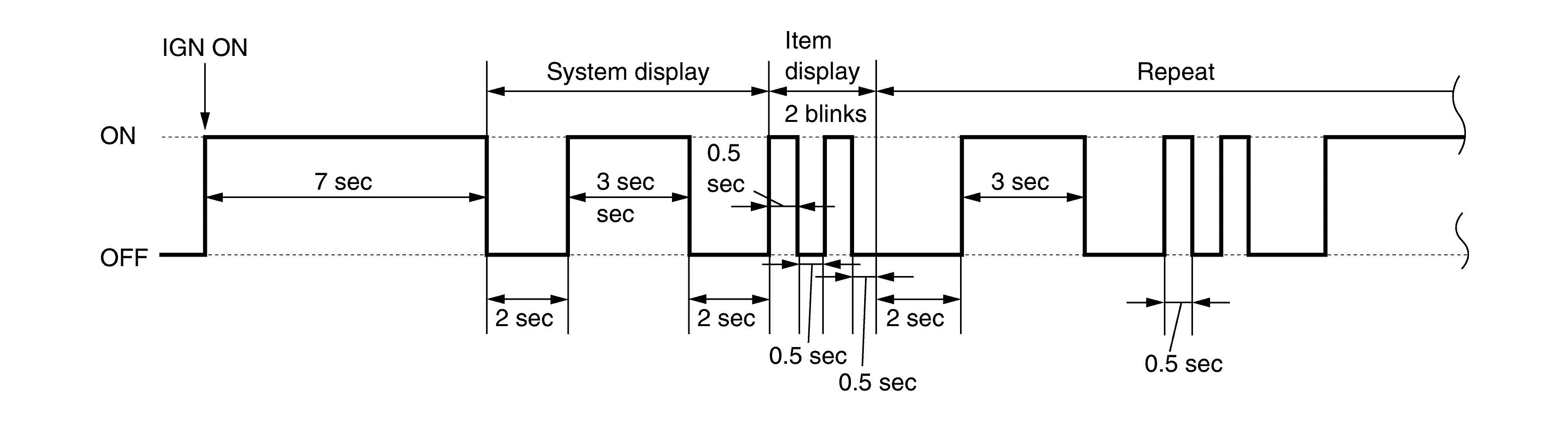

Front air bag system
When driver air bag module (Item display) is malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

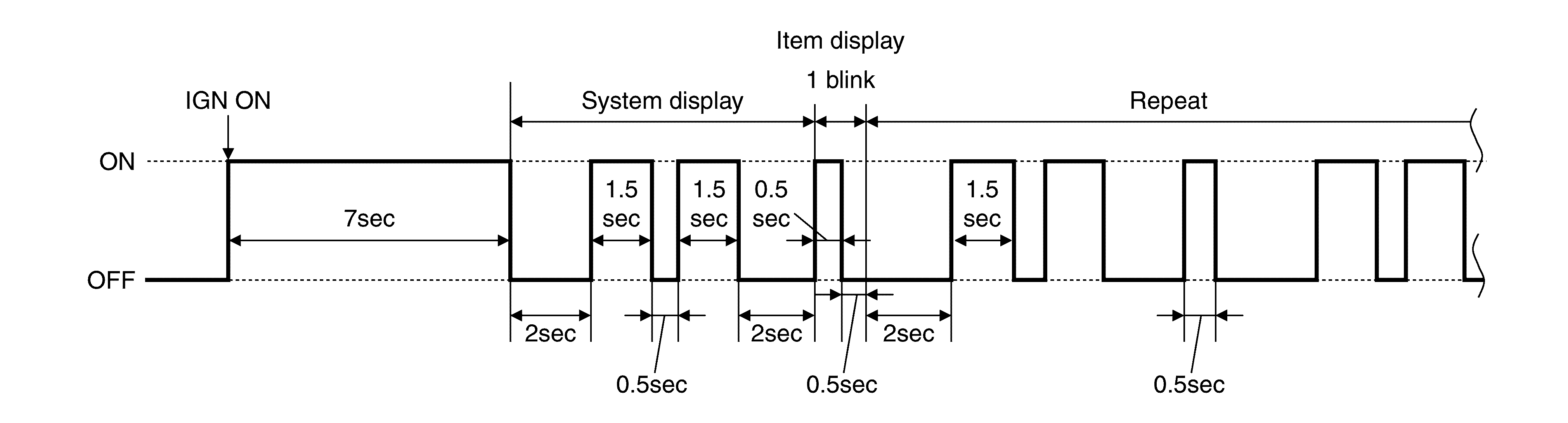

Side air bag system
When side air bag module LH (Item display) is malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

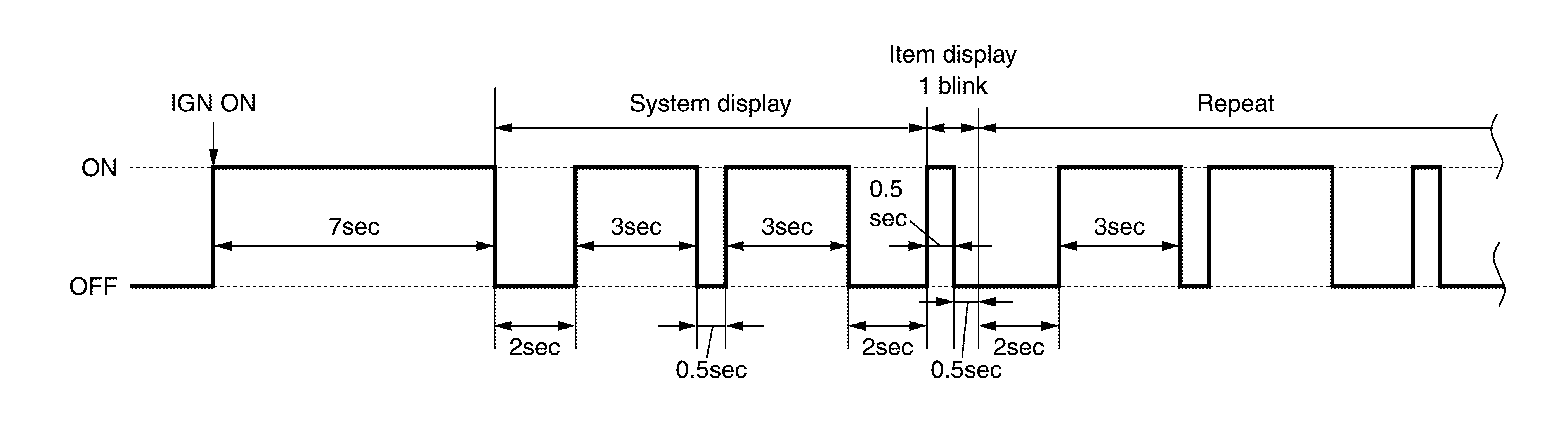

Air bag control unit system
When air bag diagnosis sensor unit (Item display) is malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

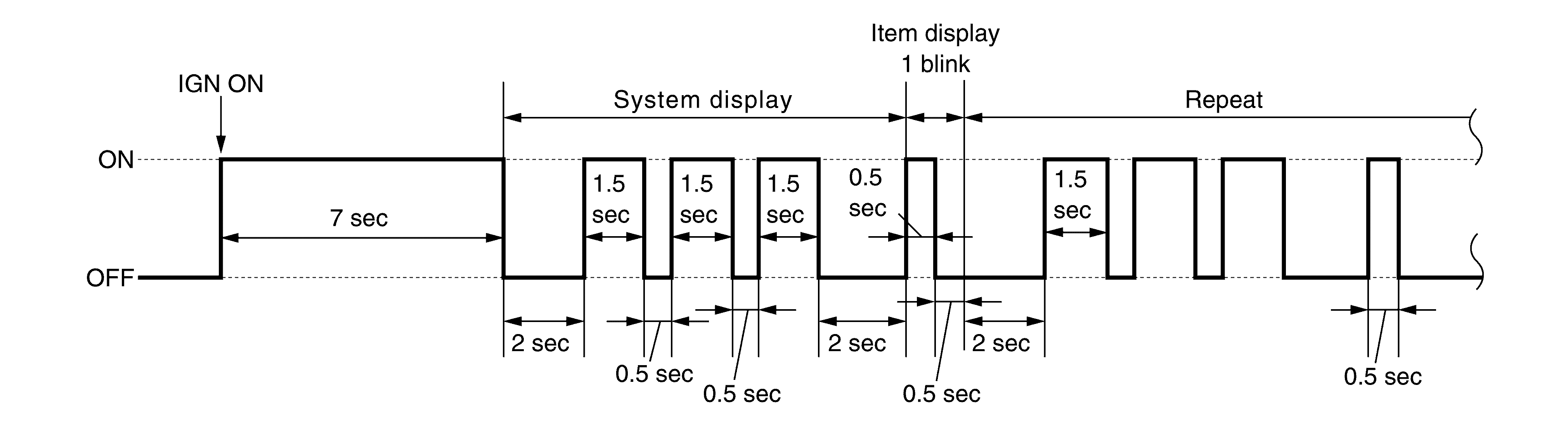

Sensor system
When crash zone sensor (Item display) is malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

Multiple Systems Malfunction

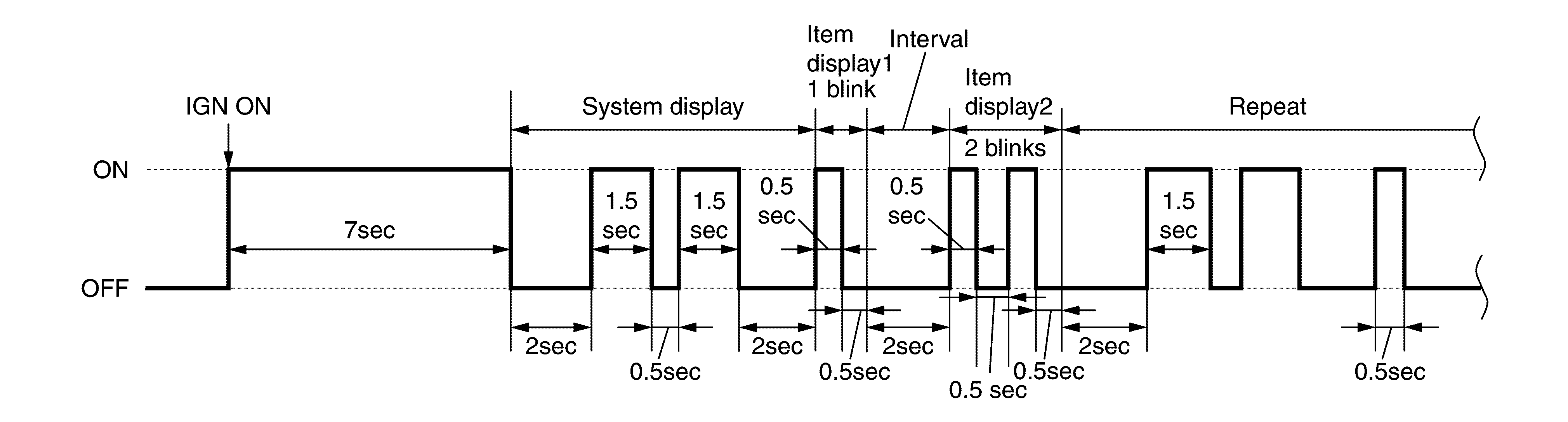

Front air bag system
When driver air bag module (Item display 1) and passenger air bag module (Item display 2) are malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

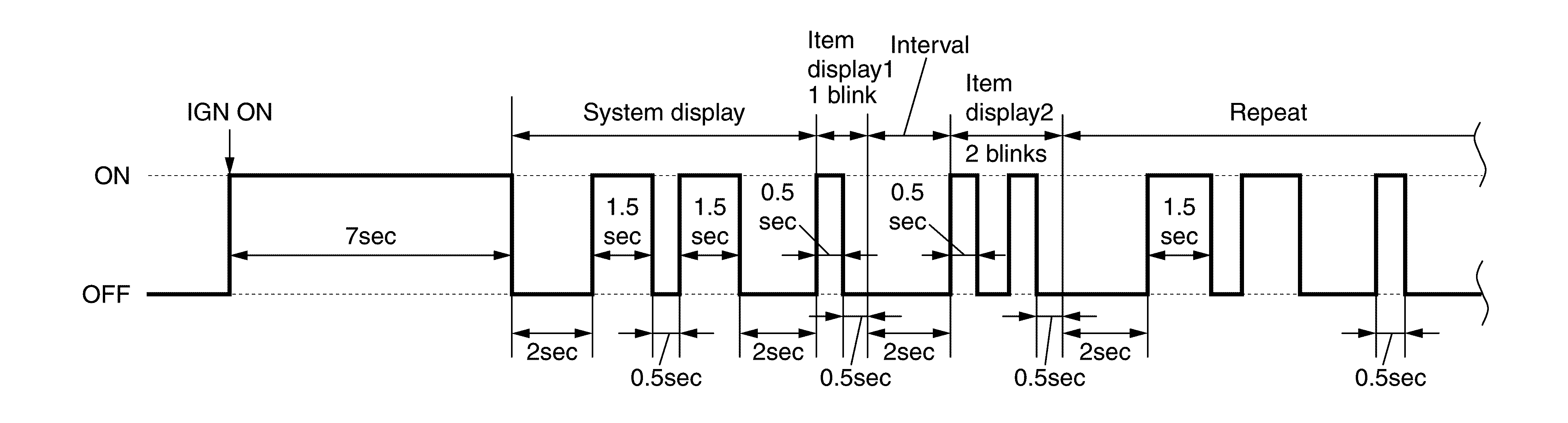

Side air bag system
When side air bag module LH (Item display 1) and side air bag module RH (Item display 2) are malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

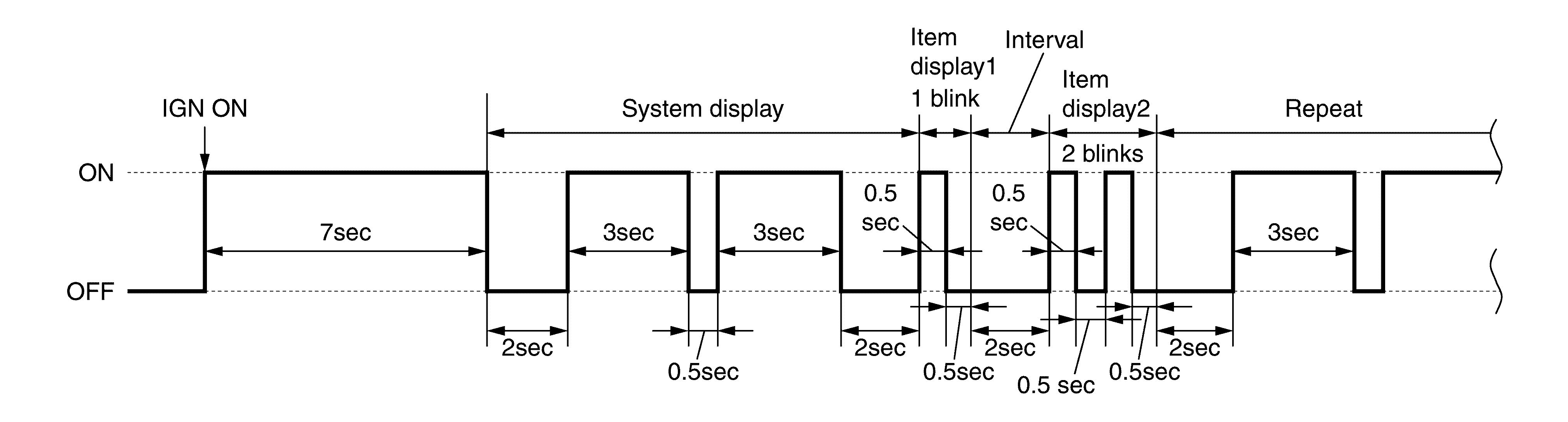

Air bag control unit system
When air bag diagnosis sensor unit (Item display 1) and front passenger air bag indicator (Item display 2) are malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

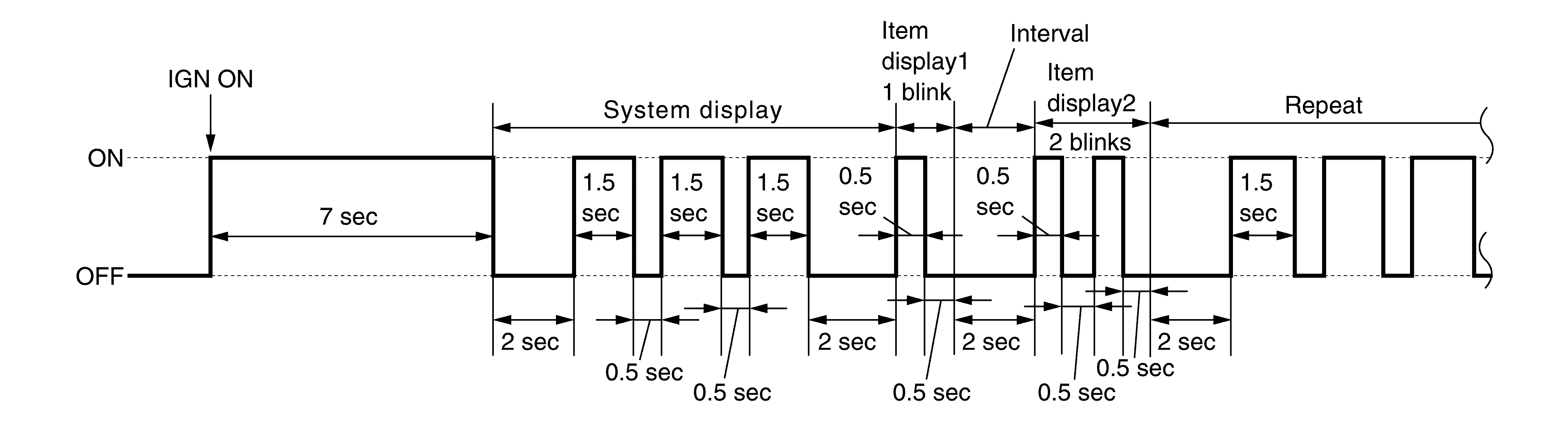

Sensor system
When crash zone sensor (Item display 1) and front satellite sensor LH (Item display 2) are malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.

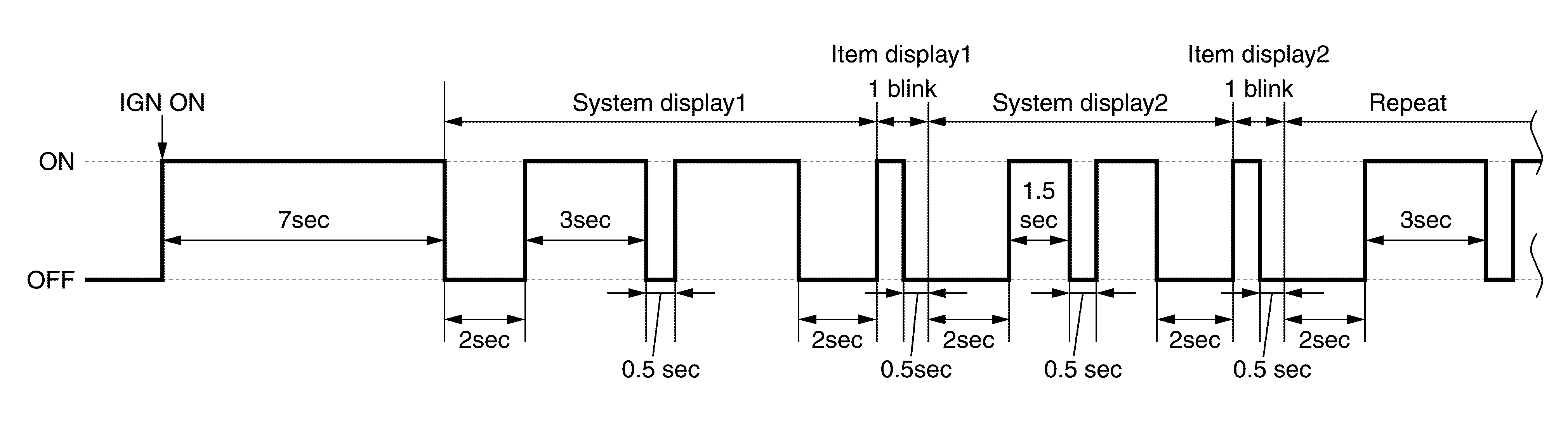

Sensor system and front air bag system
When crash zone sensor system (Item display 1) and driver air bag module (Item display 2) are malfunctioning.

Courtesy of NISSAN NORTH AMERICA, INC.
