Crash Zone Sensor
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

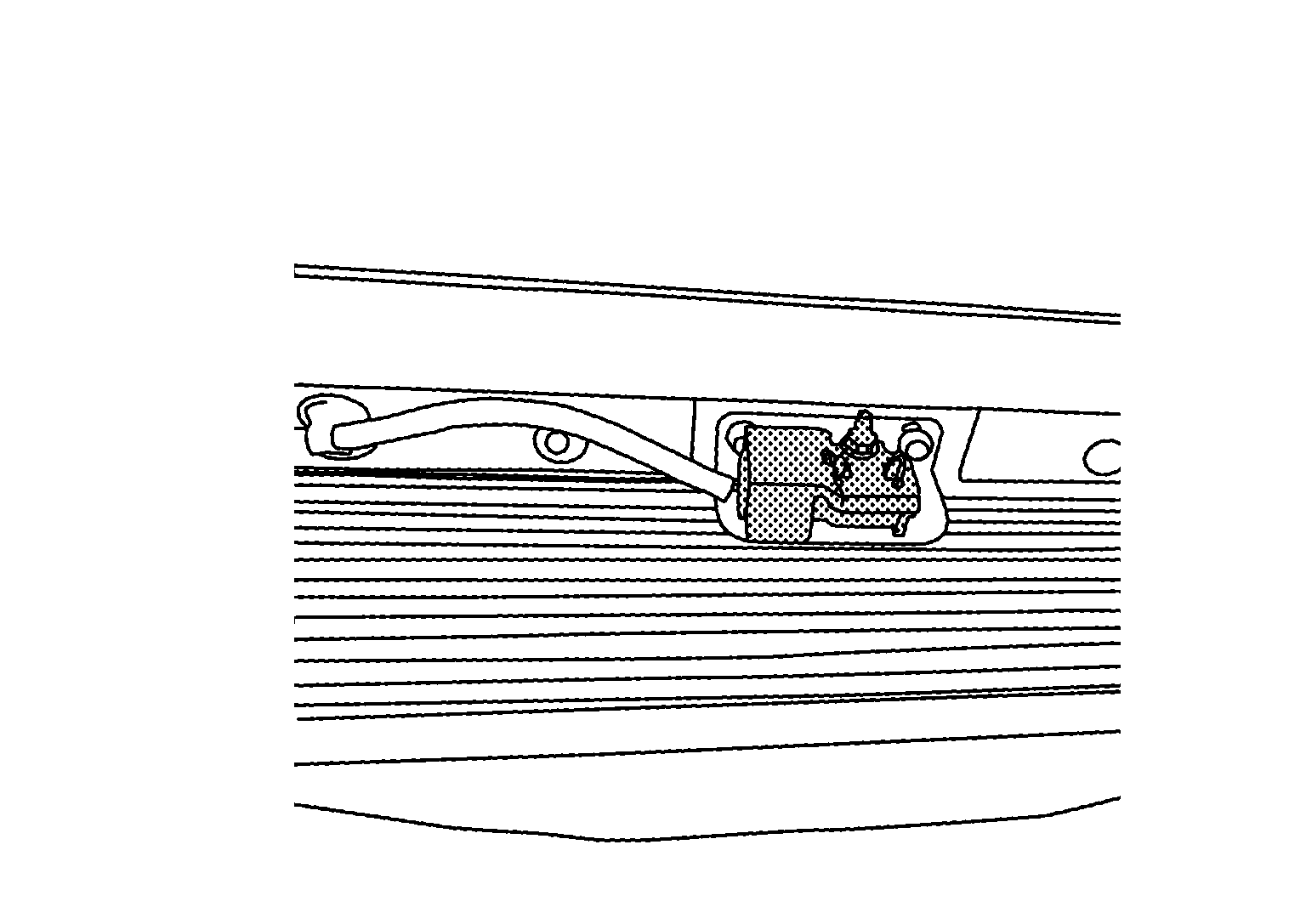

The crash zone sensor is located behind the radiator attached to the hood release bracket. The crash zone sensor sends signals to the air bag diagnosis sensor unit during a frontal collision. This sensor may be identified by a yellow connector.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
