Component Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|

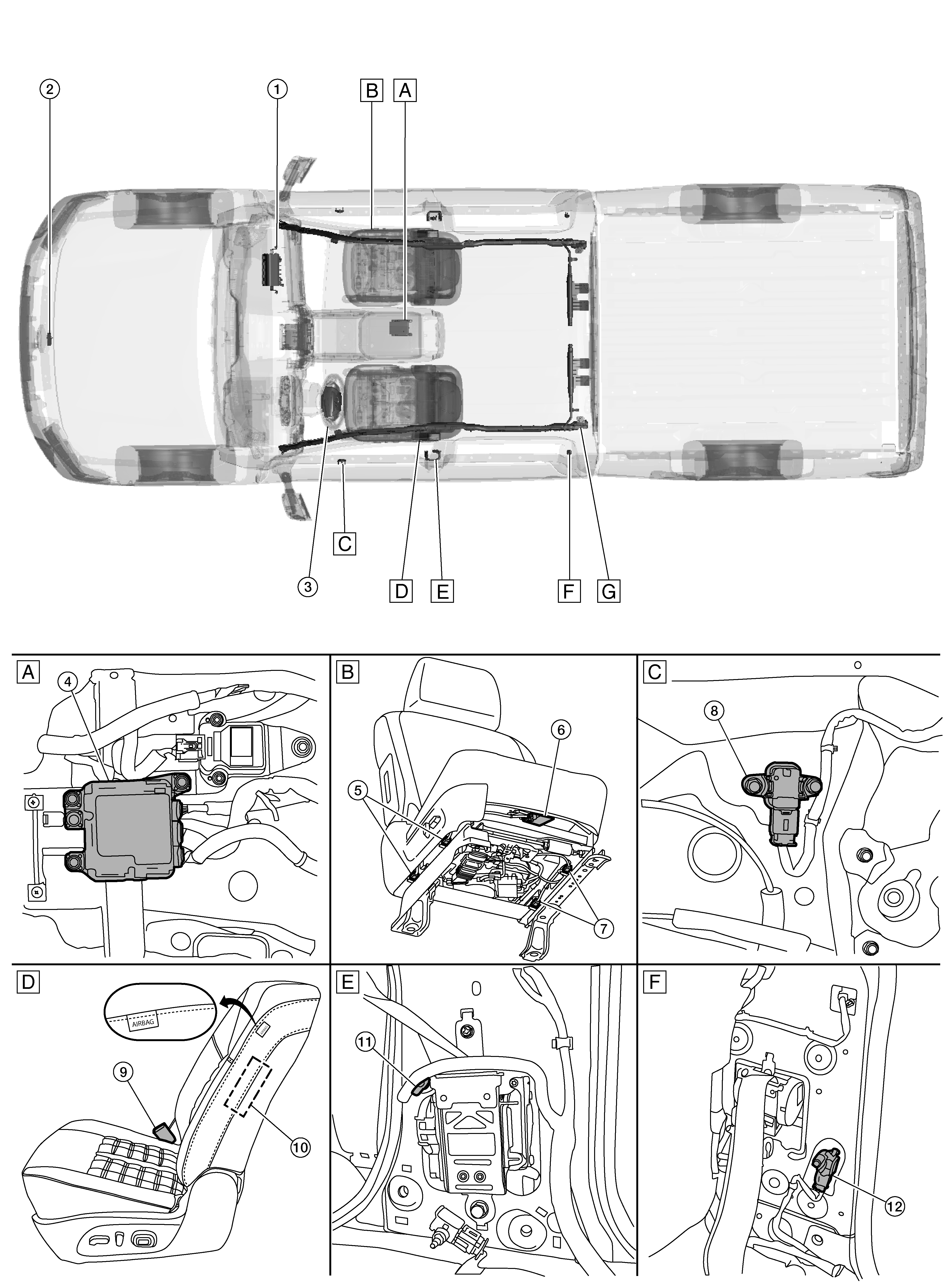

A. |
Between driver and passenger seat (view with center console removed) |
B. |
Passenger seat area (view with seat removed) |
C. |
Driver door area (view with front door finisher LH removed) |
|
D. |
Driver seat area (view with seat removed) |
E. |
Left of driver seat (view with center pillar lower finisher removed) |
F. |
Left rear of seat area (view with rear kicking plate inner LH removed) |
|

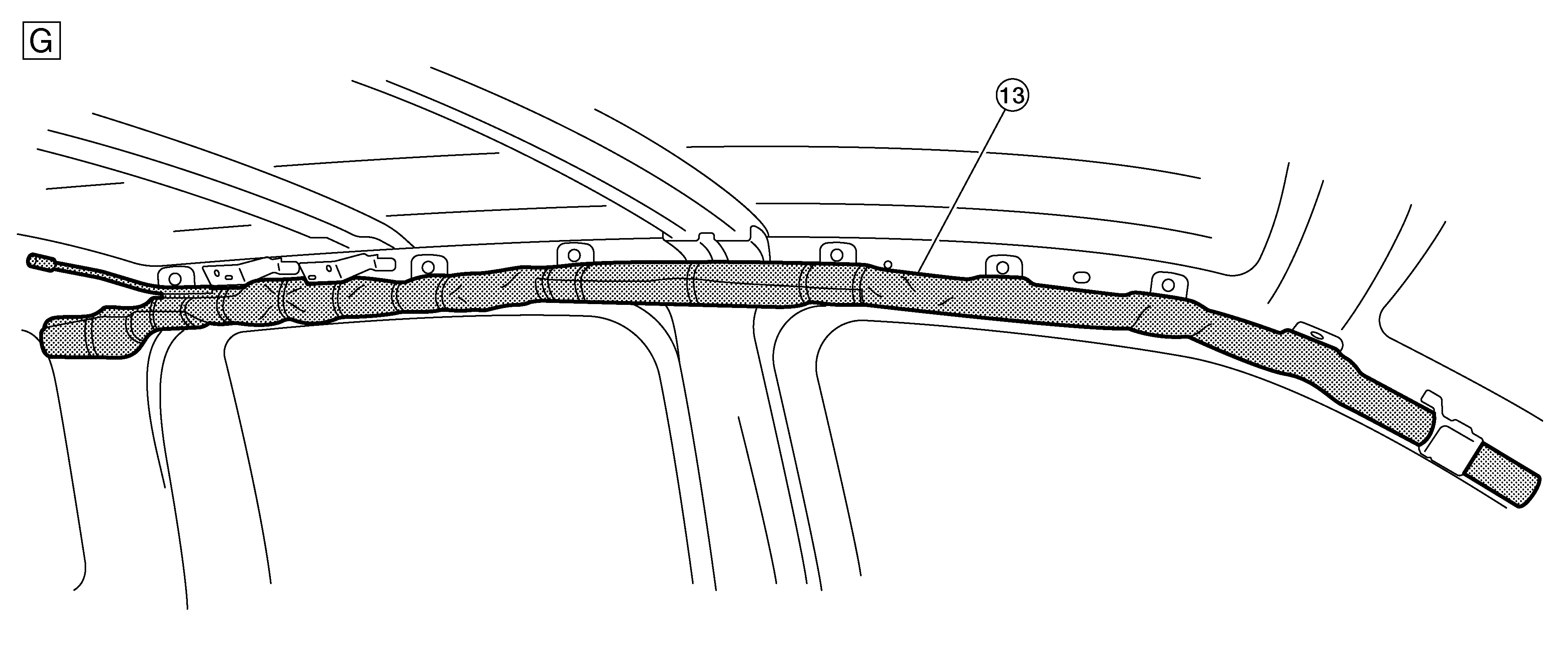

G. |
Left side of roof line (View with headliner and pillar finishers removed) (crew cab shown, King Cab ® and single cab similar) |
