Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery or batteries, then wait at least three minutes. Refer to Battery Disconnect .
  2. Remove the steering wheel. Refer to Removal and Installation .
  3. Remove the steering column covers. Refer to Removal and Installation .

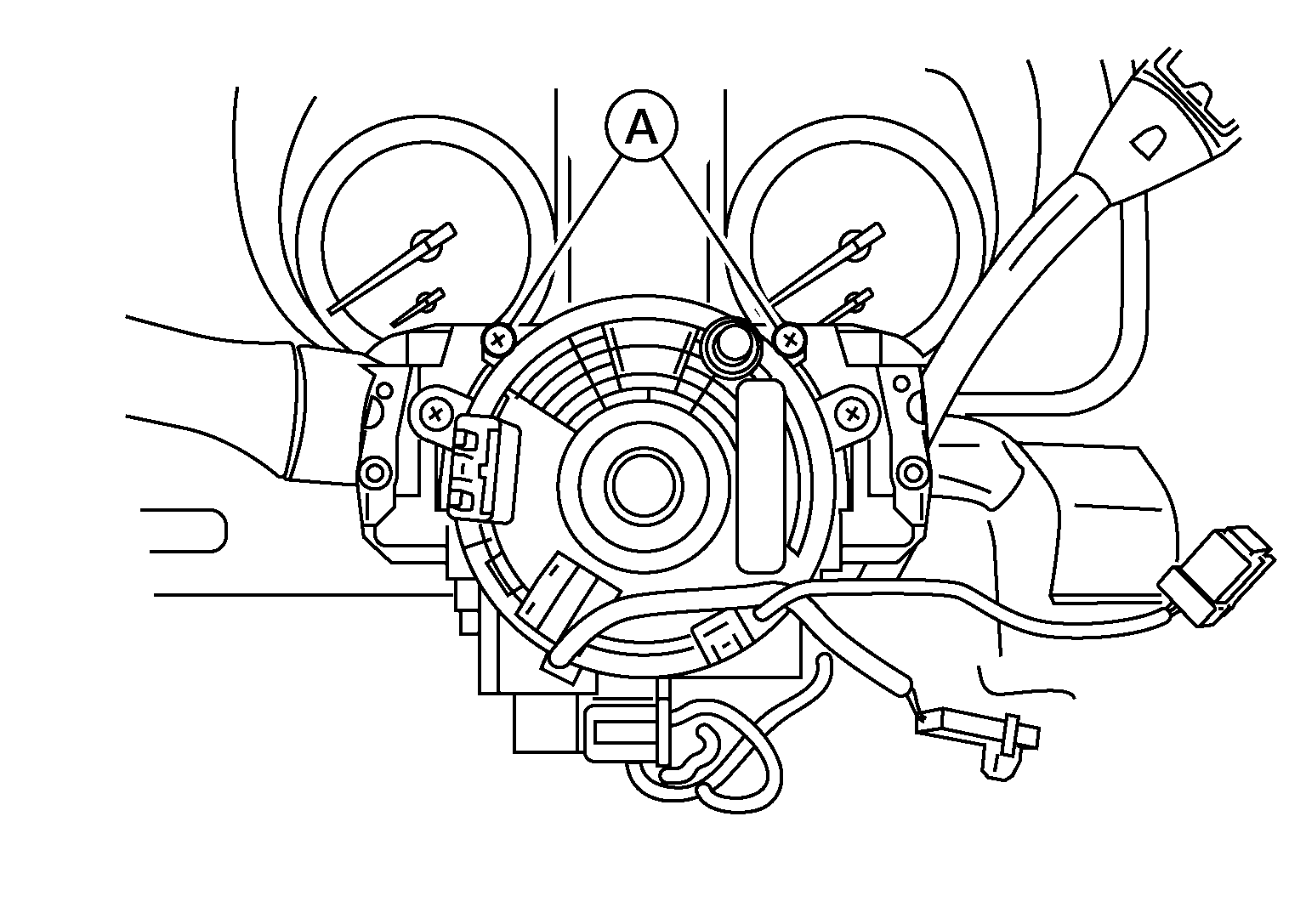

  4. Remove screws (A), then remove spiral cable and steering angle sensor as an assembly.
    GNSDB117122Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not turn the spiral cable quickly or beyond the limit number of turns (approximately 2.5 turns from the neutral position). This may cause the cable to snap.
  5. Disconnect the harness connectors from the spiral cable.
  6. If necessary, remove screws (A) then release pawls (B) and separate steering angle sensor (2) from spiral cable (1).
    GNSALHIA0271Z-271Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not strike or drop the spiral cable or steering angle sensor.
    • Replace the spiral cable or steering angle sensor if it has been dropped or sustained an impact.
    • Do not disassemble the spiral cable or steering angle sensor.
    • Do not allow oil, grease, detergent or water to come in contact with the spiral cable or steering angle sensor.
      GNSJMHIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
