Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

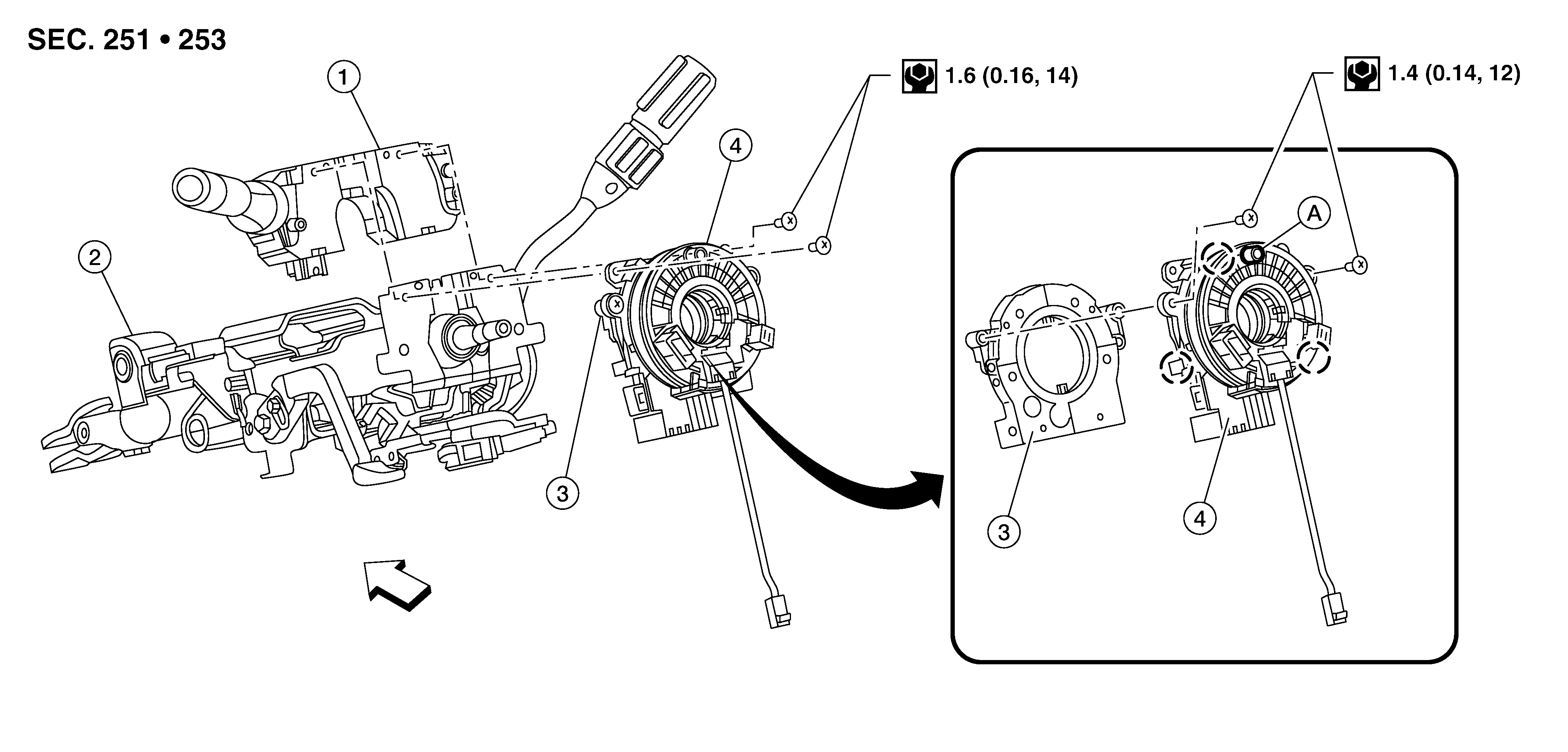

GNSDB124141Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination switch

2.

Steering column assembly

3.

Steering angle sensor

4.

Spiral cable

A.

Locating pin

SYMBOL

Pawl

SYMBOL

Front
