Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

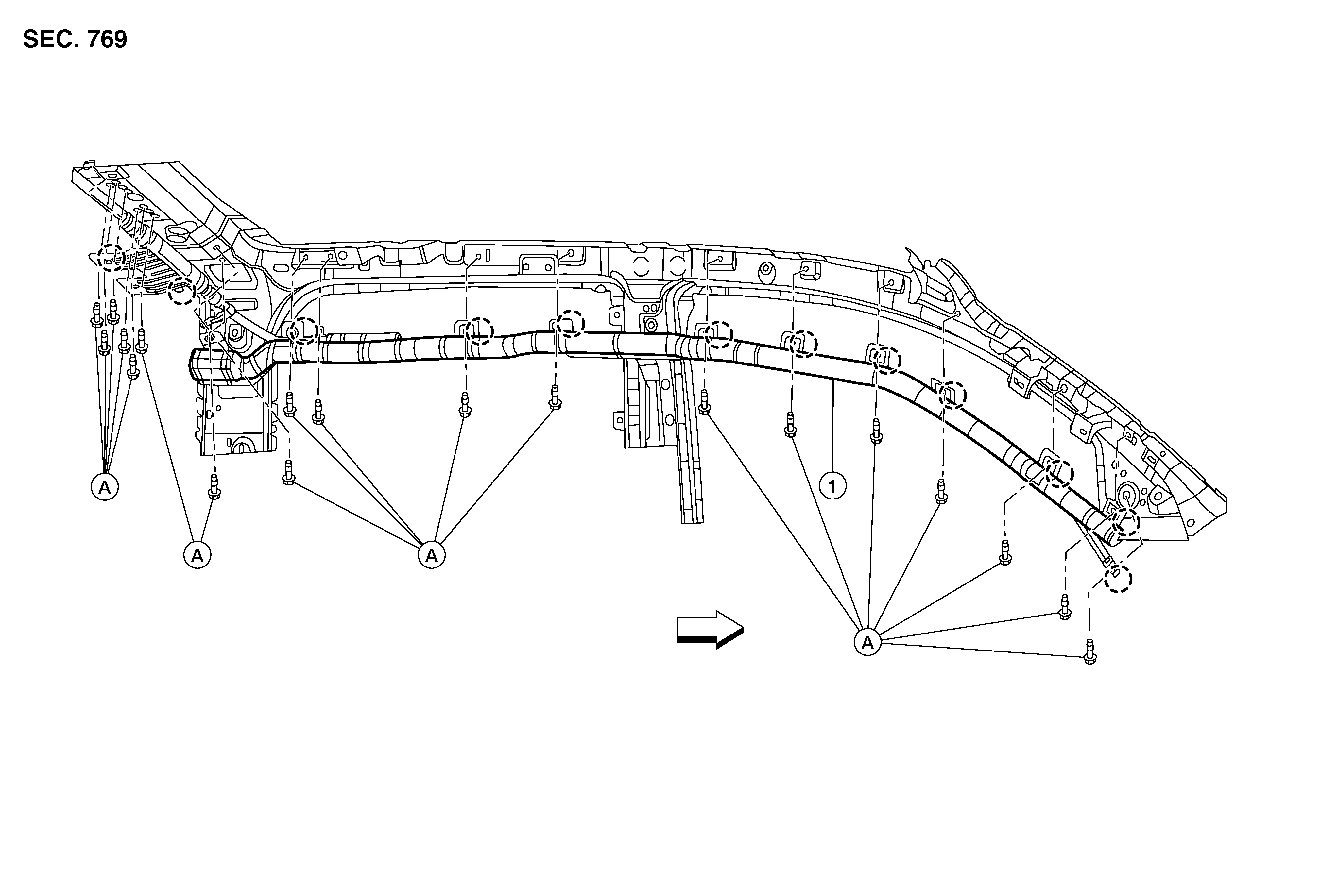

Fig 1: CREW CAB MODEL

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side curtain air bag module	A.	Refer to INSTALLATION		Support hooks
	Front

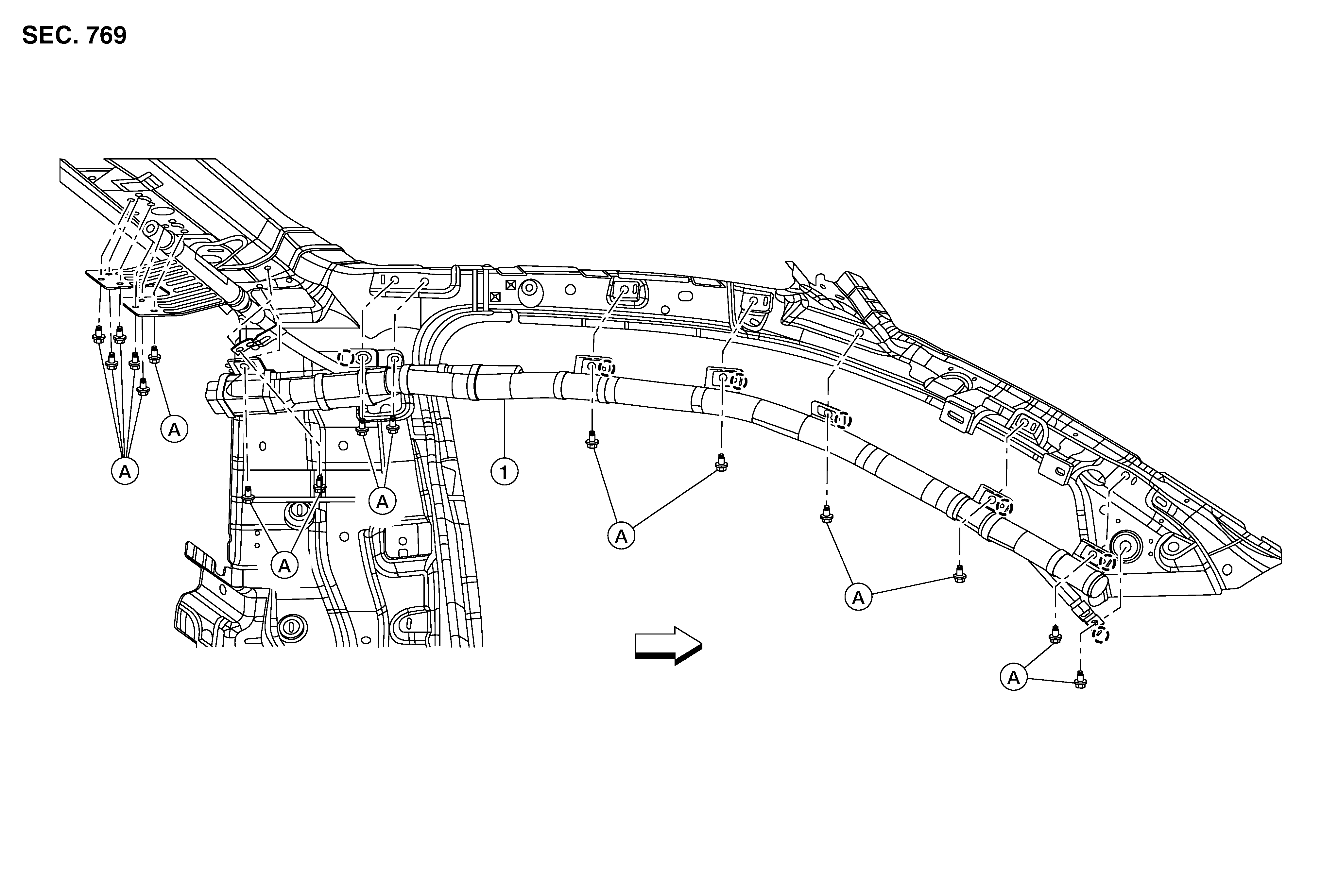

Fig 2: SINGLE CAB MODEL

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side curtain air bag module	A.	Refer to INSTALLATION		Support hooks
	Front

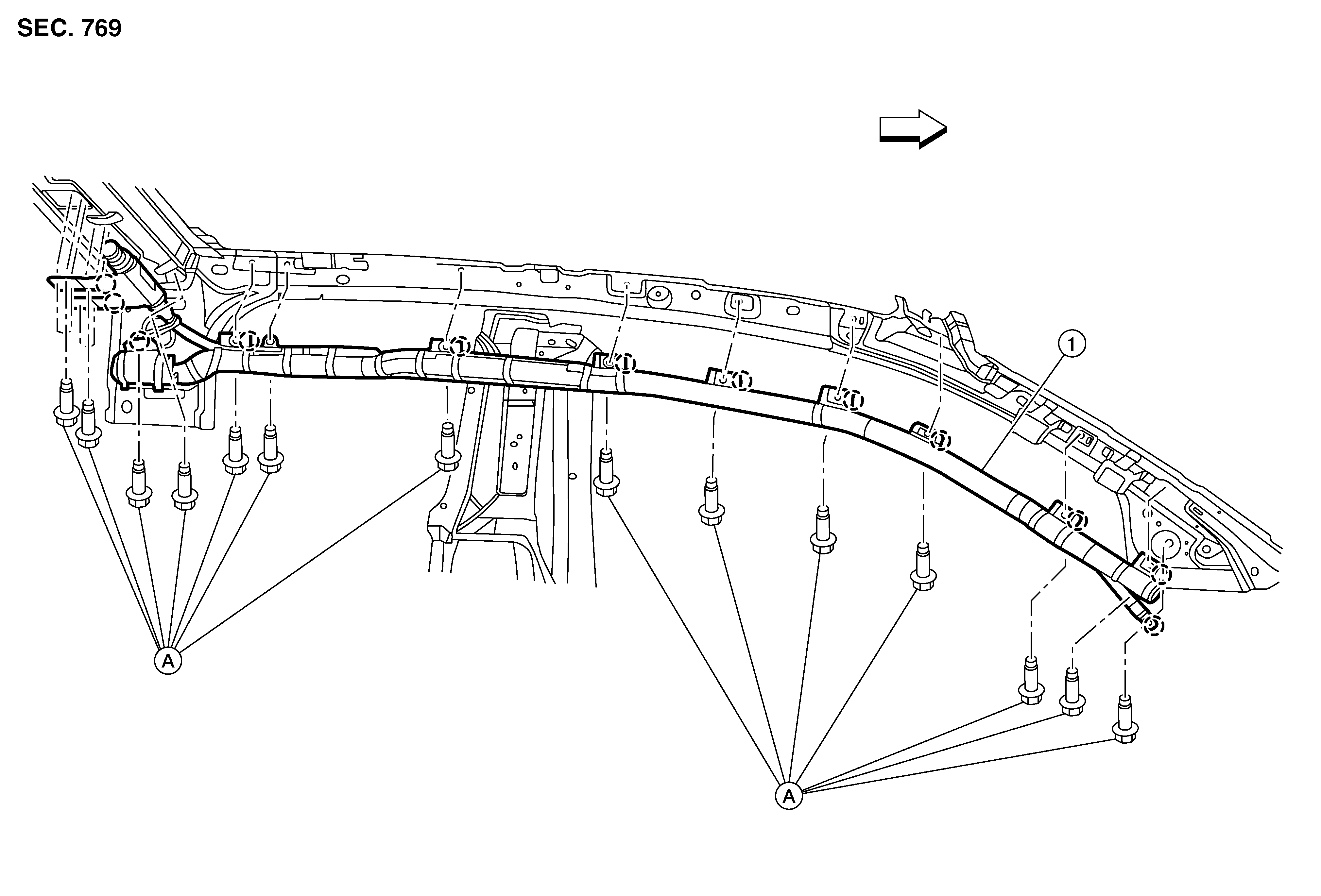

Fig 3: KING CAB ® MODEL

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side curtain air bag module	A.	Refer to INSTALLATION		Support hooks
	Front
