Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|

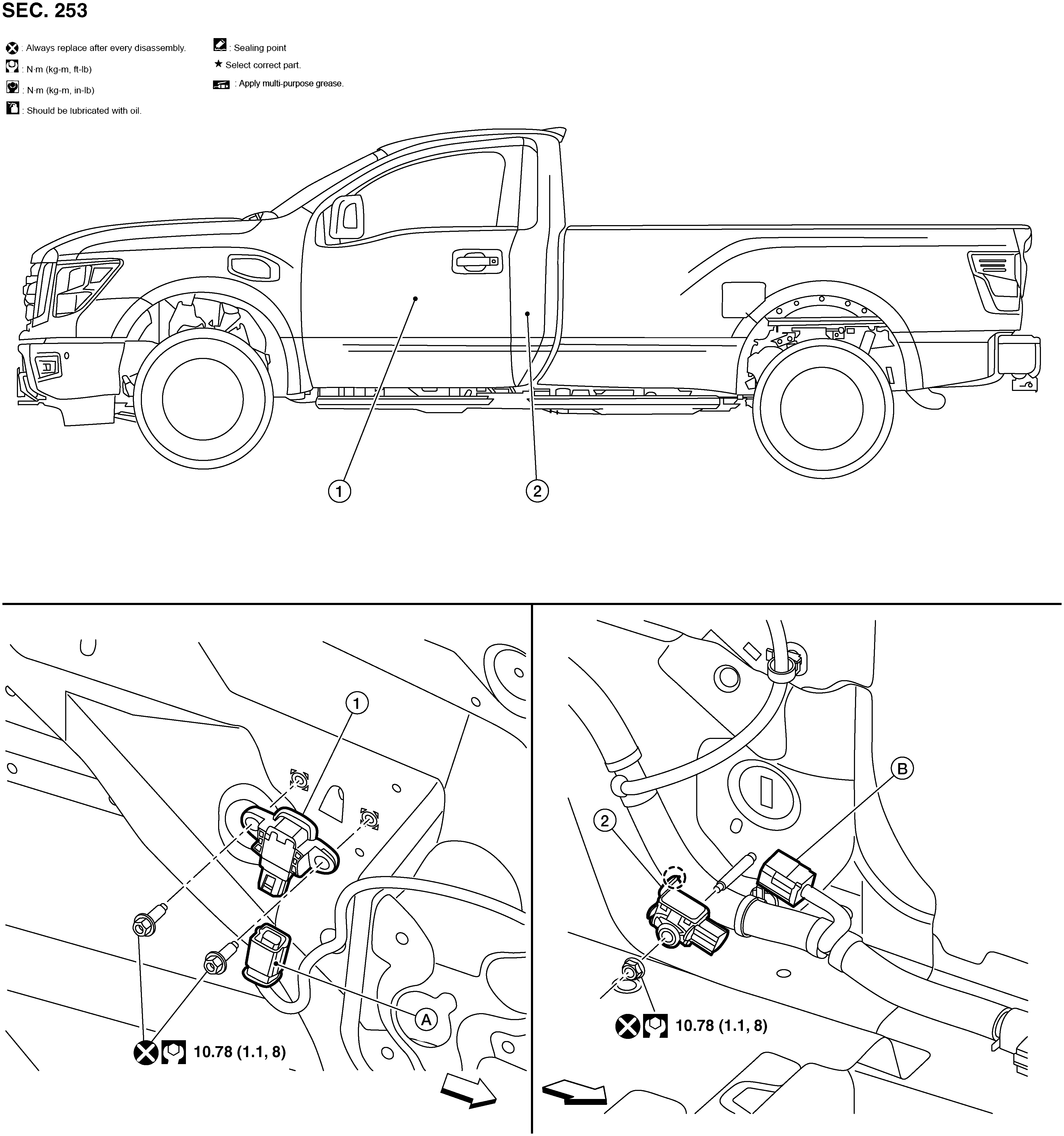

1. |
Front door satellite sensor |
2. |
Side air bag satellite sensor |
A. |
Front door satellite sensor harness connector |
|
B. |
Side air bag satellite sensor harness connector |
|
Pawl |
|
Front |
|

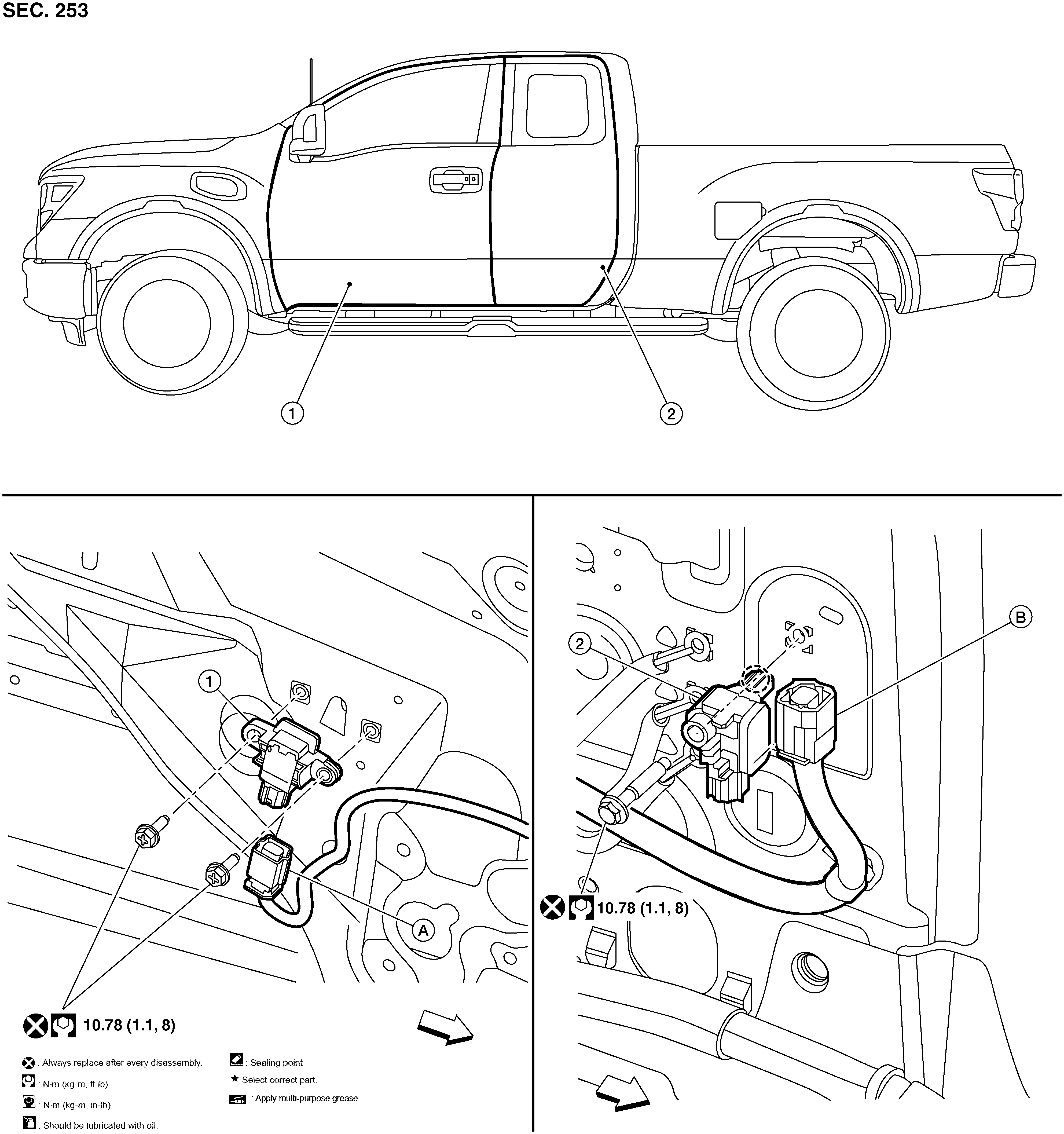

1. |
Front door satellite sensor |
2. |
Side air bag satellite sensor |
A. |
Front door satellite sensor harness connector |
|
B. |
Side air bag satellite sensor harness connector |
|
Pawl |
|
Front |
|

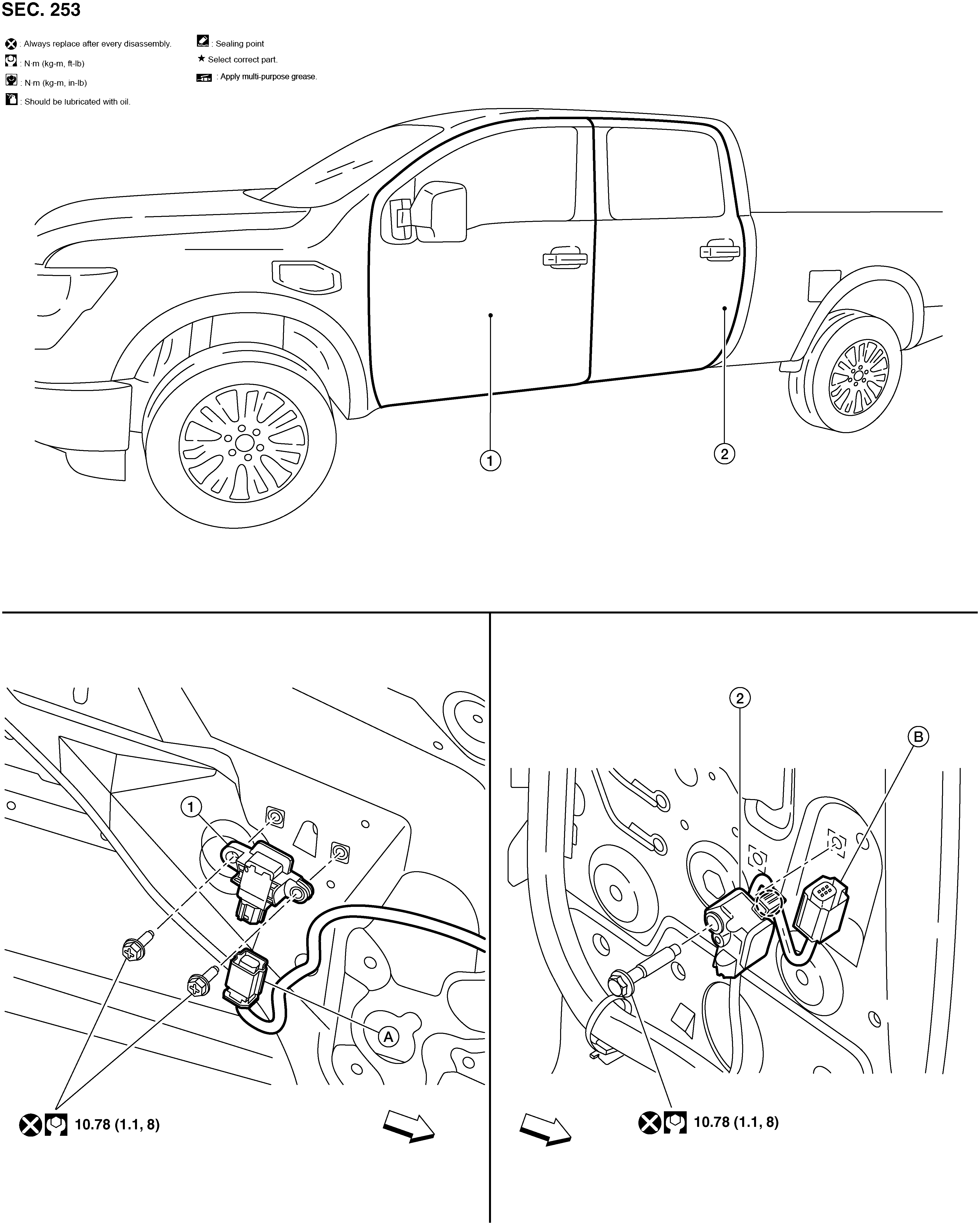

1. |
Front door satellite sensor |
2. |
Side air bag satellite sensor |
A. |
Front door satellite sensor harness connector |
|
B. |
Side air bag satellite sensor harness connector |
|
Pawl |
|
Front |
