Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery or batteries, then wait at least three minutes. Refer to Battery Disconnect .
  2. Remove instrument panel assembly. Refer to Removal and Installation .
  3. Release passenger air bag module harness clip (C) from instrument panel assembly.

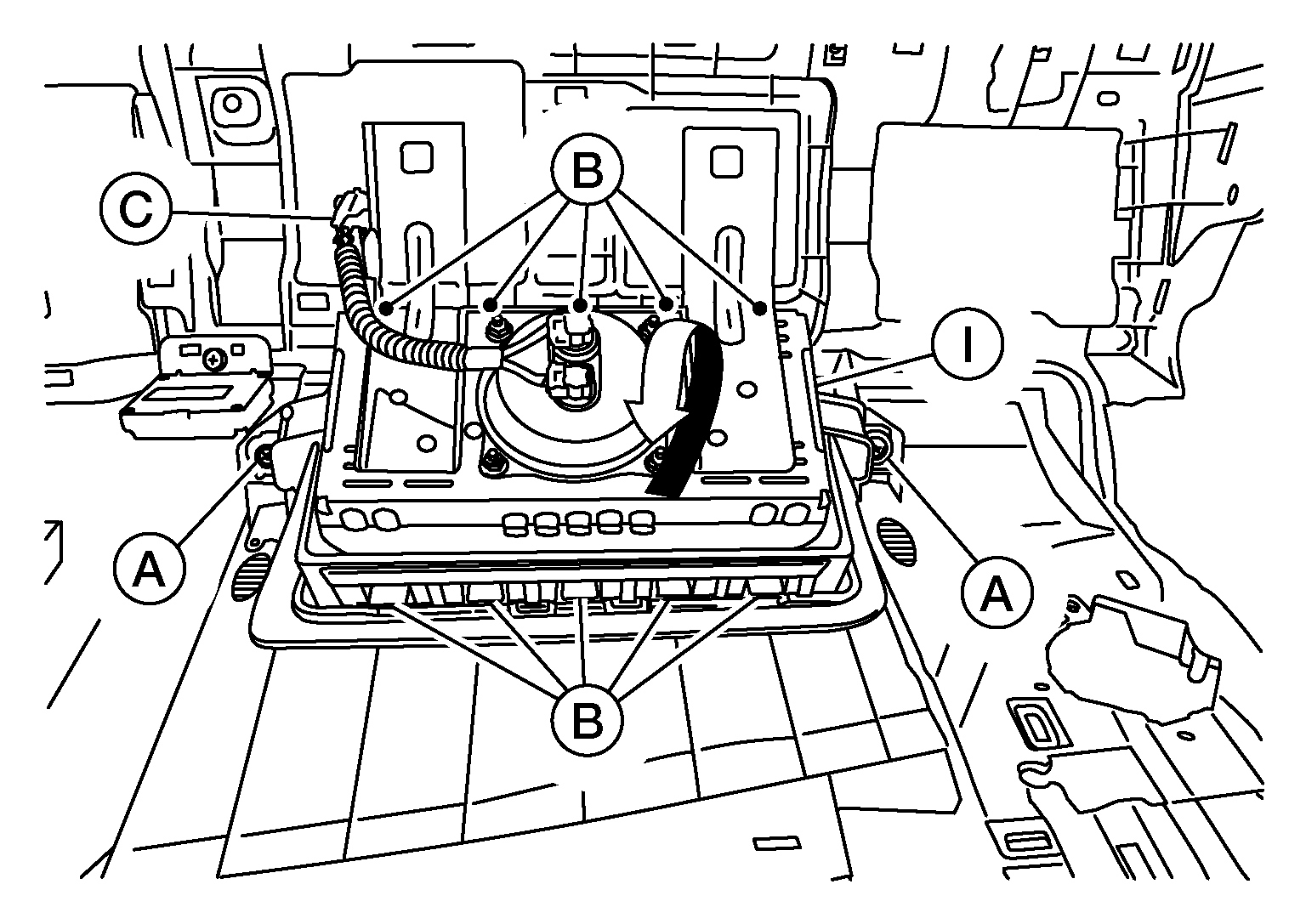

    GNSAWHIA0960Z-960Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove front passenger air bag module screws (A).
  5. Rotate and lift as shown to release pawls (B), then remove front passenger air bag module (1).
    CAUTION:
    • Always place the front passenger air bag module with pad side facing upward as shown.
      GNSAWHIA0403Z-403Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Upward
    • Do not strike the front passenger air bag module.
      GNSJMHIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
    • Replace the front passenger air bag module if it has been dropped or sustained an impact.
    • Do not insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.
    • Do not disassemble the front passenger air bag module.
    • Do not expose the front passenger air bag module to temperatures exceeding 90°C (194°F).
    • Do not allow oil, grease, detergent, or water to come in contact with the front passenger air bag module.
