Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

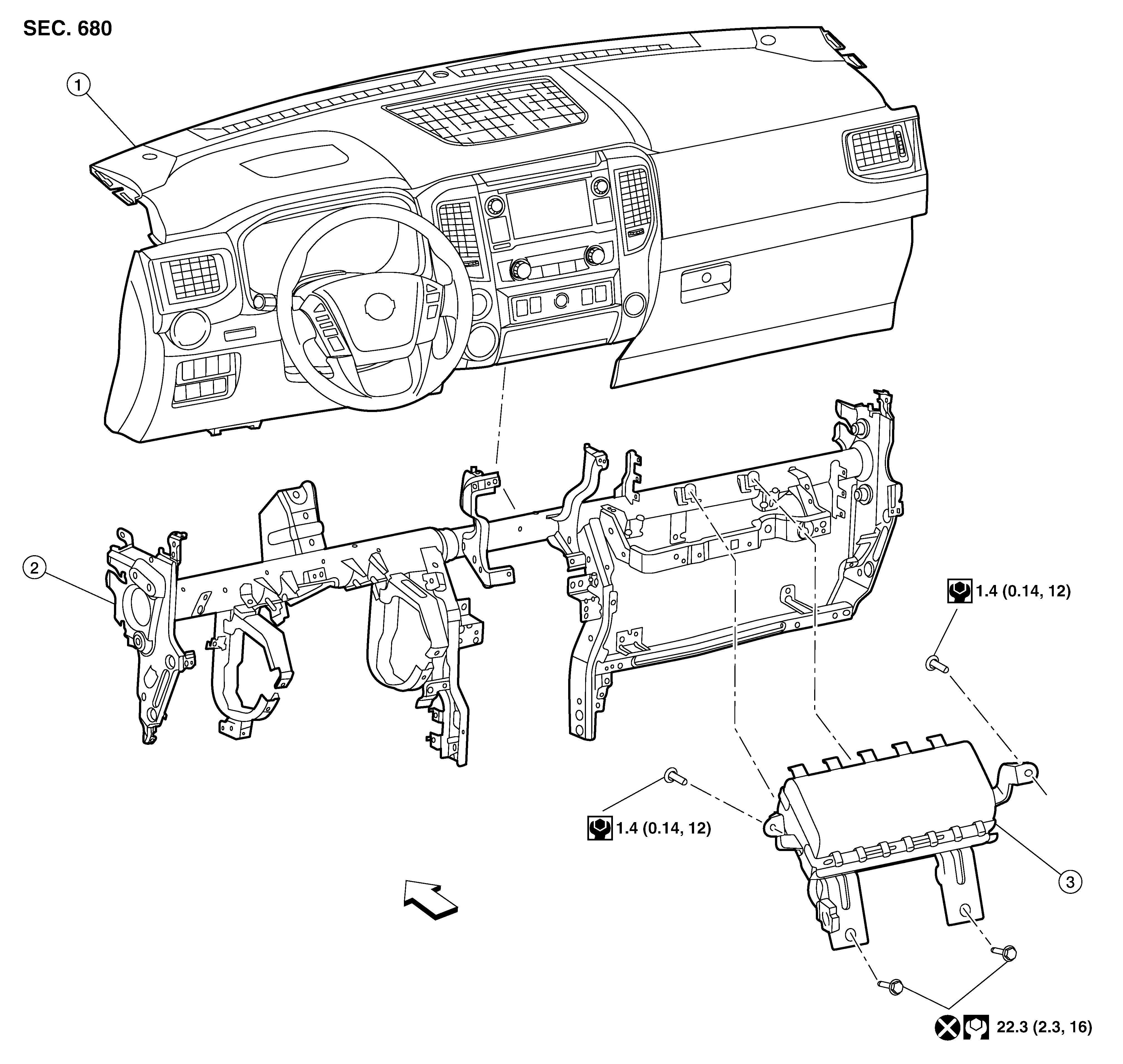

GNSDB124132Courtesy of NISSAN NORTH AMERICA, INC.

1.

Instrument panel assembly

2.

Steering member assembly

3.

Front passenger air bag module

SYMBOL

Front
