Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

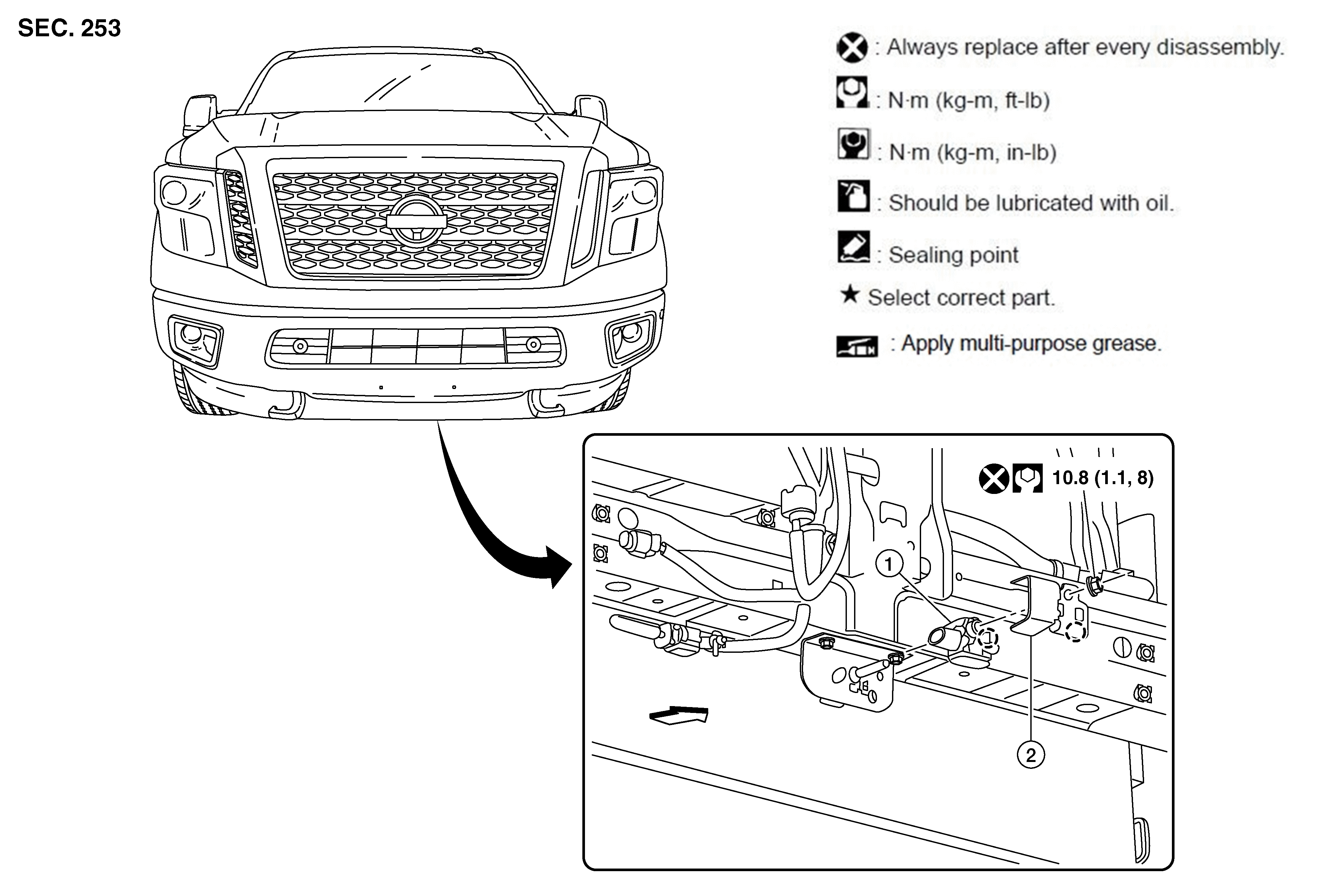

Fig 1: Crash Zone Sensor XD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Crash zone sensor bracket	2.	Crash zone sensor	A.	Crash zone sensor harness connector
	Pawl		Front

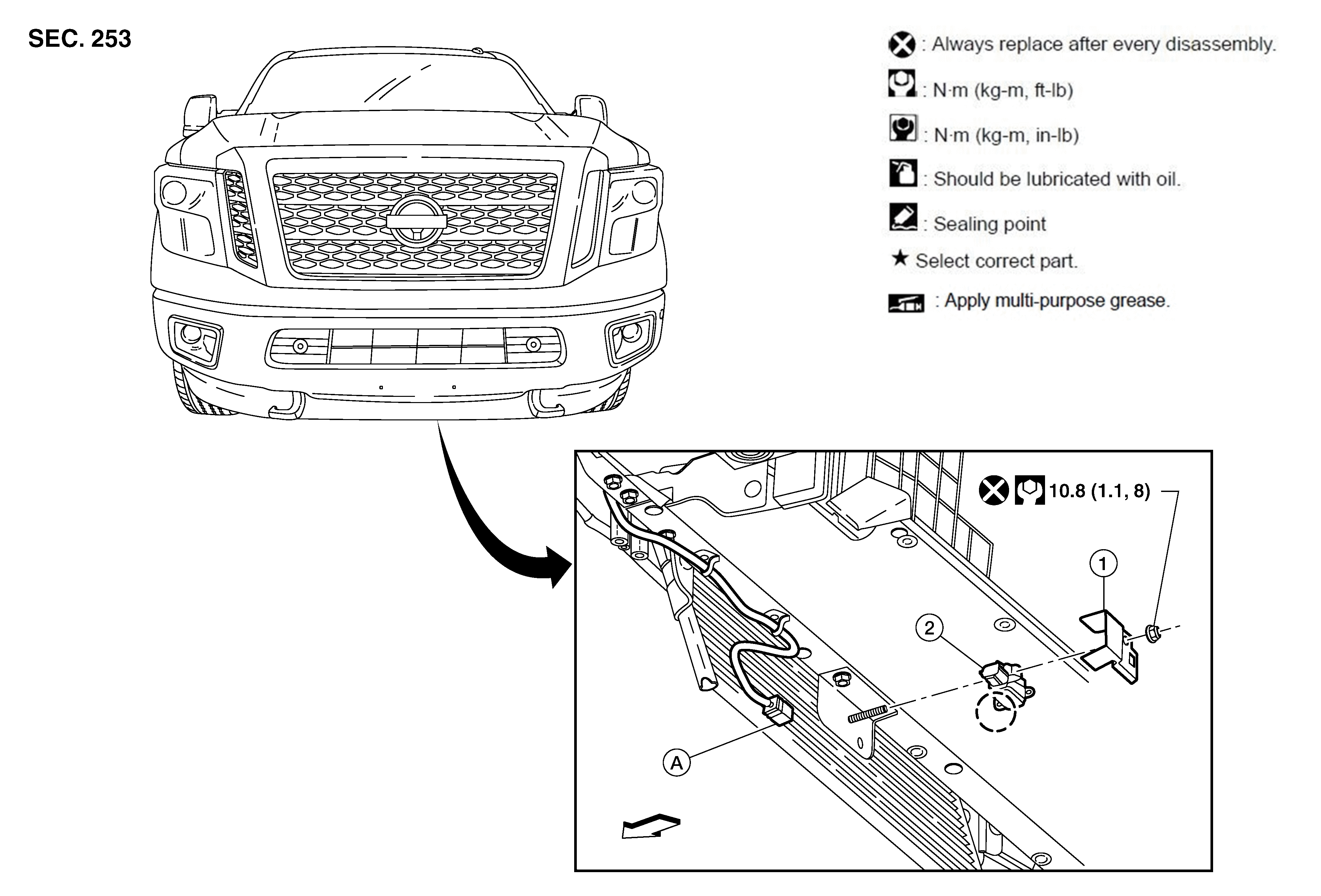

Fig 2: Crash Zone Sensor Non-XD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Crash zone sensor	2.	Crash zone sensor bracket		Pawl
	Front
