Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove box assembly and housing. Refer to Removal and Installation .
  2. Disconnect harness connector from variable blower control.

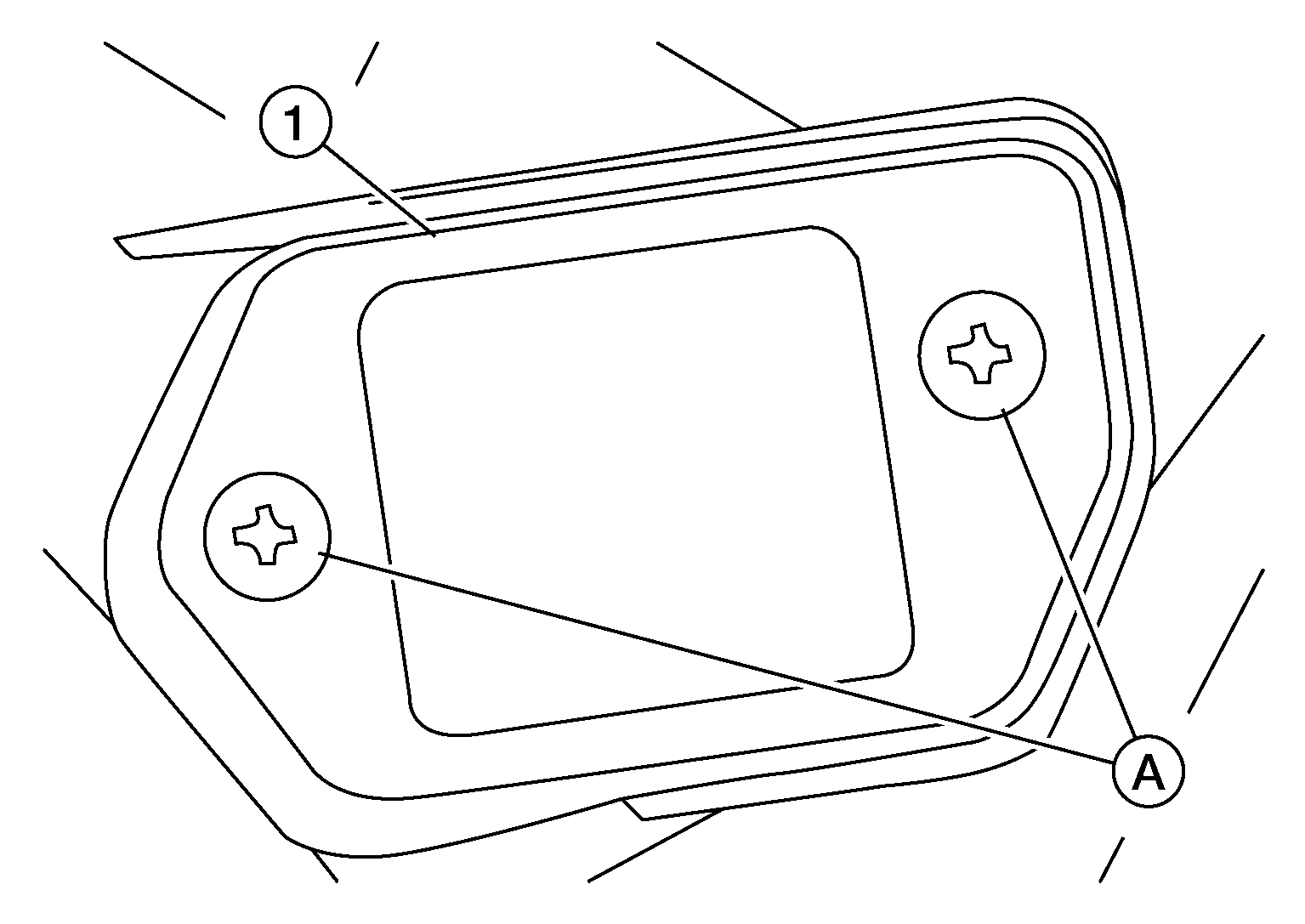

  3. Remove screws (A), then remove variable blower control (1).
GNSALIIA1157Z-157Courtesy of NISSAN NORTH AMERICA, INC.
