Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge refrigerant. Refer to Recycle Refrigerant .
  2. Remove front grille. Refer to Removal and Installation .
  3. Remove active grille shutter (Non-XD Models). Refer to Removal and Installation .
  4. Disconnect harness connector from refrigerant pressure sensor.

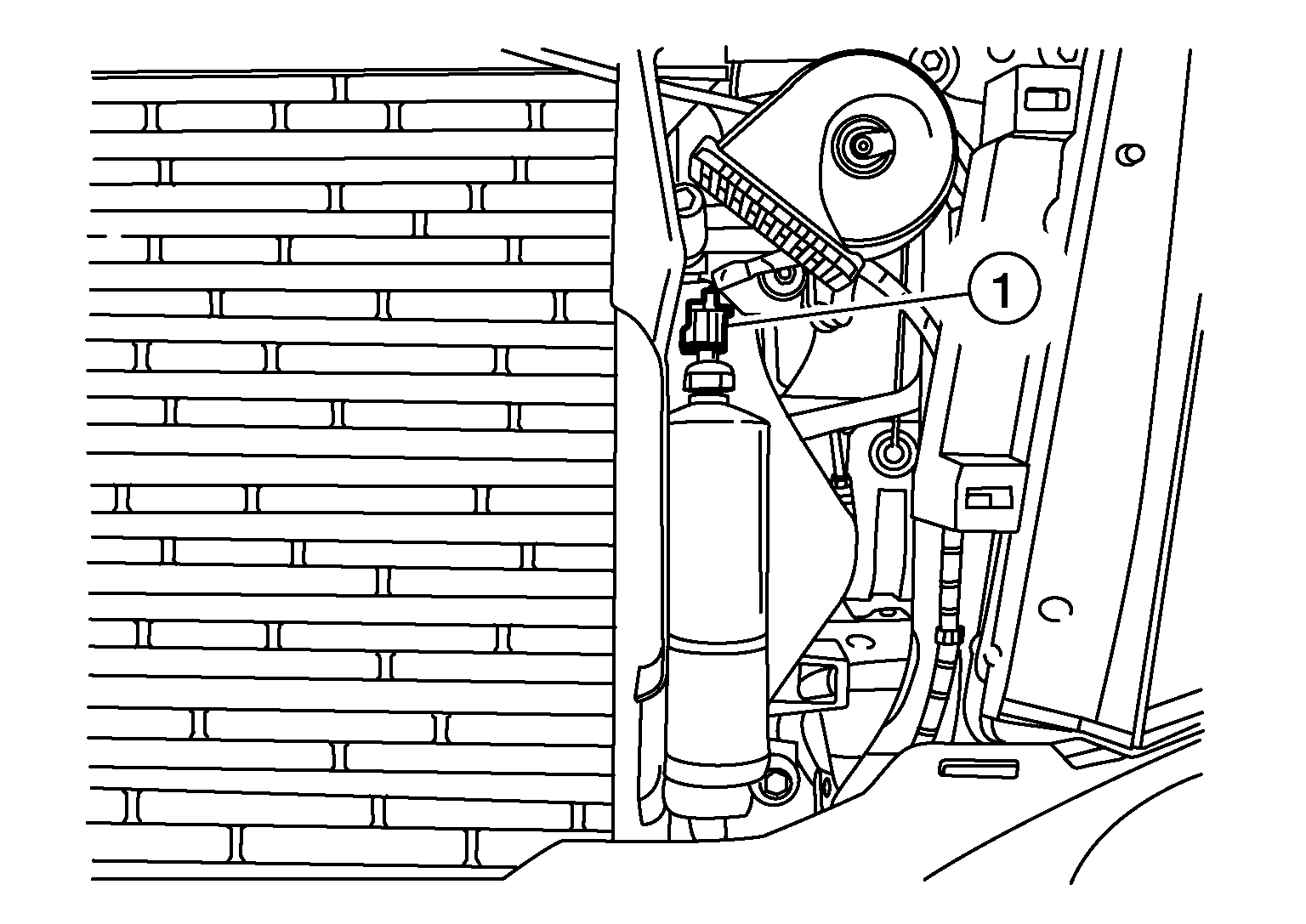

  5. Remove refrigerant pressure sensor (1).
    GNSAWIIA2076Z-076Courtesy of NISSAN NORTH AMERICA, INC.
