Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove evaporator from heating and cooling unit. Refer to Removal and Installation .
- Disconnect harness connector from intake sensor.

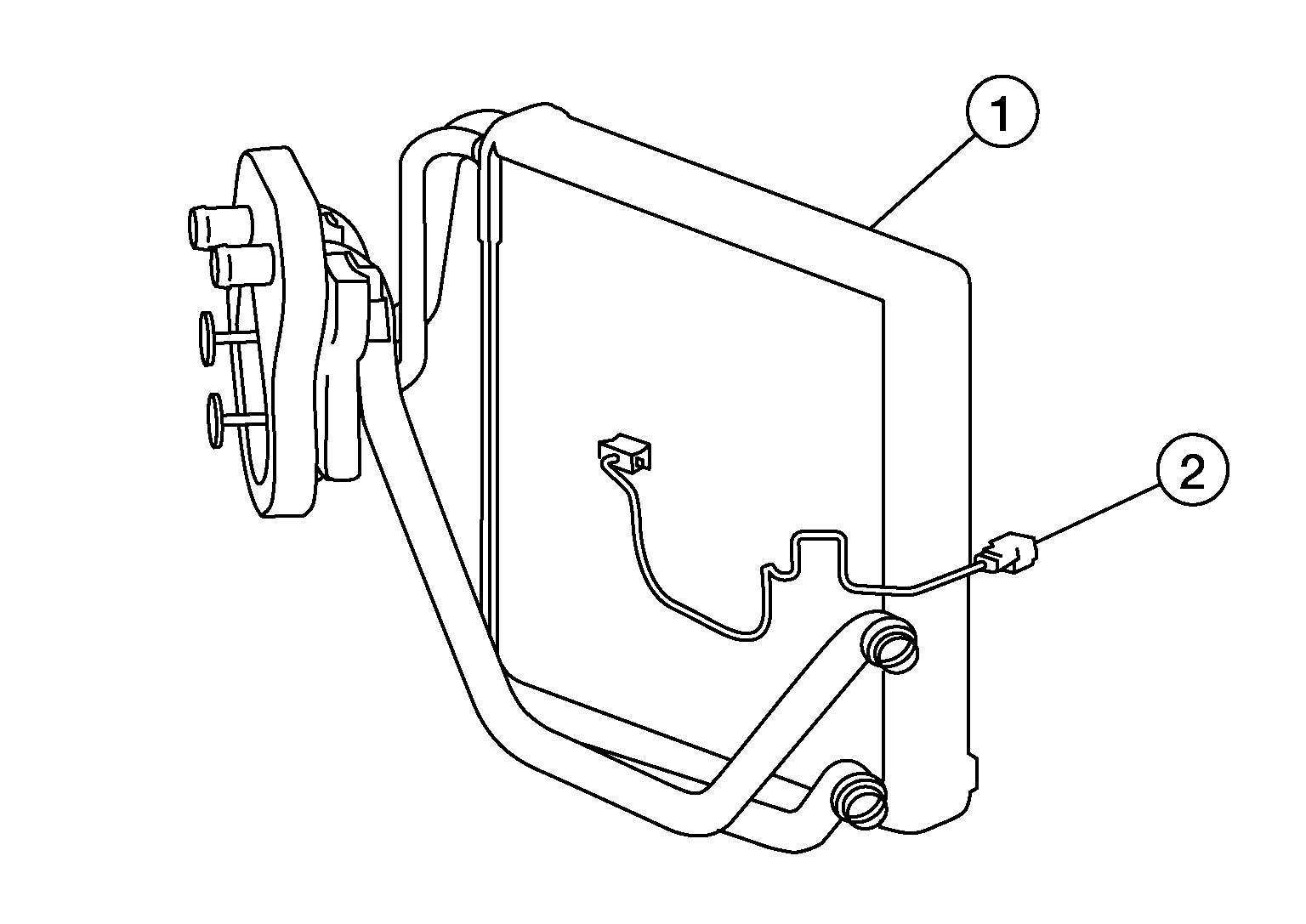

- Remove intake sensor (2) from evaporator (1).CAUTION:
- Mark mounting position of intake sensor.
- Do not damage evaporator core.
