Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front grille. Refer to Removal and Installation .
  2. Disconnect harness connector from ambient sensor.

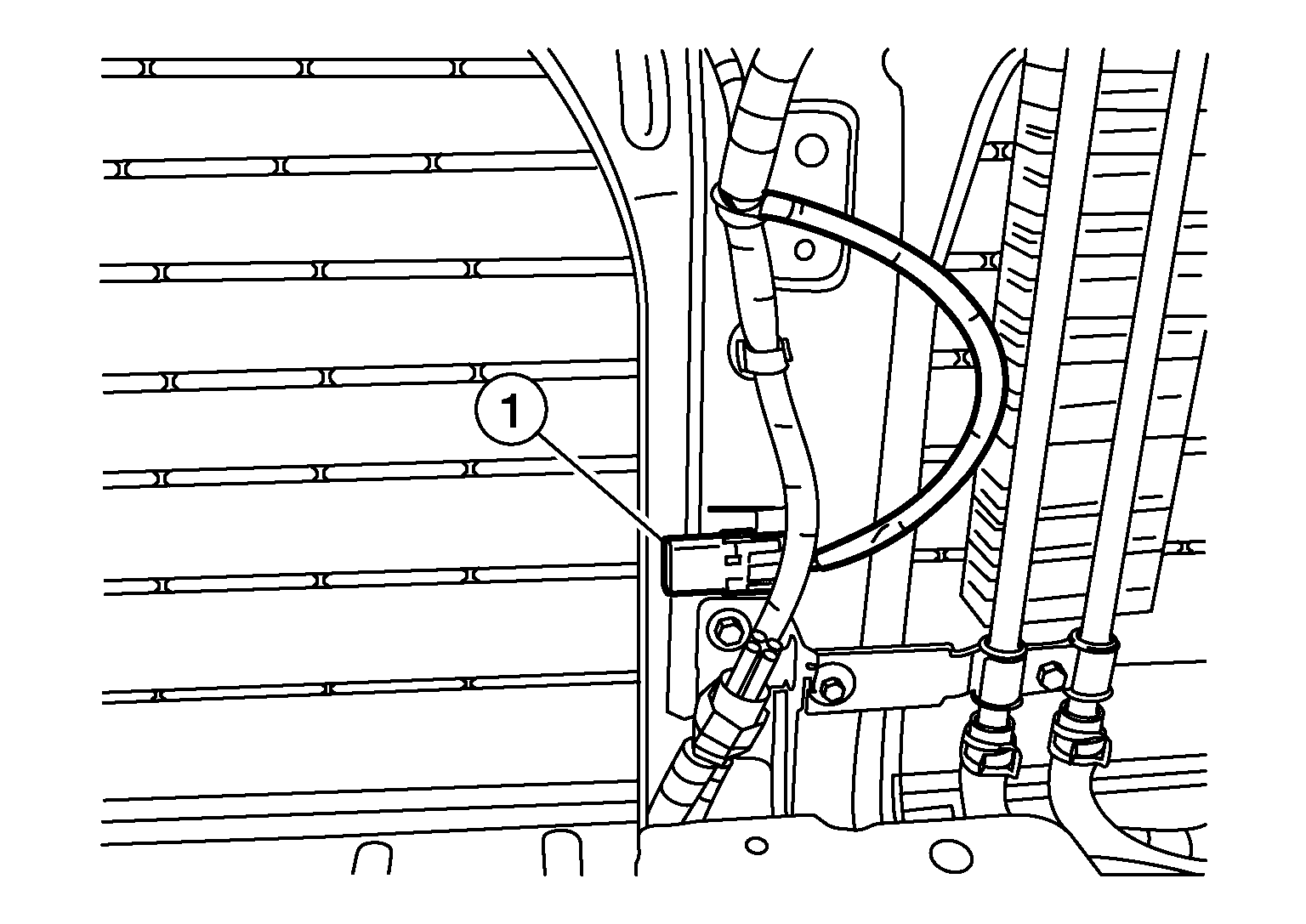

    GNSAWIIA2068Z-068Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove ambient sensor (1).
