Removal - 4WD

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set front wheels and tires in straight-ahead position.
    CAUTION: Secure steering wheel with string so that it will not be rotated out of position and damage spiral cable.
  2. Remove front wheels and tires (LH/RH) using power tool. Refer to Removal and Installation .
  3. Remove engine under cover. Refer to Removal and Installation .
  4. Remove skid plate (if equipped).
  5. Remove power steering pressure and return lines from steering gear.
    CAUTION:
    • Do not reuse drained power steering fluid.
    • Do not loosen steering gear (1) check valve insert (A). Hold in place while loosening high pressure pipe fitting.
      GNSALGIA0371Z-371Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove front final drive. Refer to Removal and Installation (MA210).
  7. Remove stabilizer bar clamp bolts and reposition stabilizer bar. Refer to Removal and Installation - Non-XD Models .

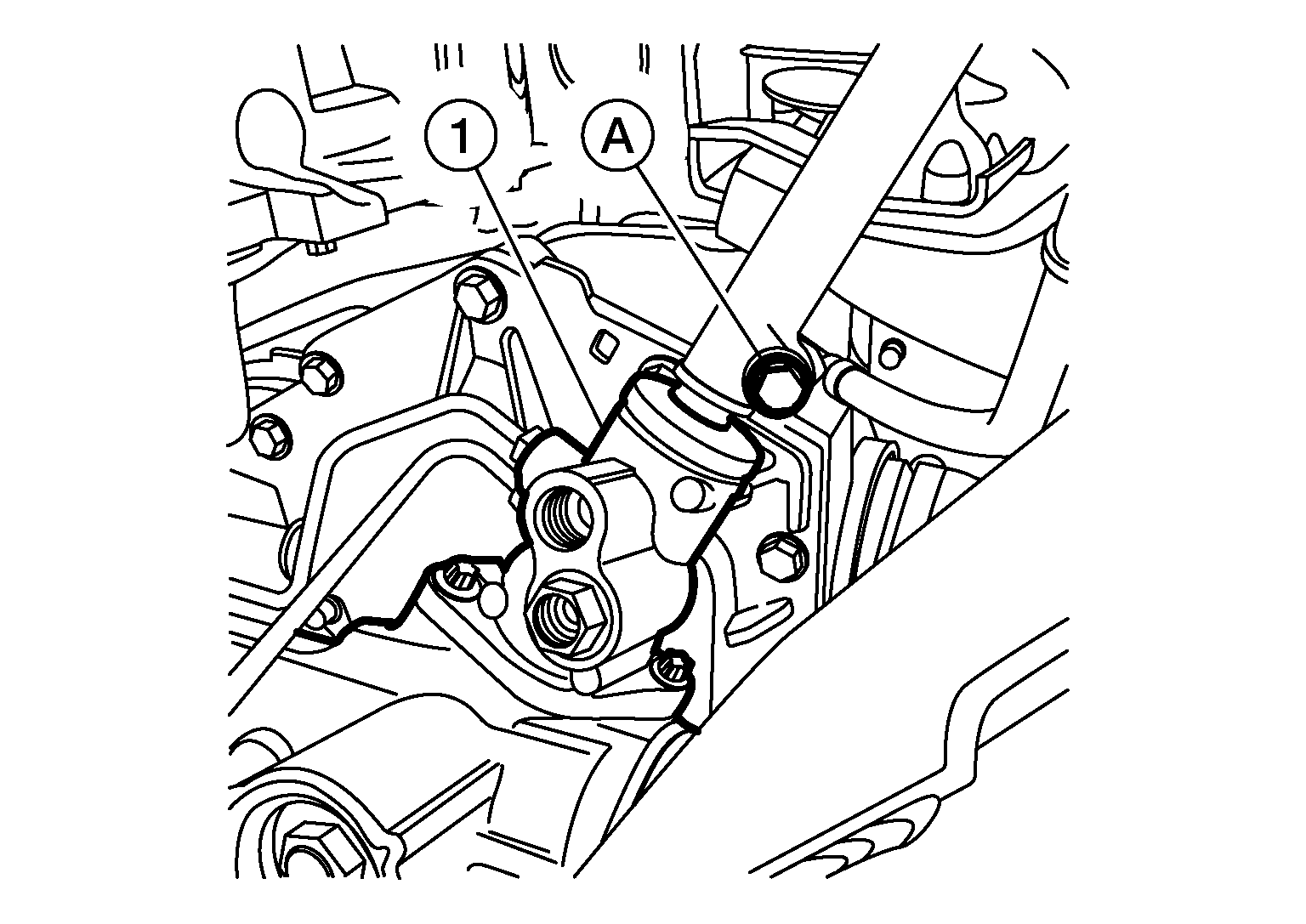

  8. Remove lower joint pinch bolt (A) at steering gear (1). Separate lower joint from steering gear.
    GNSALGIA0338Z-338Courtesy of NISSAN NORTH AMERICA, INC.

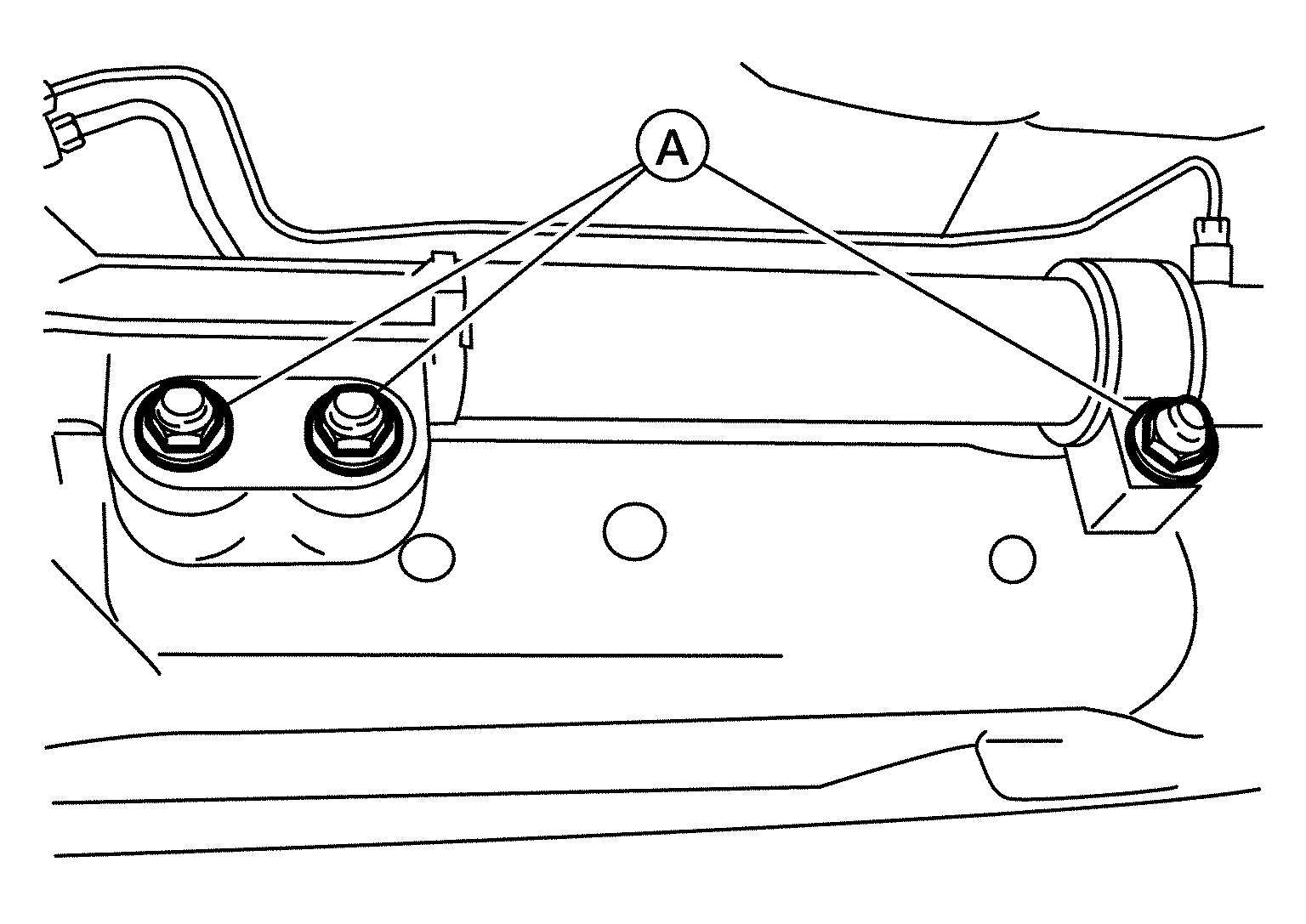

  9. Remove nuts (A) and bolts and remove steering gear.
    GNSAWGIA0480Z-480Courtesy of NISSAN NORTH AMERICA, INC.
