Installation - 2WD

Installation is in the reverse order of removal.

Install frame components in the following sequence:

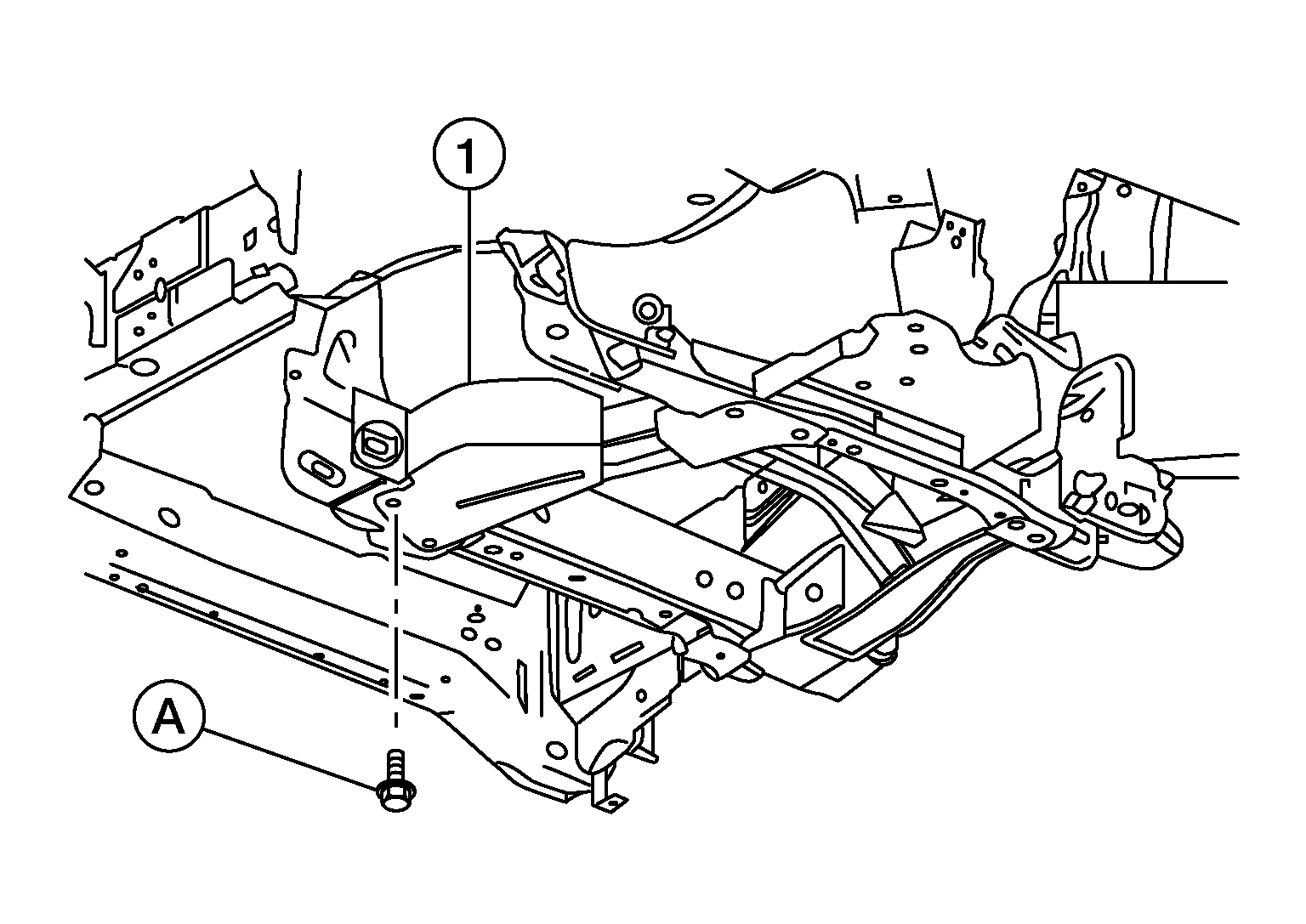

1. Install diagonal member (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

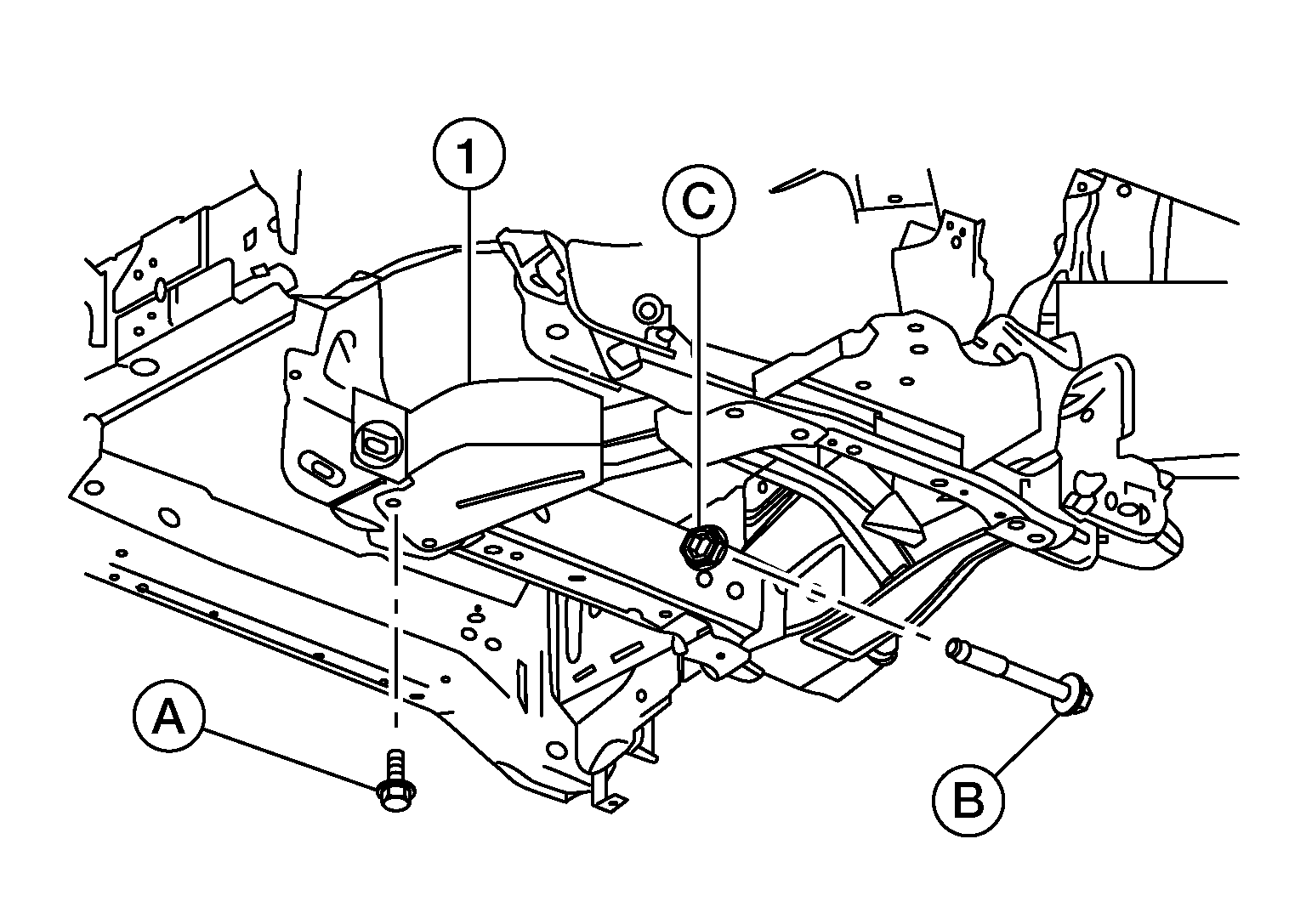

2. Temporarily install bolt (A) finger tight.
3. Install differential mounting bolt (B) and nut (C) finger tight, then tighten to specification.

   Nut (C)

   : 210 Nm (21 kg-m, 155 ft-lb)

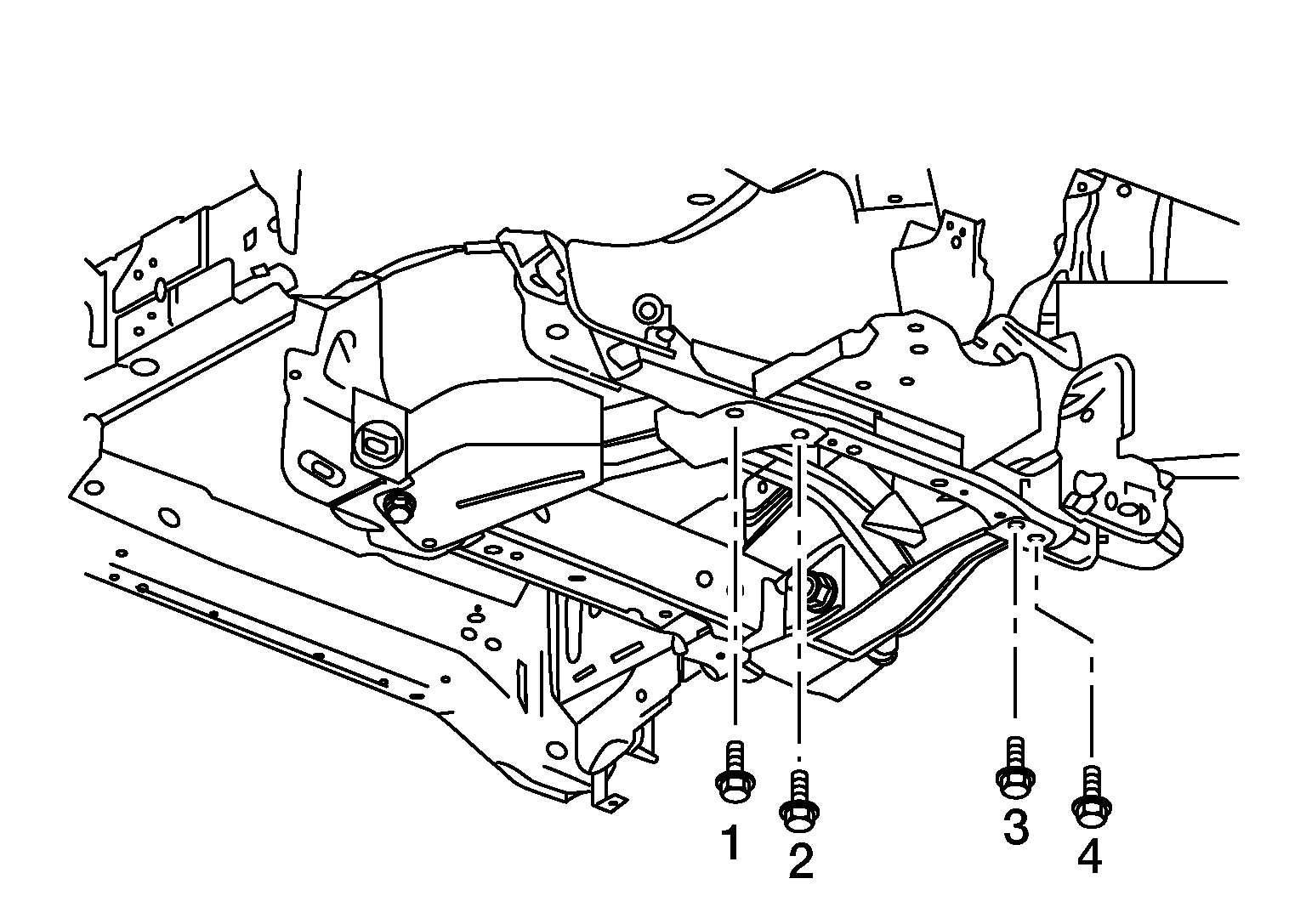

4. Install diagonal member bolts finger tight, then tighten to specification in sequence as shown.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Bolts 1 - 4

   : 80.0 Nm (8.2 kg-m, 59 ft-lb)

5. Remove bolt (A) from diagonal member (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

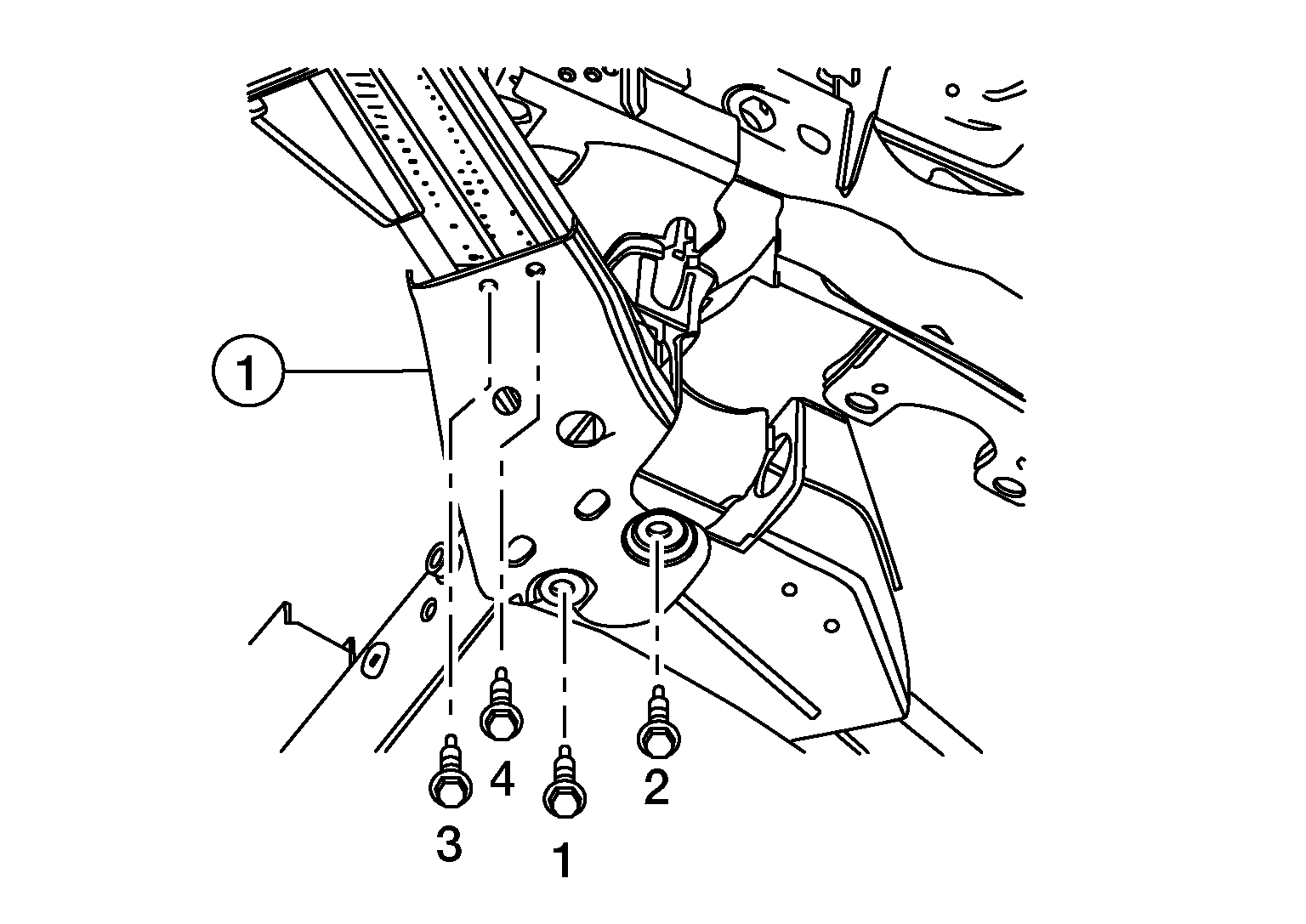

6. Install front suspension member reinforcement [LH (1)] bolts finger tight, then tighten to specification in sequence as shown.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Bolts 1 - 4

   : 80.0 Nm (8.2 kg-m, 59 ft-lb)

Remaining components are installed in the reverse order of removal.

• Fill power steering fluid. Refer to Refilling and Air Bleeding Hydraulic System .
• Bleed air from power steering system. Refer to Refilling and Air Bleeding Hydraulic System .
• Check for power steering leaks. Refer to Fluid Leak Inspection .
• Check wheel alignment. Refer to Inspection .
• Adjust neutral position of steering angle sensor. Refer to Description .
