Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

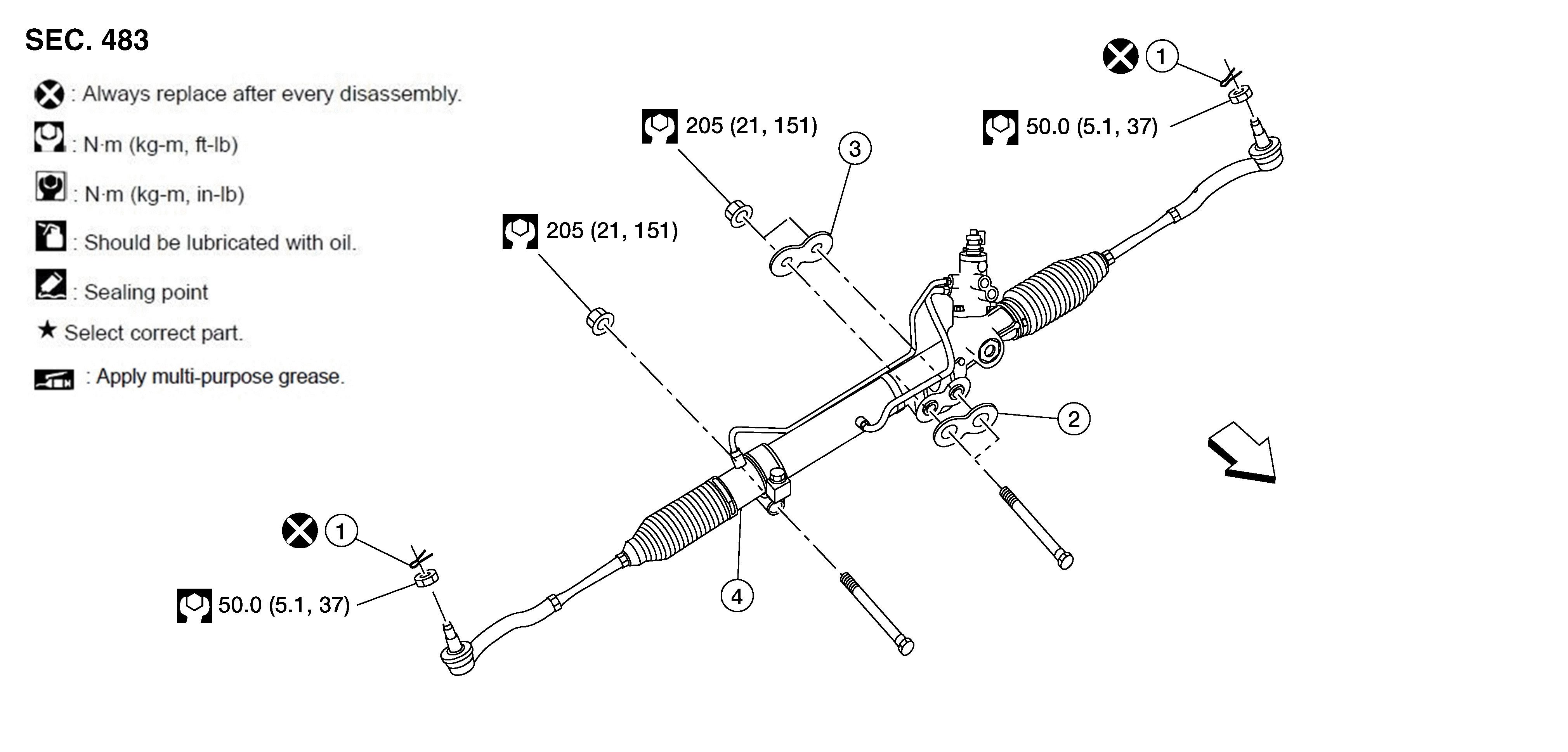

Fig 1: Steering Gear And Linkage Unit Removal And Installation With Torque Specifications
GNSAWGIA0467Z-467Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cotter pin

2.

Insulator

3.

Washer

4.

Steering gear

SYMBOL

Vehicle front
