Steering Linkage - Non-XD Models
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
Outer socket |
Swinging torque |
0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3 - 25 in-lb) |
|
|
Rotating torque |
0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3 - 25 in-lb) |
||
|
Axial end play |
0.5 mm (0.020 in) or less |
||
|
Inner socket |
Swinging torque |
1.0 - 7.8 N.m (0.11 - 0.79 kg-m, 9 - 69 in-lb) |
|
|
Axial end play |
0.2 mm (0.008 in) or less |
||
Unit: mm (in)
|

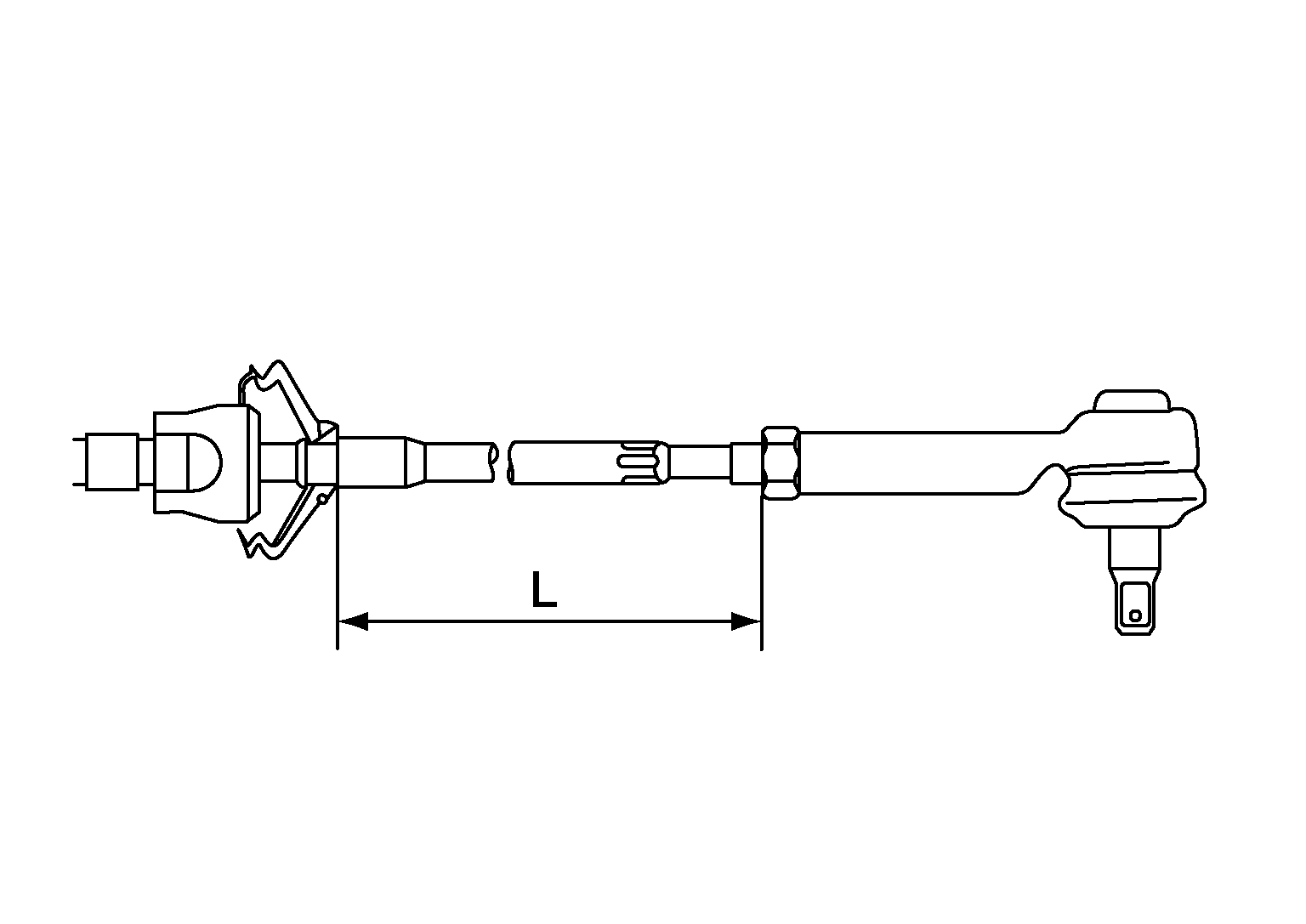

Inner socket length (L) |
Normal (before toe adjust) |
109.7 (4.319) |
|
Maximum (after toe adjust) |
124.2 (4.890) |
|
