Steering Gear - Non-XD Models

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Unit: mm (in)

Courtesy of NISSAN NORTH AMERICA, INC.
Item		Standard

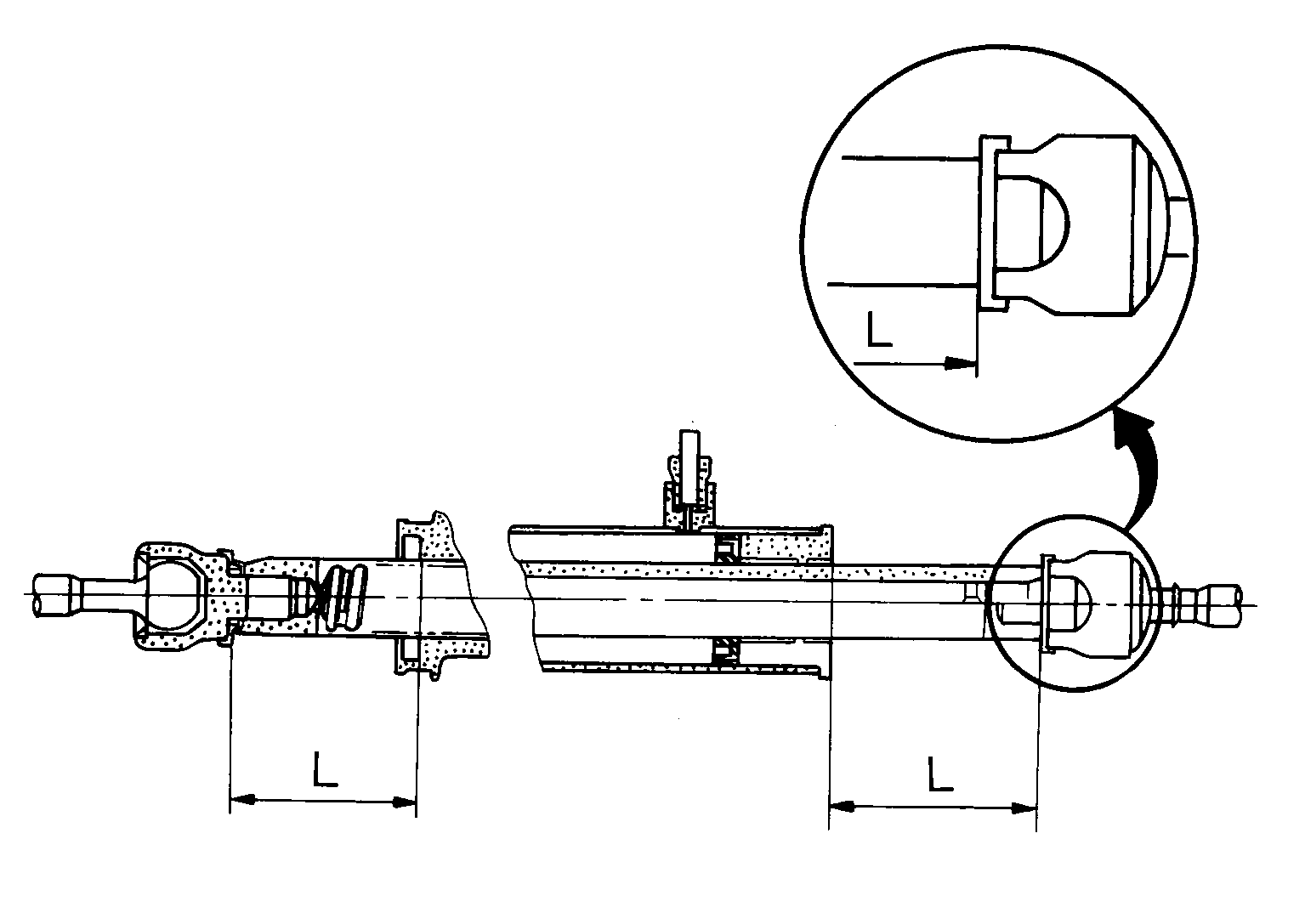

Rack stroke neutral position (L)		85.5 (3.360)
Rack sliding force		191-249 N (19.5-25.4 kg-f, 42.9-56.0 lb-f)
