Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set front wheels in the straight-ahead position.
  2. Remove driver air bag module. Refer to Removal and Installation .
  3. Disconnect harness connector from steering wheel heater (if equipped).
  4. Disconnect harness connector from steering switches.
  5. Remove steering wheel lock nut.
    CAUTION: Do not reuse steering wheel lock nut.
  6. Remove steering wheel using suitable tool.
    CAUTION: Place a piece of tape across spiral cable so it will not be rotated out of position.
  7. Inspect steering wheel near puller holes for damage. If damaged, replace steering wheel.

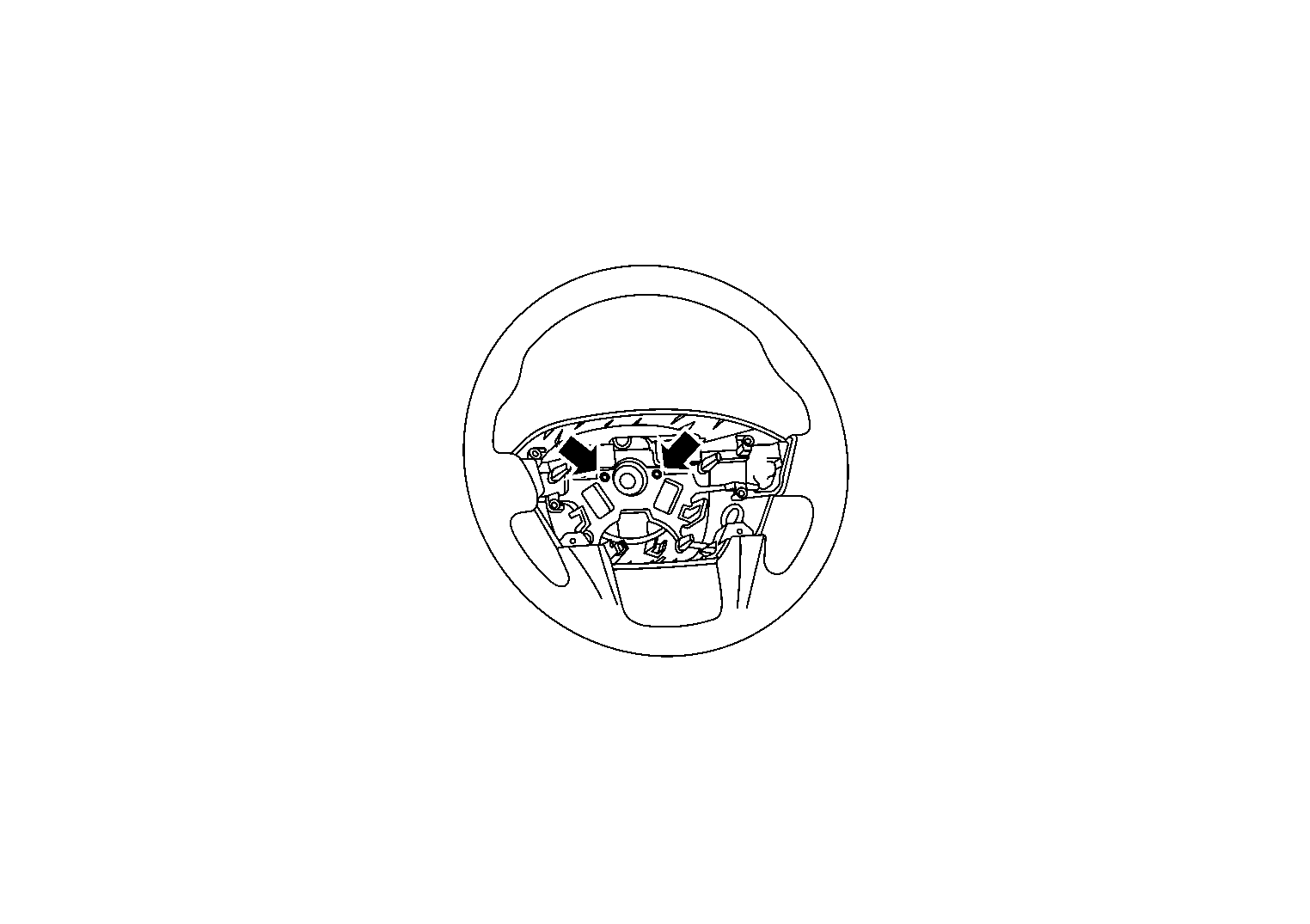

    GNSDB119509Courtesy of NISSAN NORTH AMERICA, INC.
  8. If necessary, remove steering switches. Refer to Removal and Installation (DISPLAY AUDIO), Removal and Installation (NAVIGATION WITHOUT AMPLIFIER), or Removal and Installation (NAVIGATION WITH AMPLIFIER).
