Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

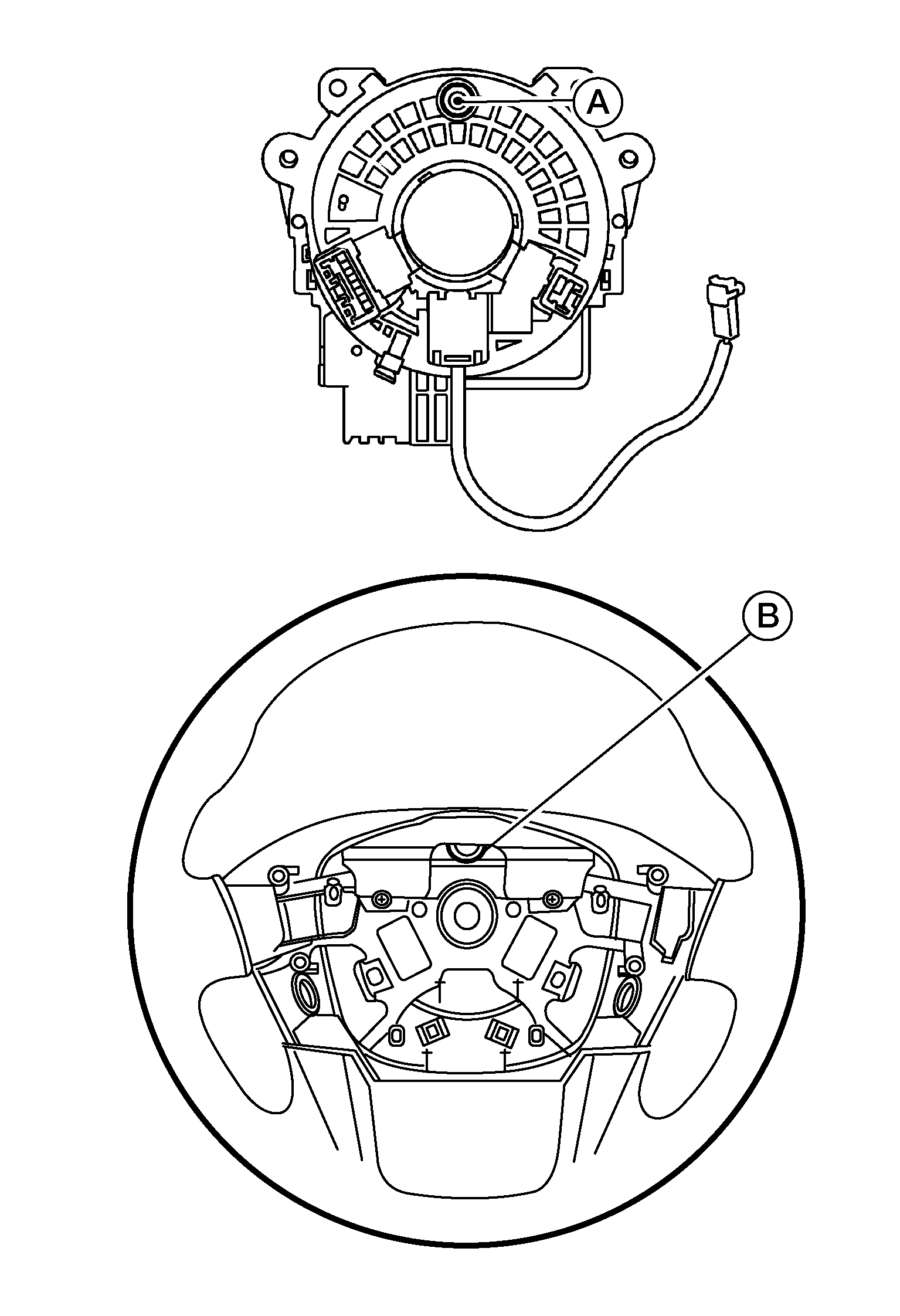

- Align spiral cable correctly before installing steering wheel. Make sure that spiral cable is in neutral position ending up with locating pin (A) on top. Refer to Removal and Installation .
- During steering wheel installation, make sure locating pin hole (B) is aligned with locating pin of spiral cable (A).
CAUTION:
- If cable is not installed in correct position, spiral cable may snap by turning steering wheel beyond limited number of turns.
- Do not reuse steering wheel lock nut.
