Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering box. Refer to Removal and Installation .

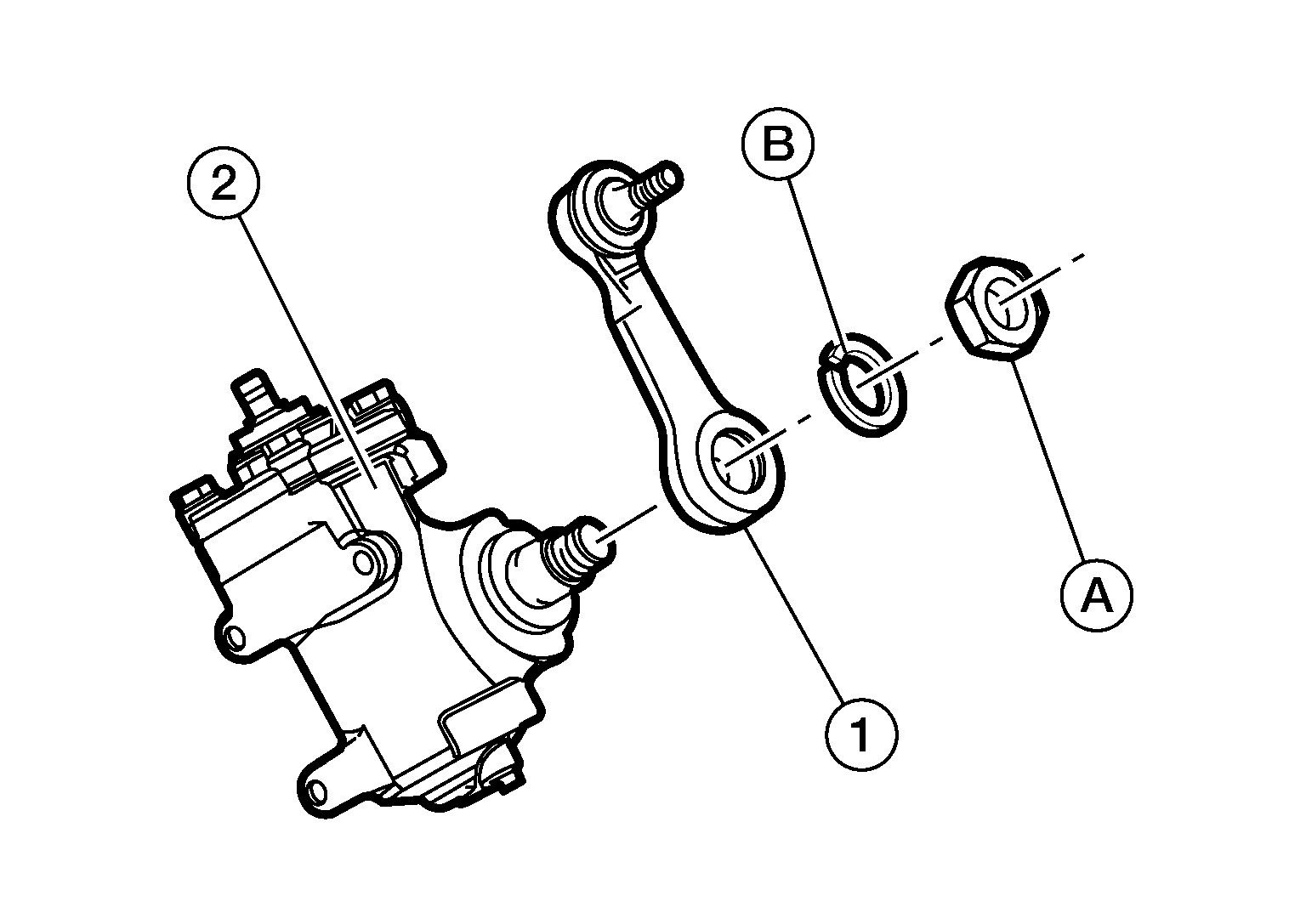

  2. Remove pitman arm nut (A) and lock washer (B).
    GNSAWGIA0421Z-421Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove pitman arm (1) from steering box (2) using suitable tool.
