Removal and Installation - Outer Socket: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel and tire assembly using power tool. Refer to Removal and Installation .

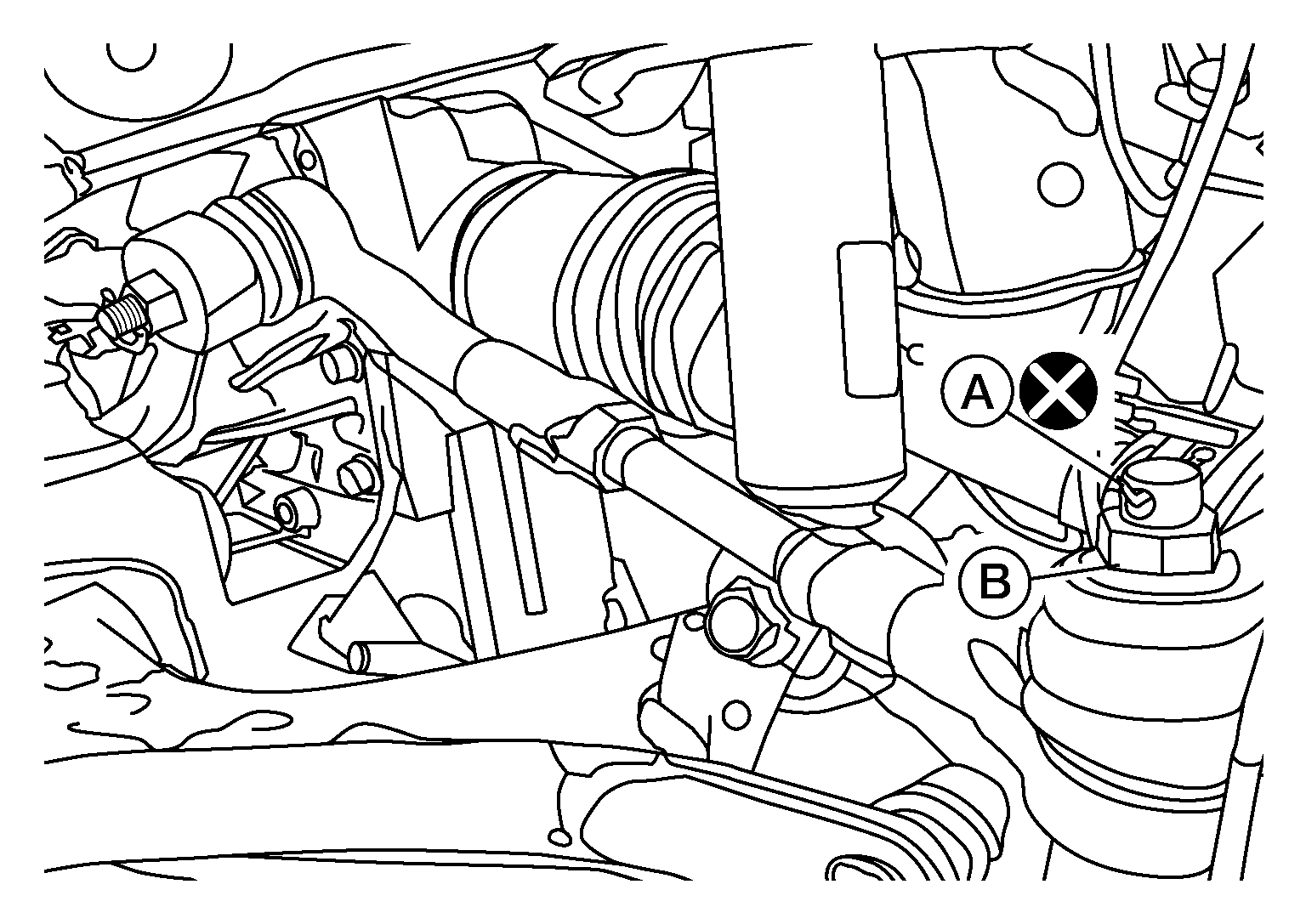

  2. Remove cotter pin (A) and loosen nut (B) from outer socket. Discard cotter pin.
    GNSALGIA0285Z-285Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse cotter pin.
    NOTE: 4WD model shown, 2WD model similar.
  3. Separate outer socket from steering knuckle using suitable tool.
    CAUTION: Leave outer socket nut half threaded on outer socket to prevent damage to threads and to prevent suitable tool from coming off suddenly.
  4. Remove outer socket nut and remove outer socket.
