Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

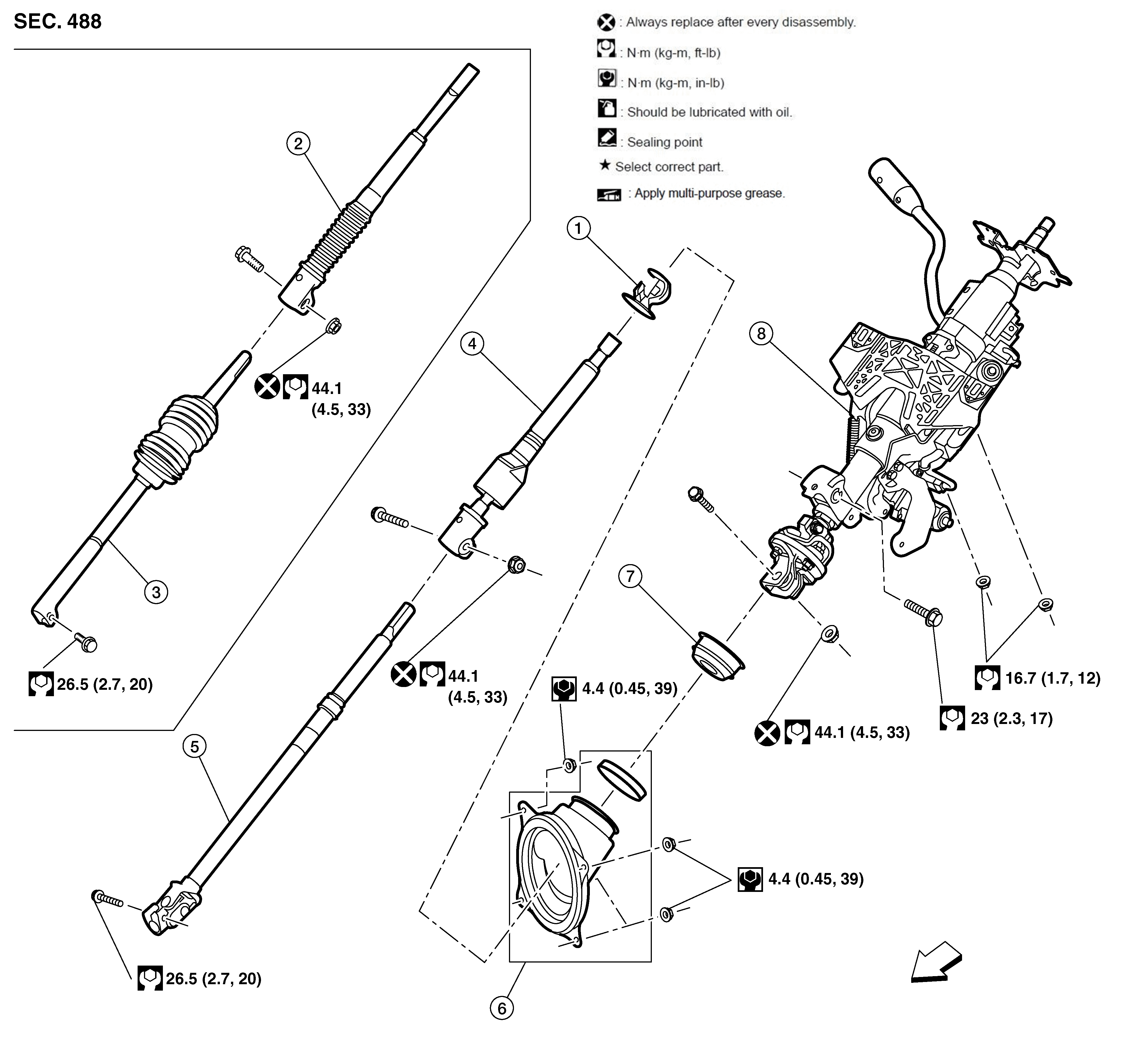

Fig 1: Steering Column With Torque Specifications (Mechanical)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column collar	2.	Intermediate shaft - (Non-XD models)	3.	Steering lower joint - (Non-XD Models)
4.	Intermediate shaft - (XD models)	5.	Steering lower joint - (XD Models)	6.	Hole cover and clamp
7.	Hole cover seal	8.	Steering column		Front

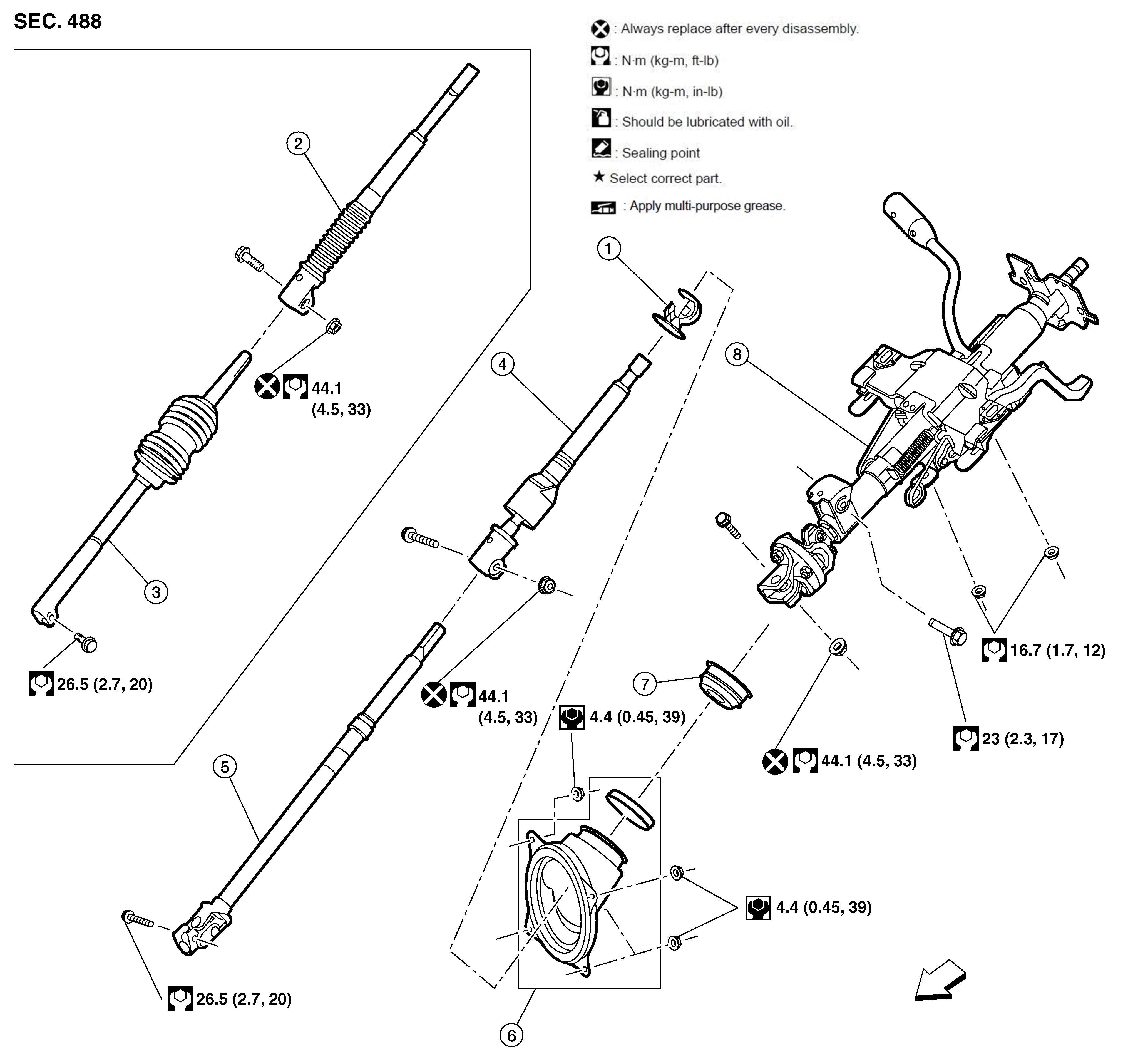

Fig 2: Steering Column With Torque Specifications (Electric)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column collar	2.	Intermediate shaft - Non-XD Models	3.	Steering lower joint - Non-XD Models
4.	Intermediate shaft - XD Models	5.	Steering lower joint - XD Models	6.	Hole cover and clamp
7.	Hole cover seal	8.	Steering column		Front
