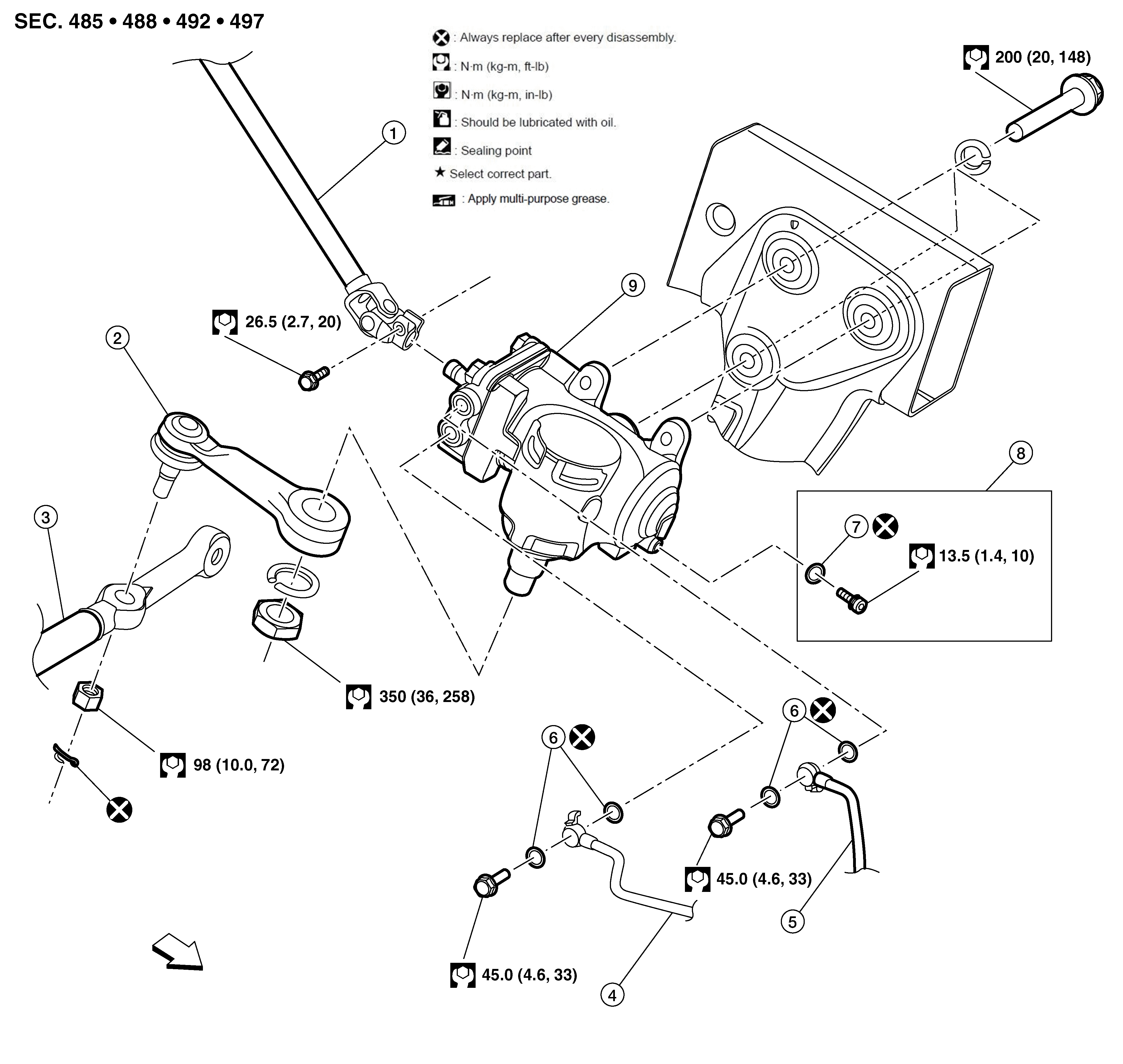

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Steering lower joint
|
2.
|
Pitman arm
|
3.
|
Relay rod
|
|
4.
|
Power steering return line
|
5.
|
Power steering pressure line
|
6.
|
Copper sealing washer
|
|
7.
|
Drain plug o-ring
|
8.
|
Drain plug
|
9.
|
Steering box
|
|
|
Front
|
