Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

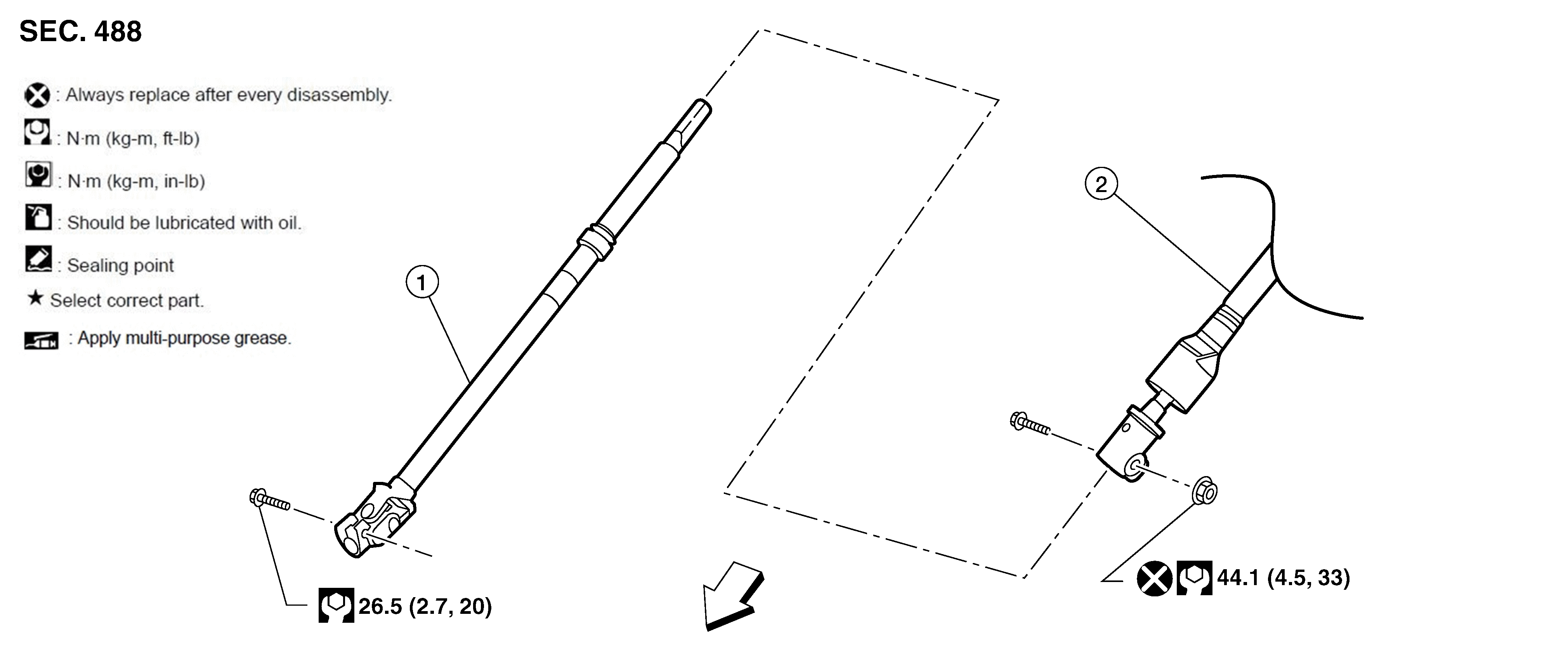

Fig 1: Lower Joint With Torque Specifications (XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Lower joint

Intermediate shaft

Front

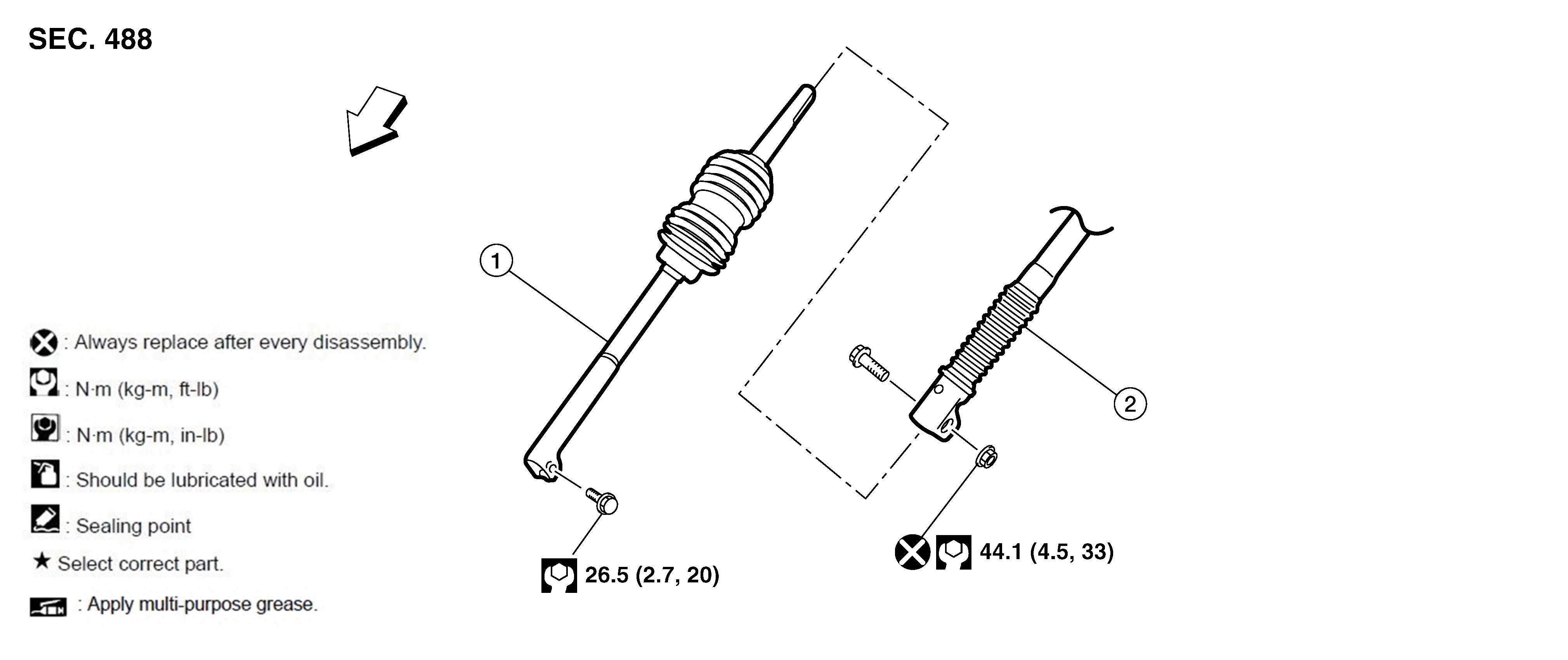

Fig 2: Lower Joint Replacement Components With Torque Specifications (Non-XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Lower joint

Intermediate shaft

Front
