Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set front wheels and tires in straight-ahead position.
    CAUTION: Secure steering wheel with string so that it will not be rotated out of position and damage spiral cable.
  2. Remove nut (A) and pinch bolt (B) from steering column joint.
    GNSAWGIA0423Z-423Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse nut.

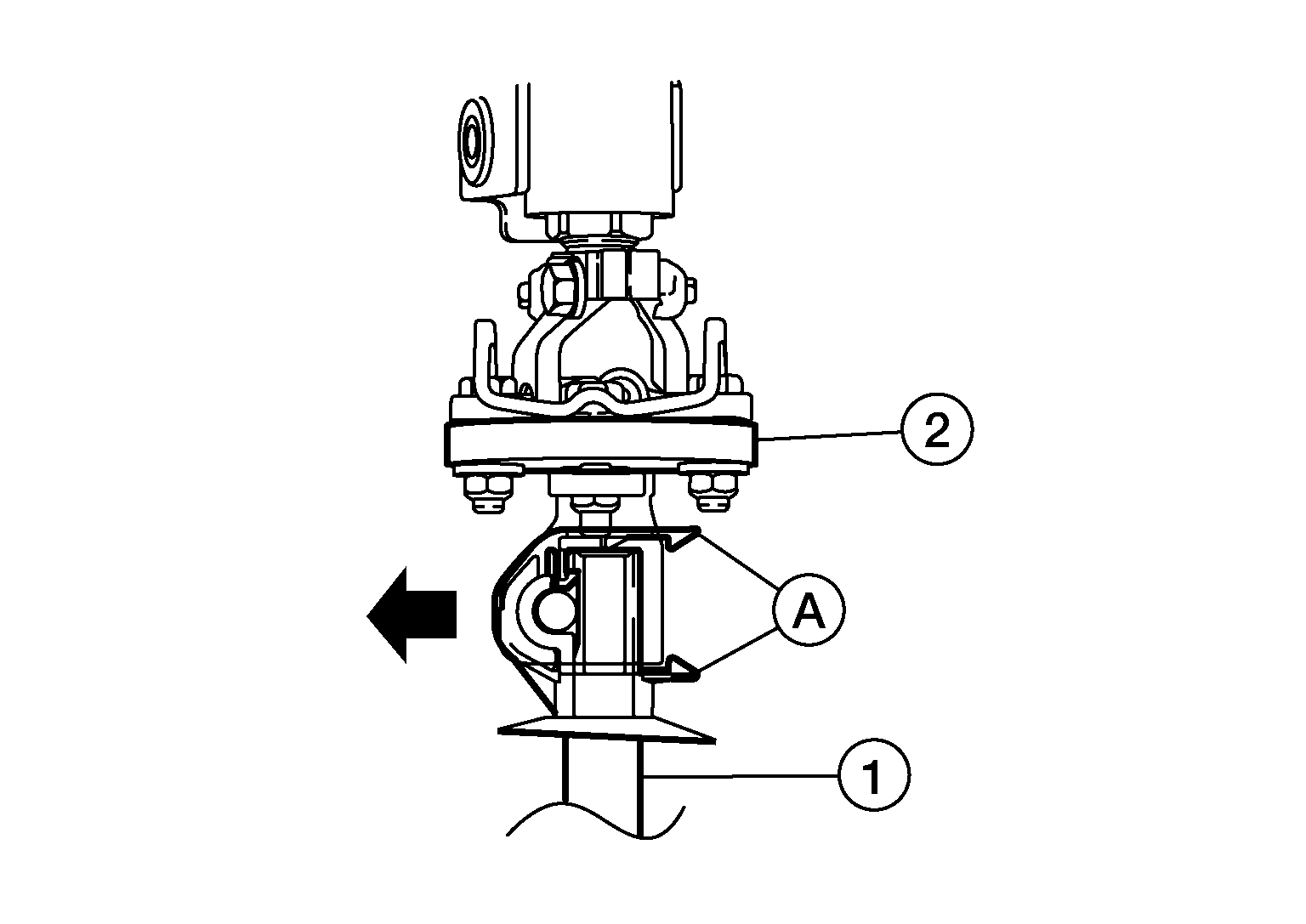

  3. Release collar lock tabs (A), then separate intermediate shaft (1) from steering column joint (2) in direction shown (SYMBOL ).
    GNSALGIA0269Z-269Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove collar (A) from intermediate shaft (1).
    GNSAWGIA0410Z-410Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: If collar is damaged, collar must be replaced
  5. Remove front fender protector (LH). Refer to Removal and Installation - Front Fender Protector .
  6. Remove nut and pinch bolt from intermediate shaft lower joint.

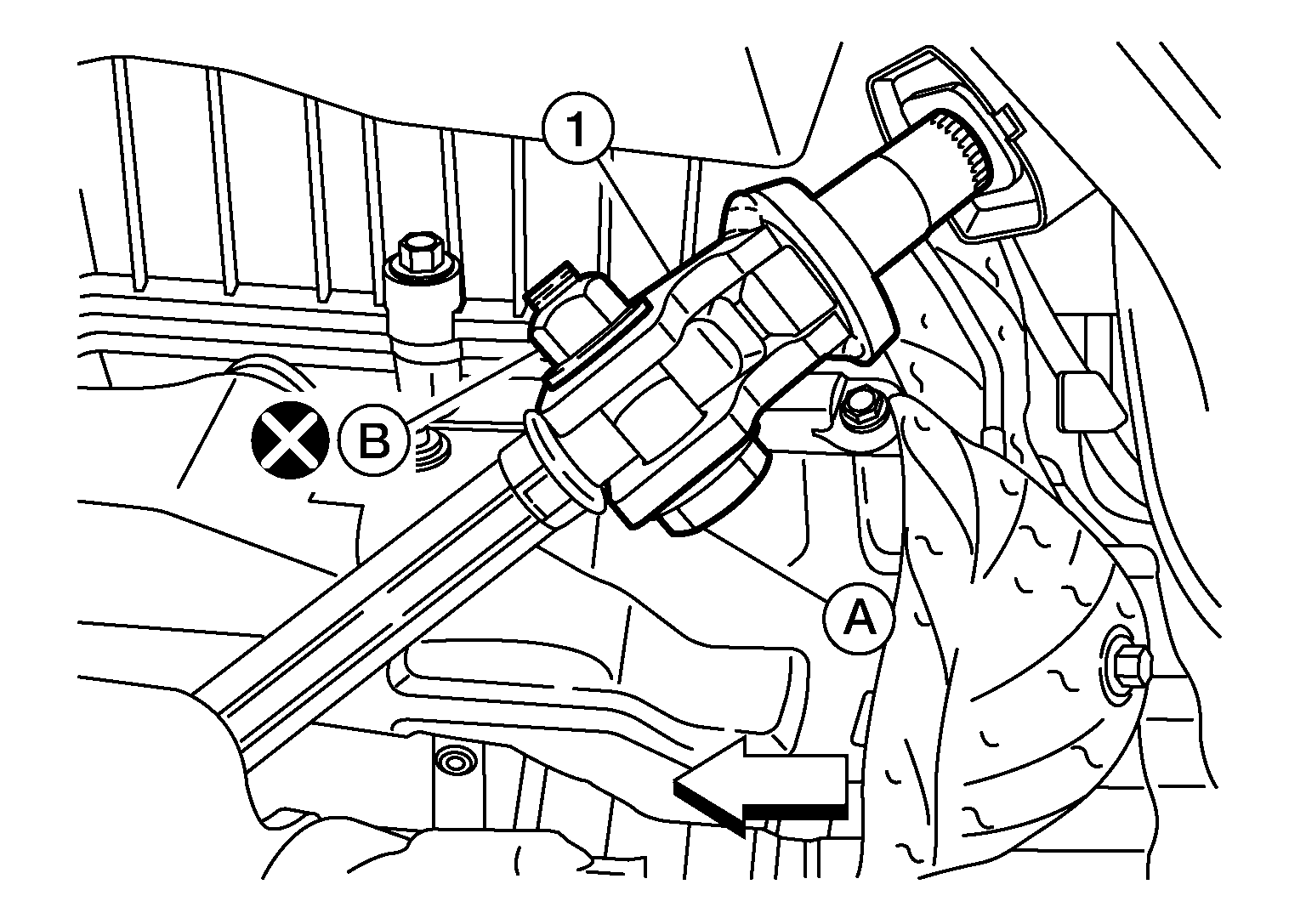

    • For XD Models, remove nut (B) and pinch bolt (A) from intermediate shaft (1).
      GNSALGIA0280Z-280Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse nut.

      SYMBOL

      : Front

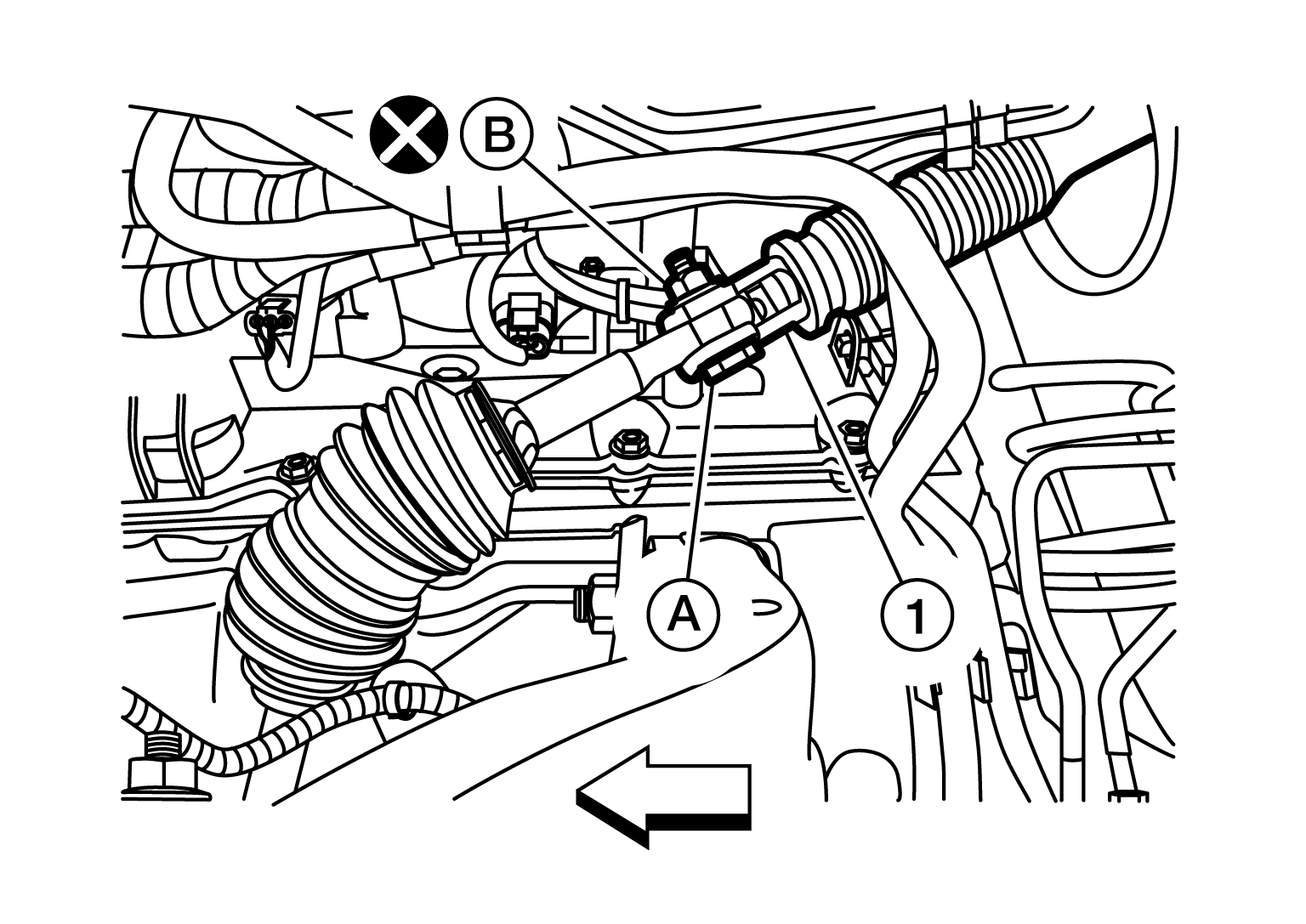

    • For Non-XD models, remove nut (B) and pinch bolt (A) from intermediate shaft (1).
      GNSAWGIA0511Z-511Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse nut.

      SYMBOL

      : Front
  7. Separate intermediate shaft from lower joint and remove from vehicle.
    CAUTION: Do not damage hole cover during removal. If hole cover is damaged, it must be replaced.
