Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Refer to component parts location illustration for hydraulic line removal. Refer to Exploded View .

CAUTION:

Do not reuse copper sealing washers or o-rings.

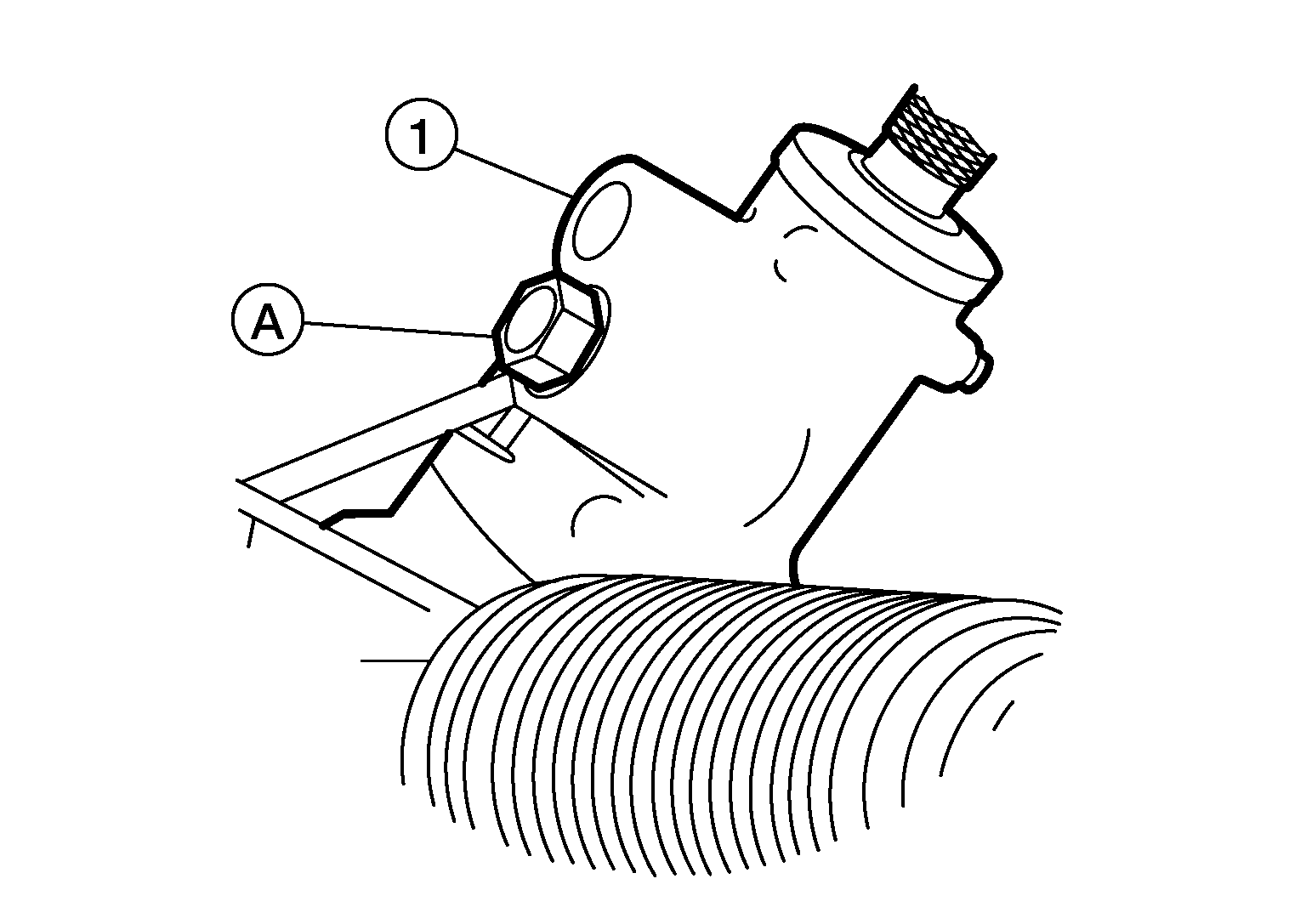

For Non-XD models, do not loosen steering gear (1) check valve insert (A). Hold in place while loosening high pressure pipe fitting.

Courtesy of NISSAN NORTH AMERICA, INC.
