Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Verify that collar (A) is installed correctly onto intermediate shaft (1).

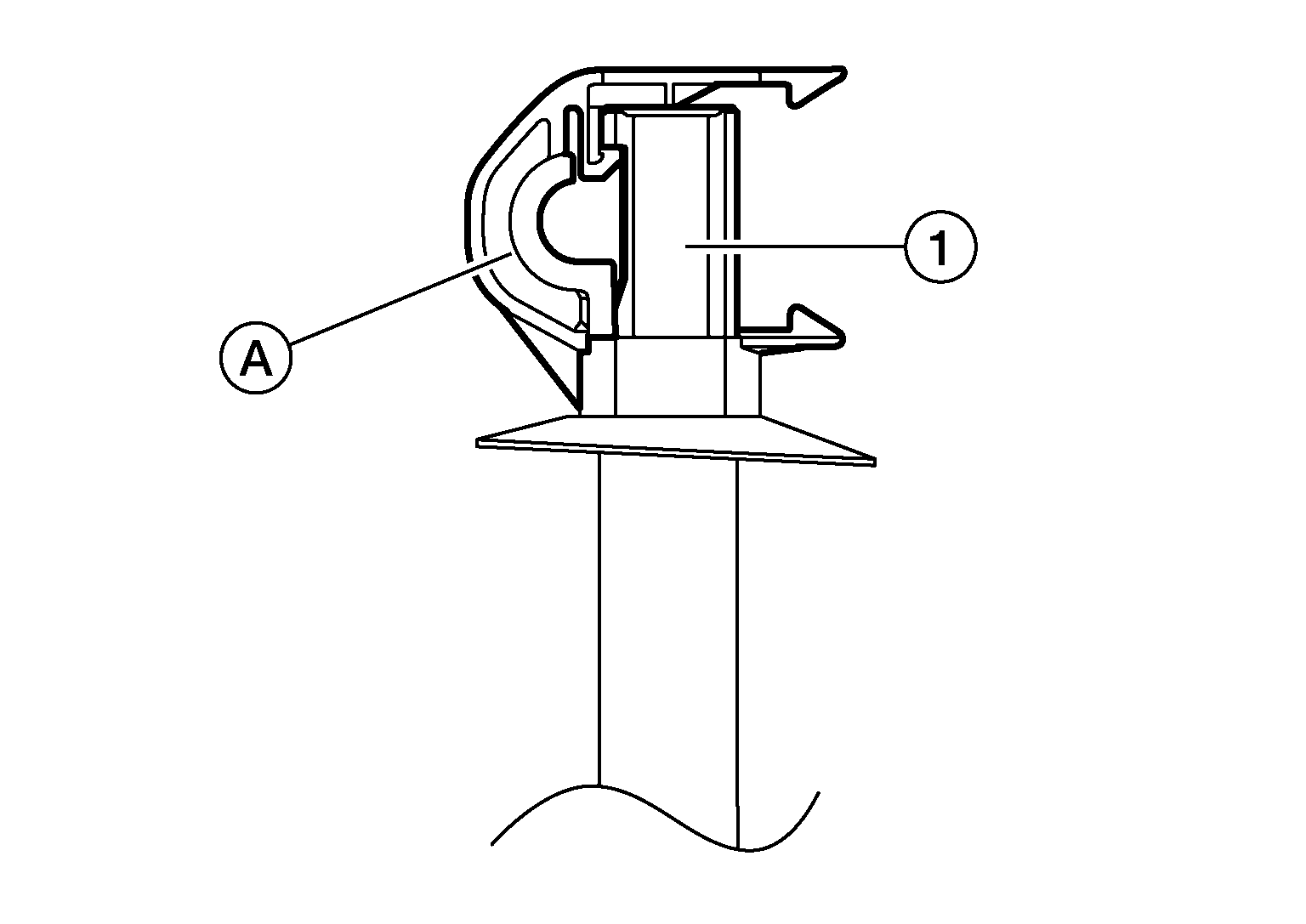

GNSAWGIA0410Z-410Courtesy of NISSAN NORTH AMERICA, INC.
  1. Install pinch bolt (B) and nut (A) into steering column joint finger-tight, then torque to specification. Pinch bolt is directional. Refer to Exploded View .

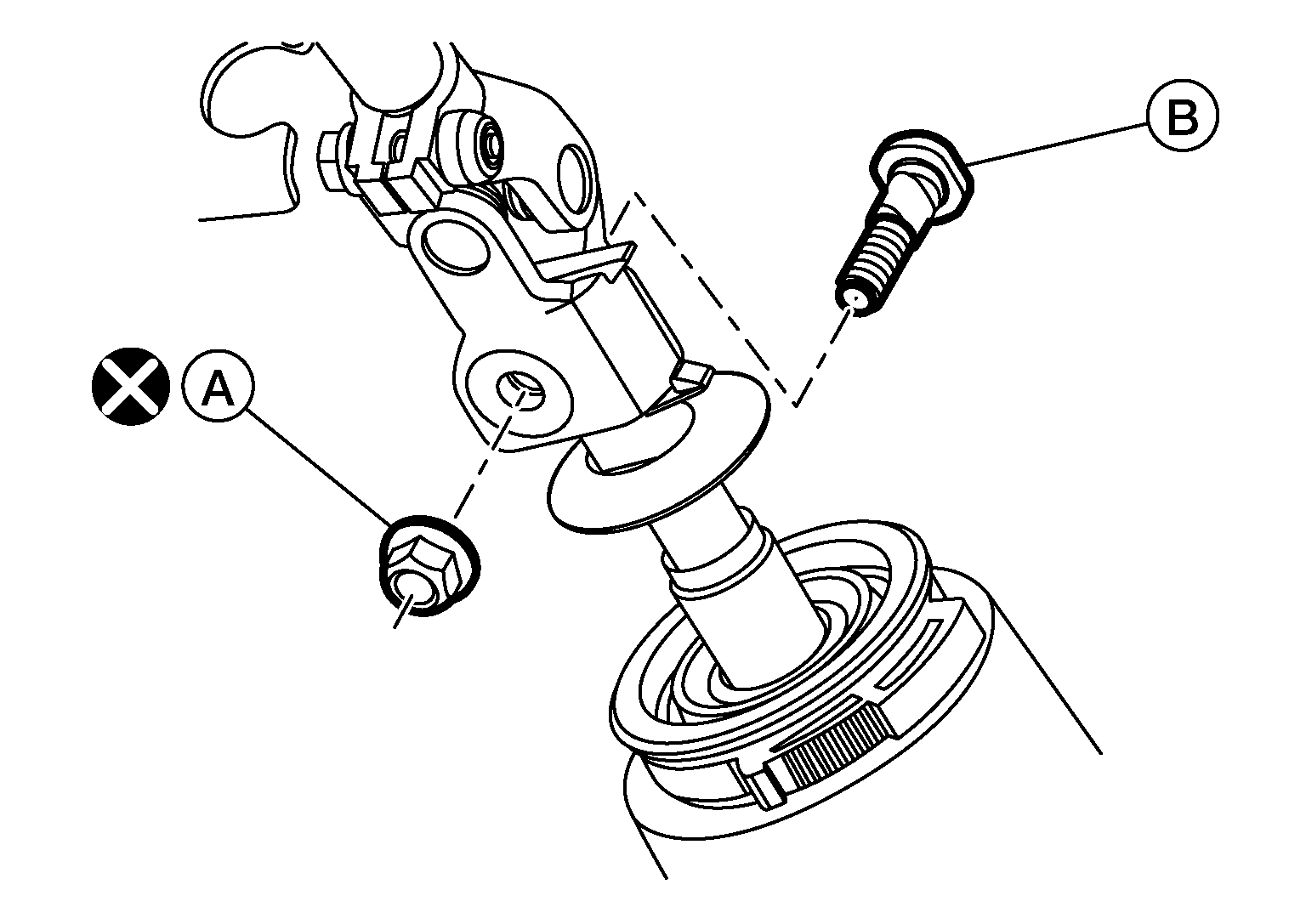

    GNSAWGIA0423Z-423Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse nut.
  2. Check that there is no clearance (A) between intermediate shaft (1) and steering column joint (2) and between intermediate shaft and pinch bolt (3).

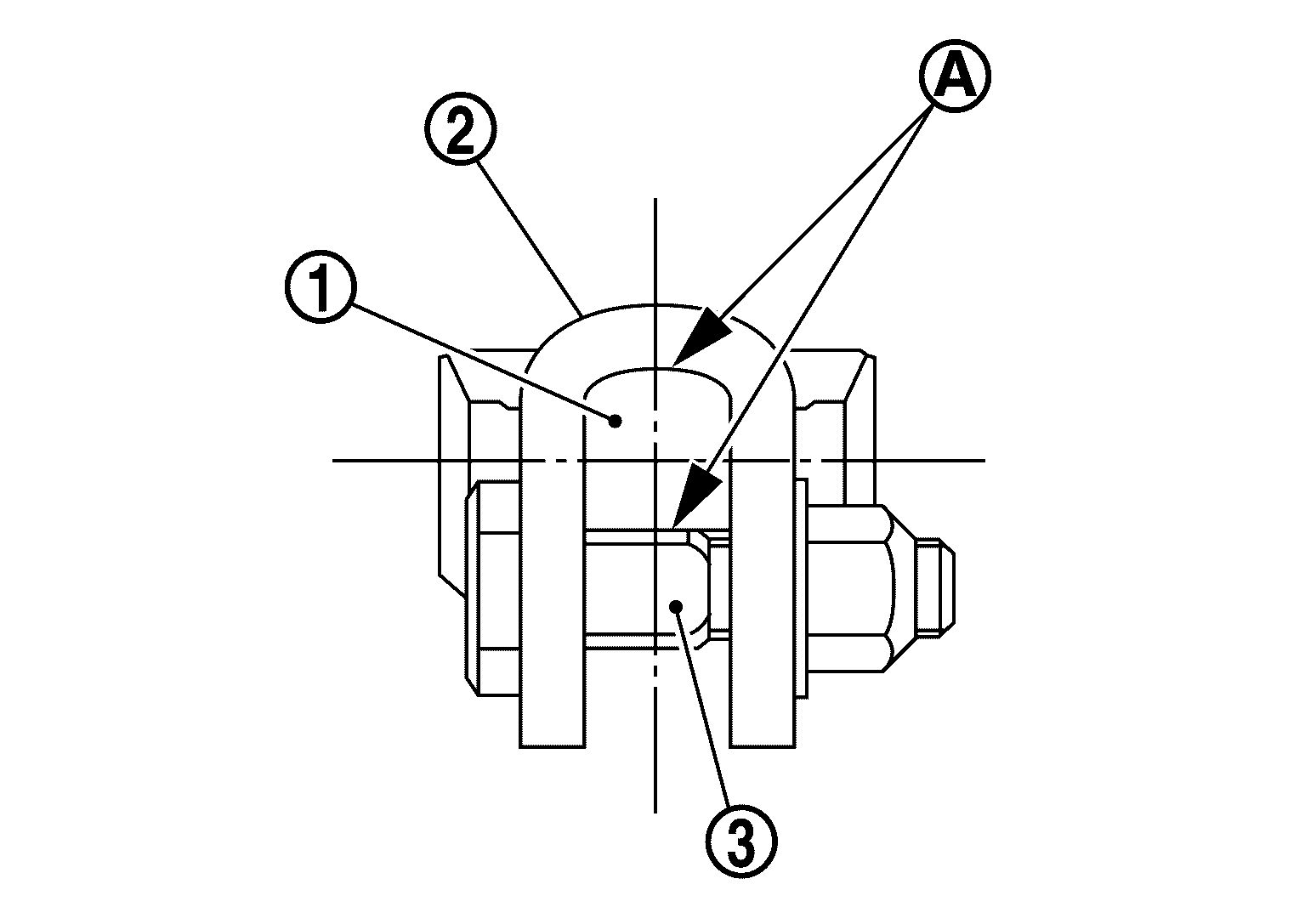

    GNSJPGIA0157Z-157Courtesy of NISSAN NORTH AMERICA, INC.
  3. Installation of the remaining components is in the reverse order of removal.
  4. After Installation:
    • Turn steering wheel to make sure it moves smoothly while turning to left and right stops.
    • Make sure number of turns are the same from straight-forward position to left and right stops.
    • Make sure steering wheel is in a neutral position when driving straight ahead.
    • Adjust neutral position of steering angle sensor. Refer to Description .
