Power Steering Fluid: Inspection

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

FLUID LEVEL

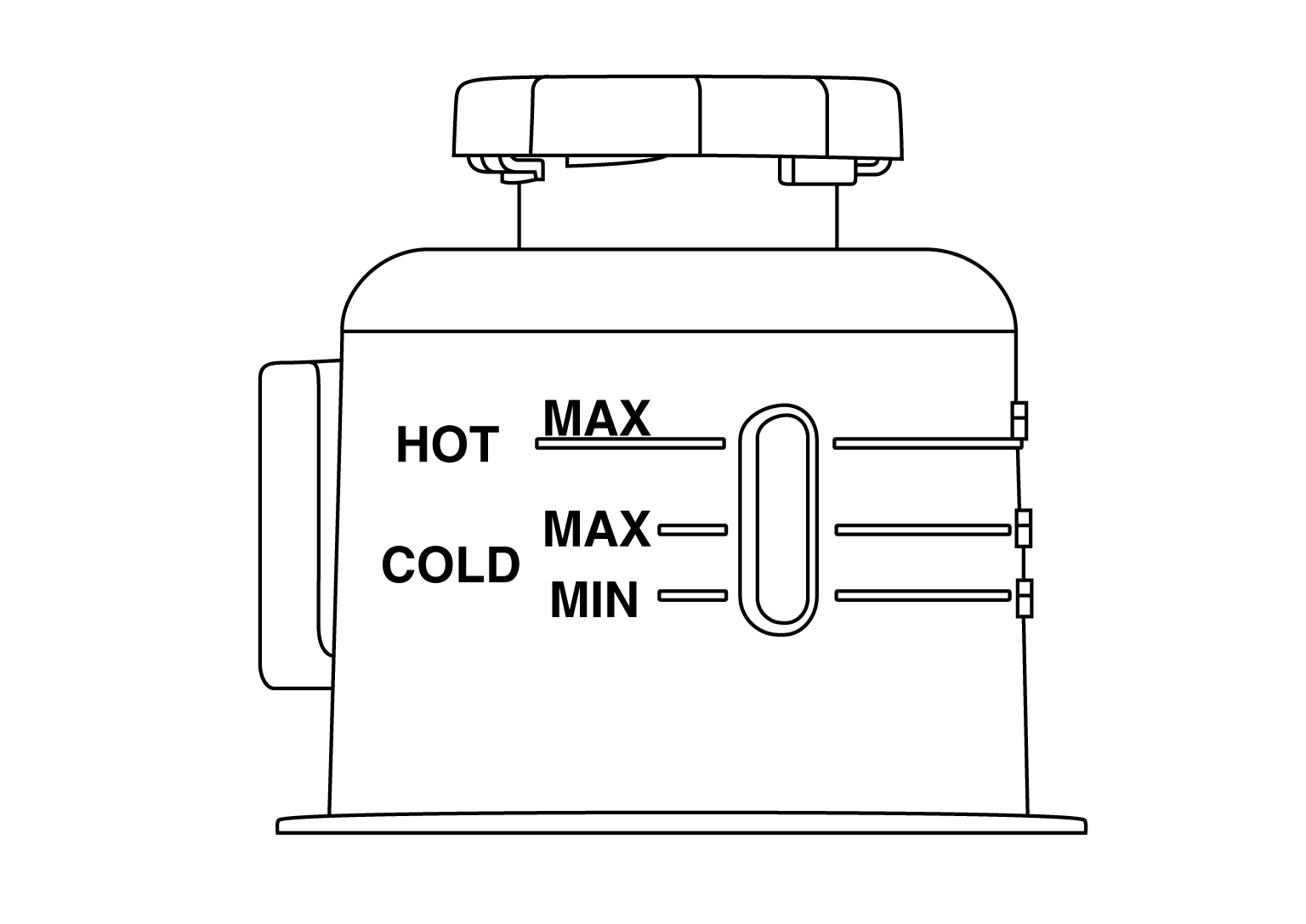

Verify proper power steering fluid level. Whenever possible, check fluid level when cold.

Courtesy of NISSAN NORTH AMERICA, INC.

Check power steering fluid level with engine stopped.
Fluid level should be as follows:
- With cold power steering fluid 0° - 30°C (32° - 86°F), level should be between COLD MIN and COLD MAX lines. If fluid is at or below the COLD MIN line, add fluid to COLD MAX line.
- With hot power steering fluid 50° - 80°C (122° - 176°F), level should be at HOT MAX line. If level is below the HOT MAX line, add fluid to HOT MAX line.
  CAUTION:
  - Do not overfill.
  - Do not reuse power steering fluid.
  - Recommended power steering fluid is Genuine NISSAN PSF II or equivalent. Refer to VK56VD Gasoline Engine : Fluids and Lubricants (VK56VD) or Cummins 5.0L Engine : Fluids and Lubricants (Cummins 5.0L).
